Park Brake Cable Replacement - Rear

Park Brake Cable Replacement - Rear

Removal Procedure




1. Disable the park brake automatic adjuster.
2. Raise and support the vehicle. Refer to Vehicle Lifting.
3. Remove the RH muffler.
4. Disconnect the rear park brake cable at the retainer and equalizer.

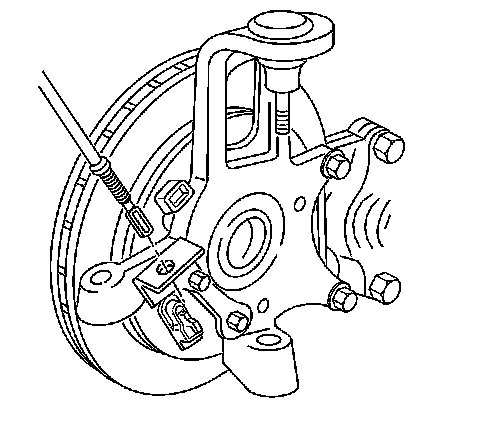

5. Remove the rear park brake cable from the rear suspension mounting bracket.
6. Remove the rear park brake cable retainer nut.
7. Remove the rear park brake cable from the vehicle.

Installation Procedure

1. Install the rear parking brake cable to the vehicle.
2. Install the rear parking brake cable retainer nut.




3. Connect the rear park brake cable to the rear suspension mounting bracket.




4. Connect the rear park brake cable to the retainer and equalizer.
5. Install the RH muffler.
6. Lower the vehicle.
7. Enable park brake automatic adjuster.
