Radio Replacement

Radio Replacement

Removal Procedure




1. Remove the cover from the instrument panel (I/P) electrical center.
2. Remove the RDO/CD MiniFuse(R) #5 from the I/P electrical center.
3. Remove the I/P accessory trim plate.
4. Remove the HVAC control module.

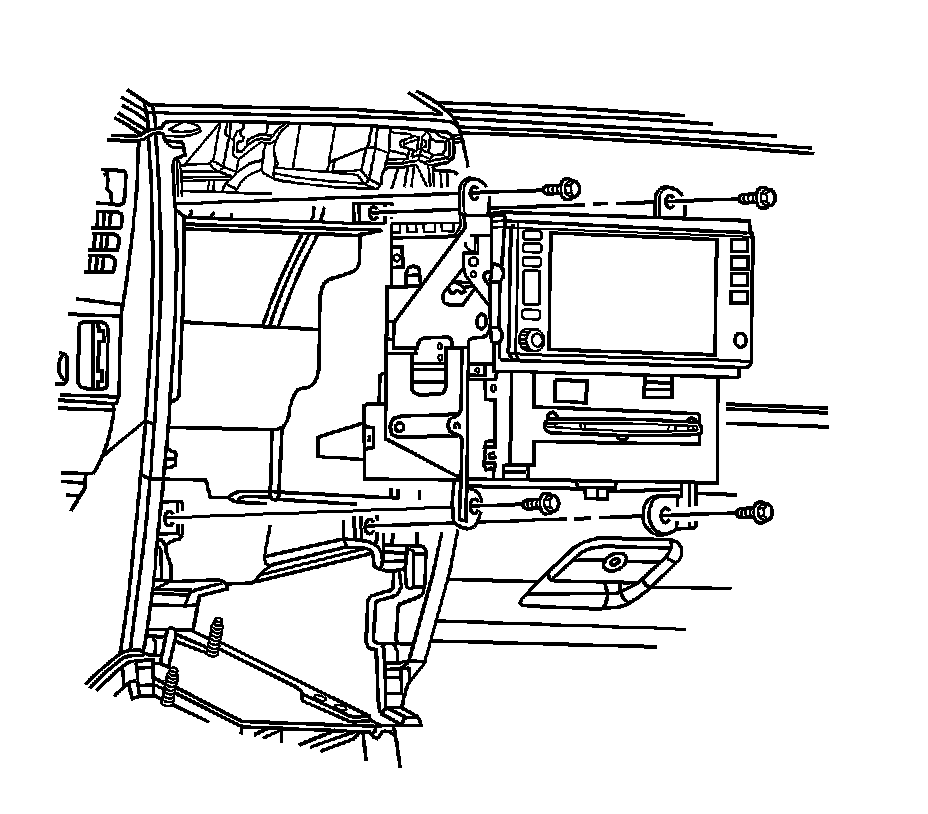

5. Remove the screws retaining the radio control to the I/P center support bracket.
6. Begin to remove the radio control from the center support bracket enough to access the connectors at rear of the radio control.
7. Disconnect the electrical/audio and coaxial cable connectors from the radio control.
8. Remove the radio control.

Installation Procedure

1. Connect the electrical/audio and coaxial cable connectors to the radio control.
2. Install the radio control into position in the I/P center support bracket.
Align the radio control locator tab into the center support bracket locator hole.






Notice: Refer to Fastener Notice.

3. Install the radio control retaining screws.

Tighten the screws to 2.5 N.m (22 lb in).

4. Install the HVAC control module.
5. Install the I/P accessory trim plate.
6. Install the RDO/CD MiniFuse(R) #5 to the I/P electrical center.
7. Install the cover to the I/P electrical center.
8. Refer to Programming and Relearning.Programming and Relearning
