Engine Mount Replacement - Left

Engine Mount Replacement - Left Side

Removal Procedure




1. Remove the front suspension crossmember.

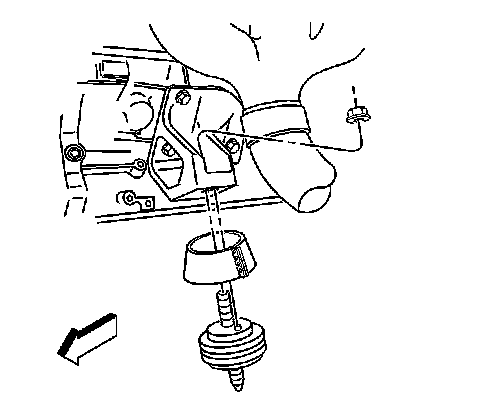

2. Remove the engine mount-to-engine mount bracket nut.
3. Remove the engine mount.
4. Remove the engine mount heat shield from the engine mount, if necessary.

Installation Procedure




1. Install the engine mount heat shield to the engine mount, if necessary.
2. Install the engine mount.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the engine mount-to-engine mount bracket nut.

Tighten the nut to 65 N.m (48 lb ft).

4. Install the front suspension crossmember.
