Engine Mount Bracket Replacement - Right

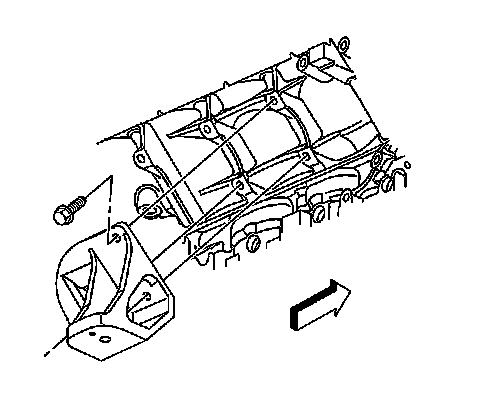

Engine Mount Bracket Replacement - Right Side

Removal Procedure




1. Remove the right engine mount.
2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.

Installation Procedure




1. Install the engine mount bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount bracket bolts.

Tighten the engine mount bracket bolts to 50 N.m (37 lb ft).

3. Install the right engine mount.
