Engine Mount Bracket Replacement - Left



Engine Mount Bracket Replacement - Left Side

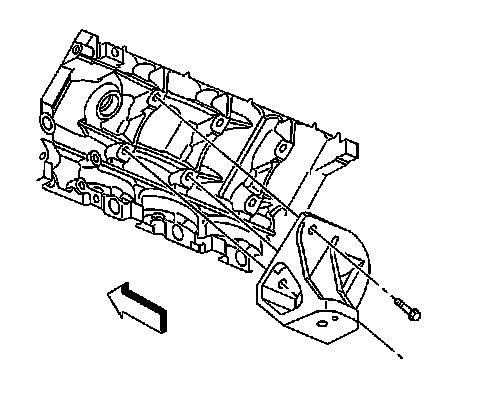

Removal Procedure




1. Remove the left engine mount.
2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.

Installation Procedure




1. Install the engine mount bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount bracket bolts.

Tighten the engine mount bracket bolts to 50 N.m (37 lb ft).

3. Install the left engine mount.
