Barometric Pressure Sensor
Barometric Pressure Sensor

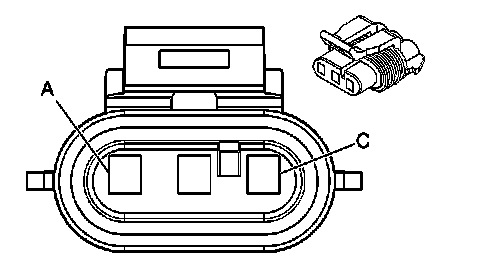

Engine Controls Connector End Views

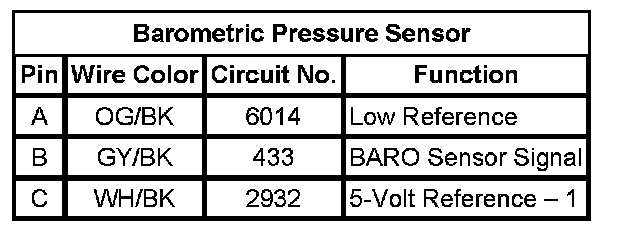

Barometric Pressure Sensor
