Home
>>
Chevrolet
>>
2006
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
Connector Views

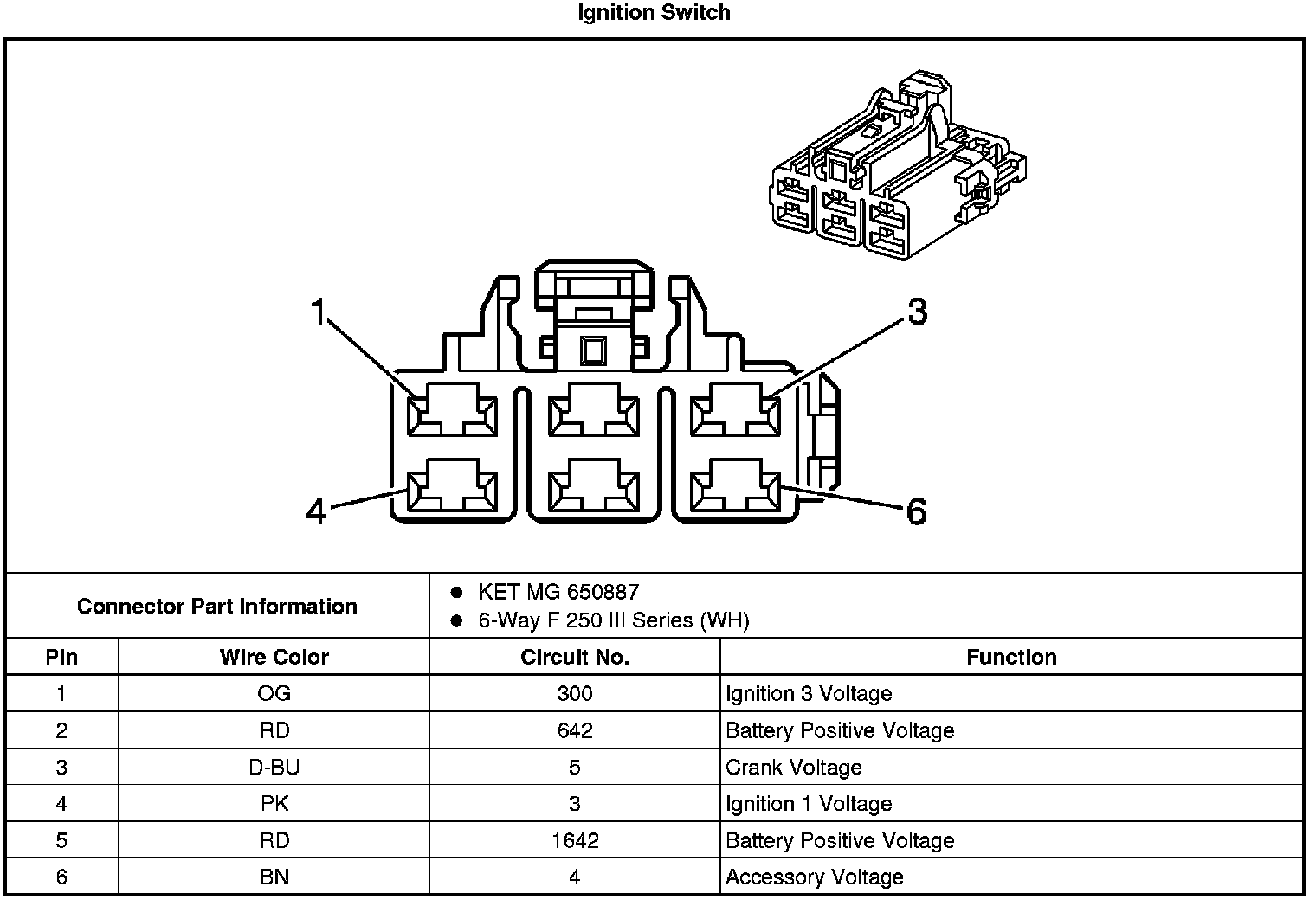

Power and Grounding Connector End Views
