Home
>>
Chevrolet
>>
2006
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Shift Interlock, A/T
>>

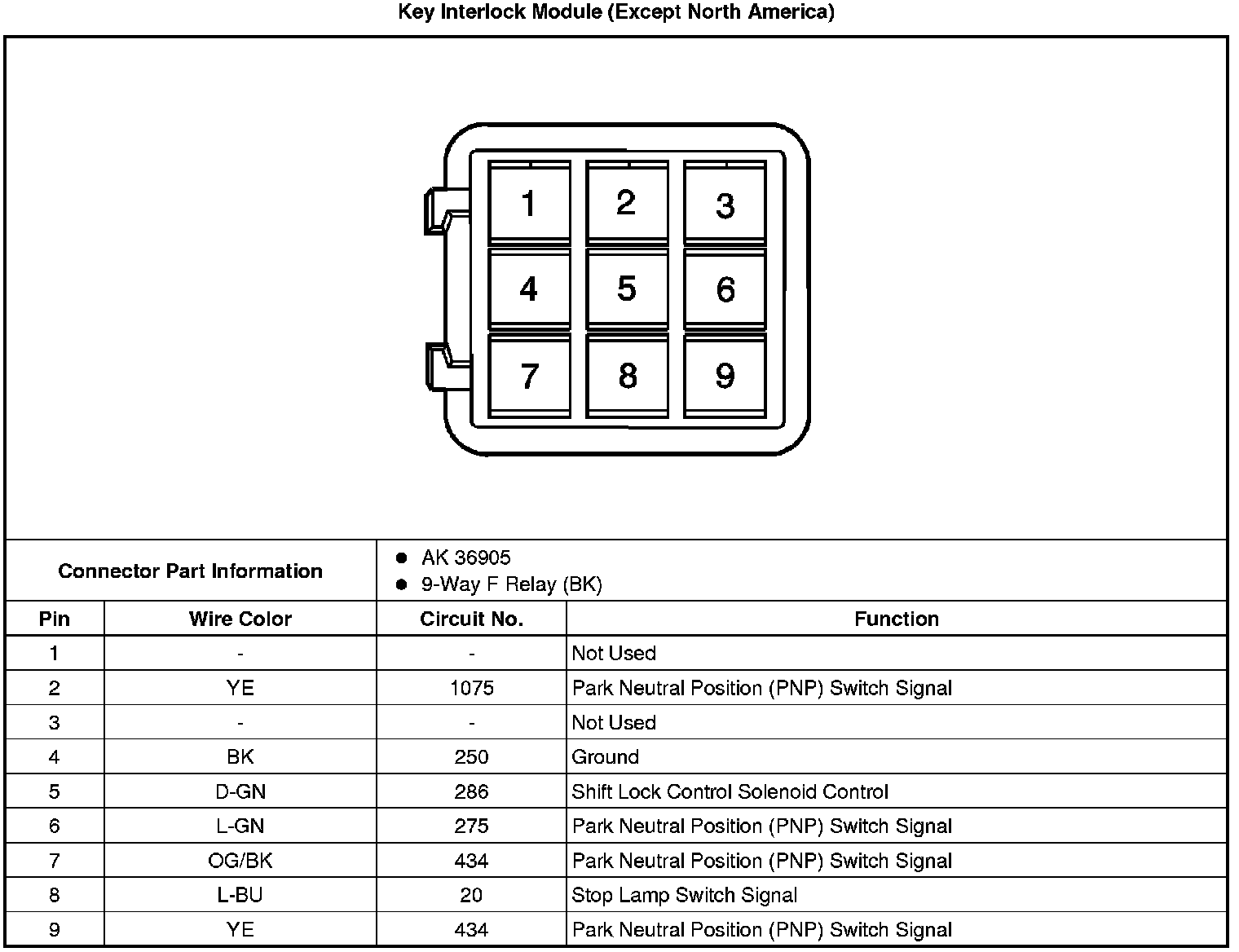

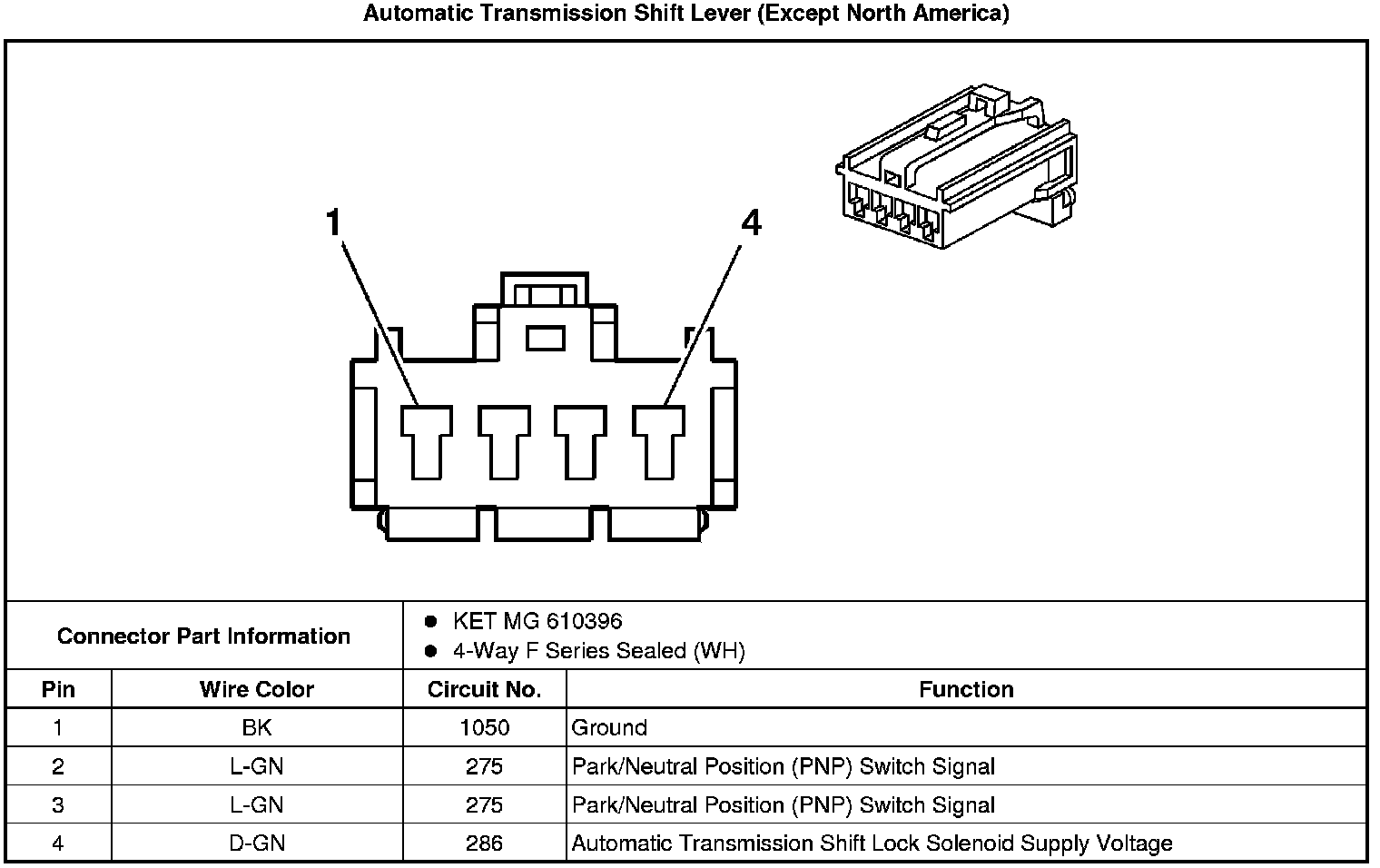

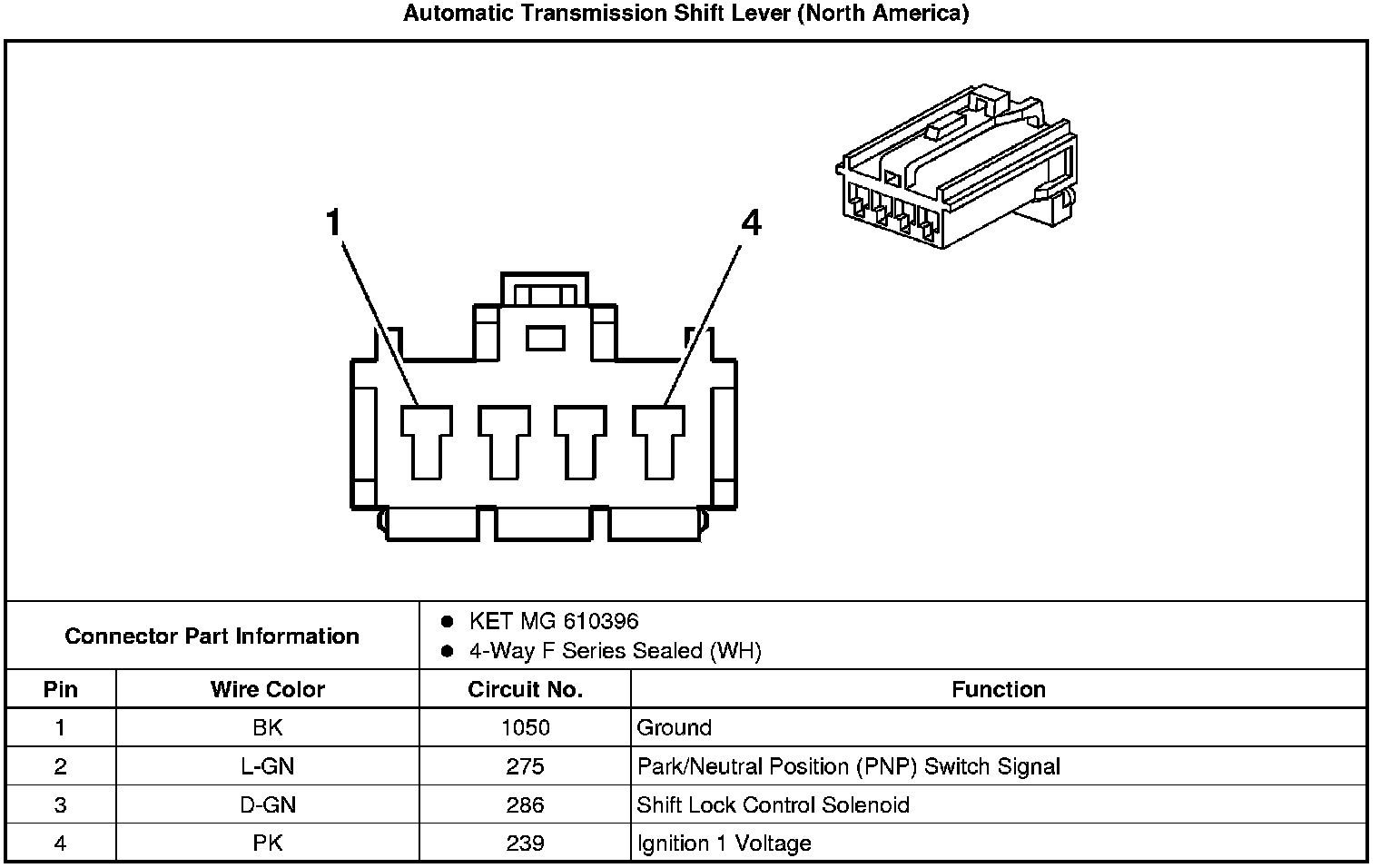

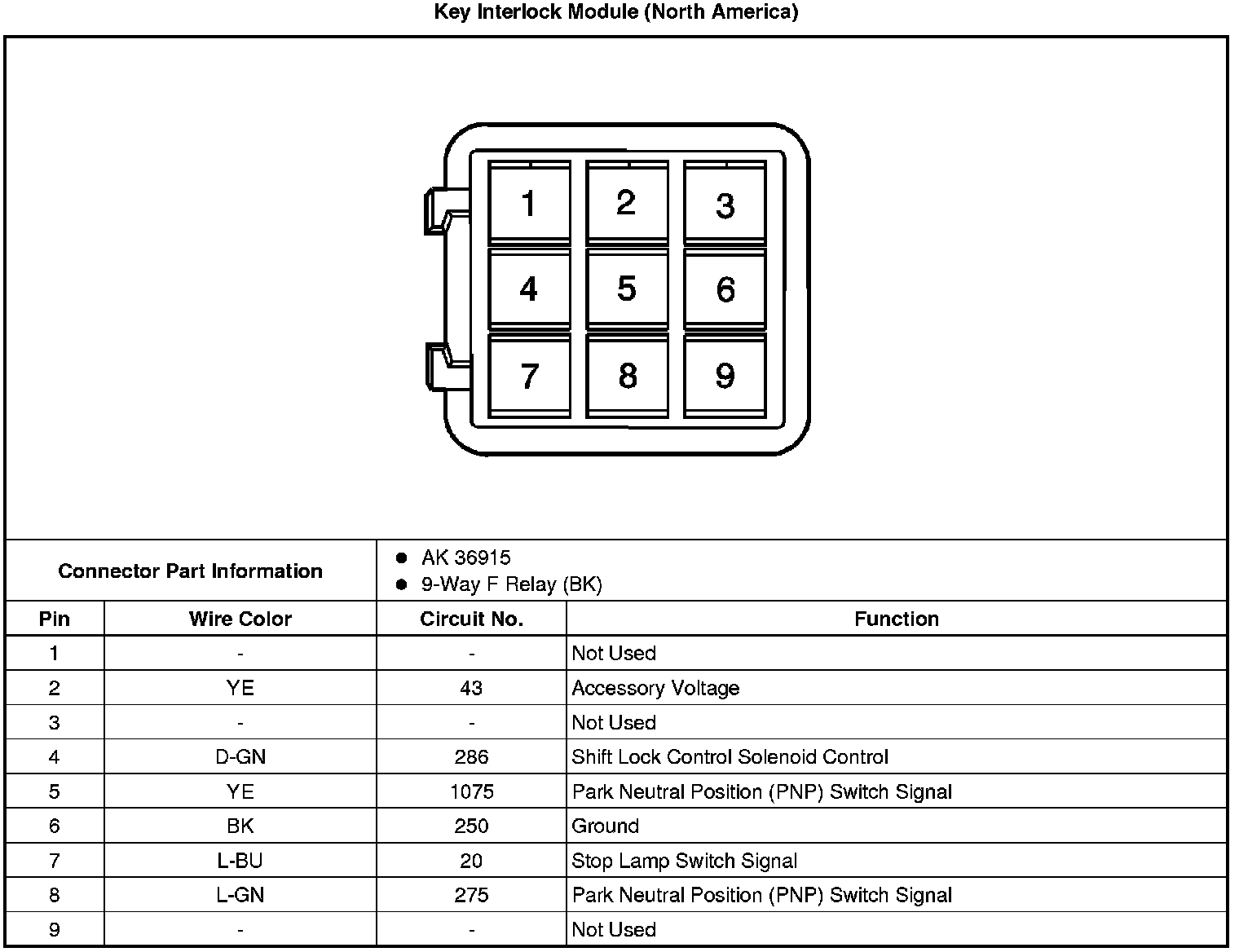

Automatic Transmission Shift Lock Control Connector End Views
Automatic Transmission Shift Lock Control Connector End Views
Automatic Transmission Shift Lock Control Connector End Views
