Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

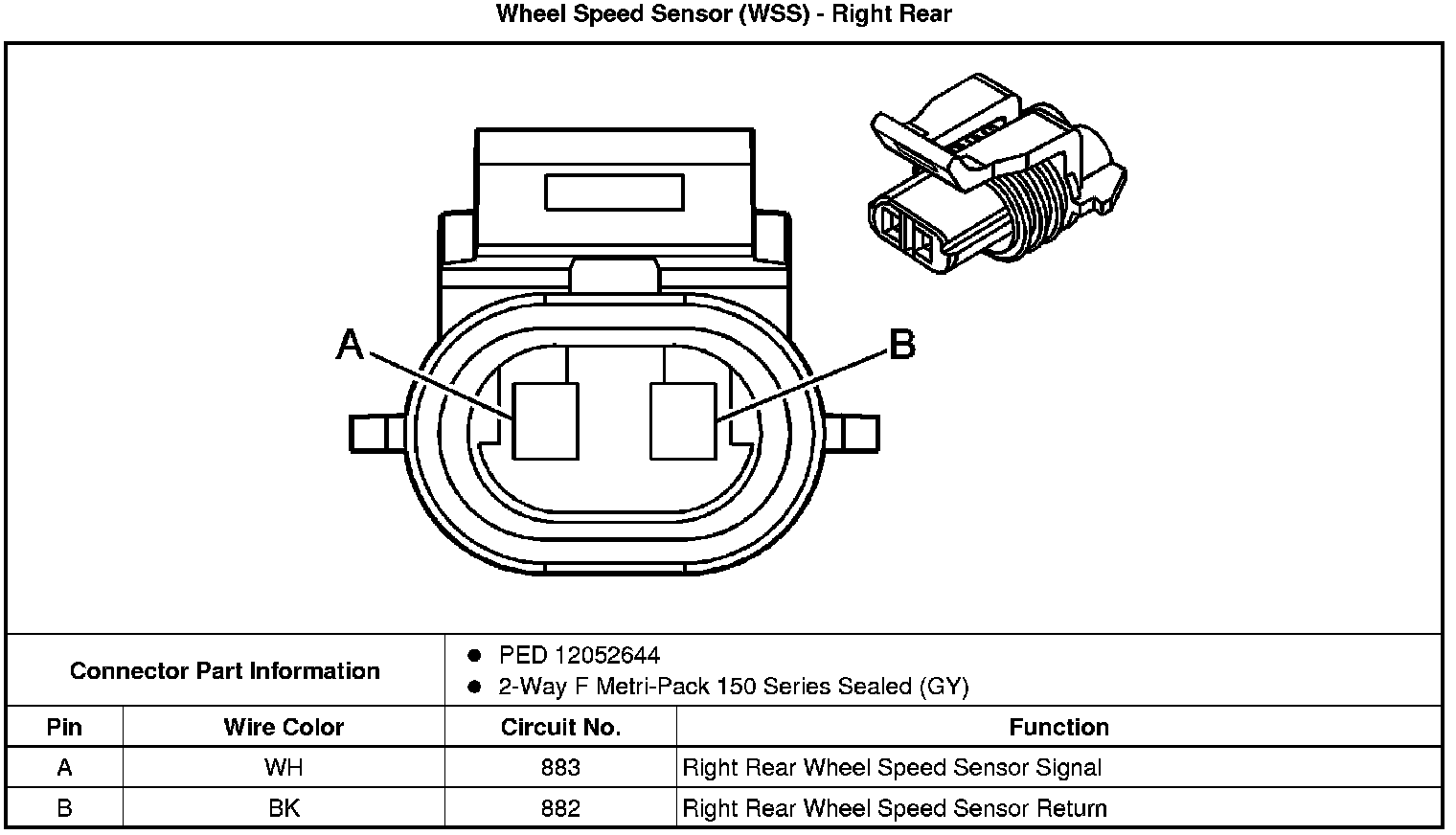

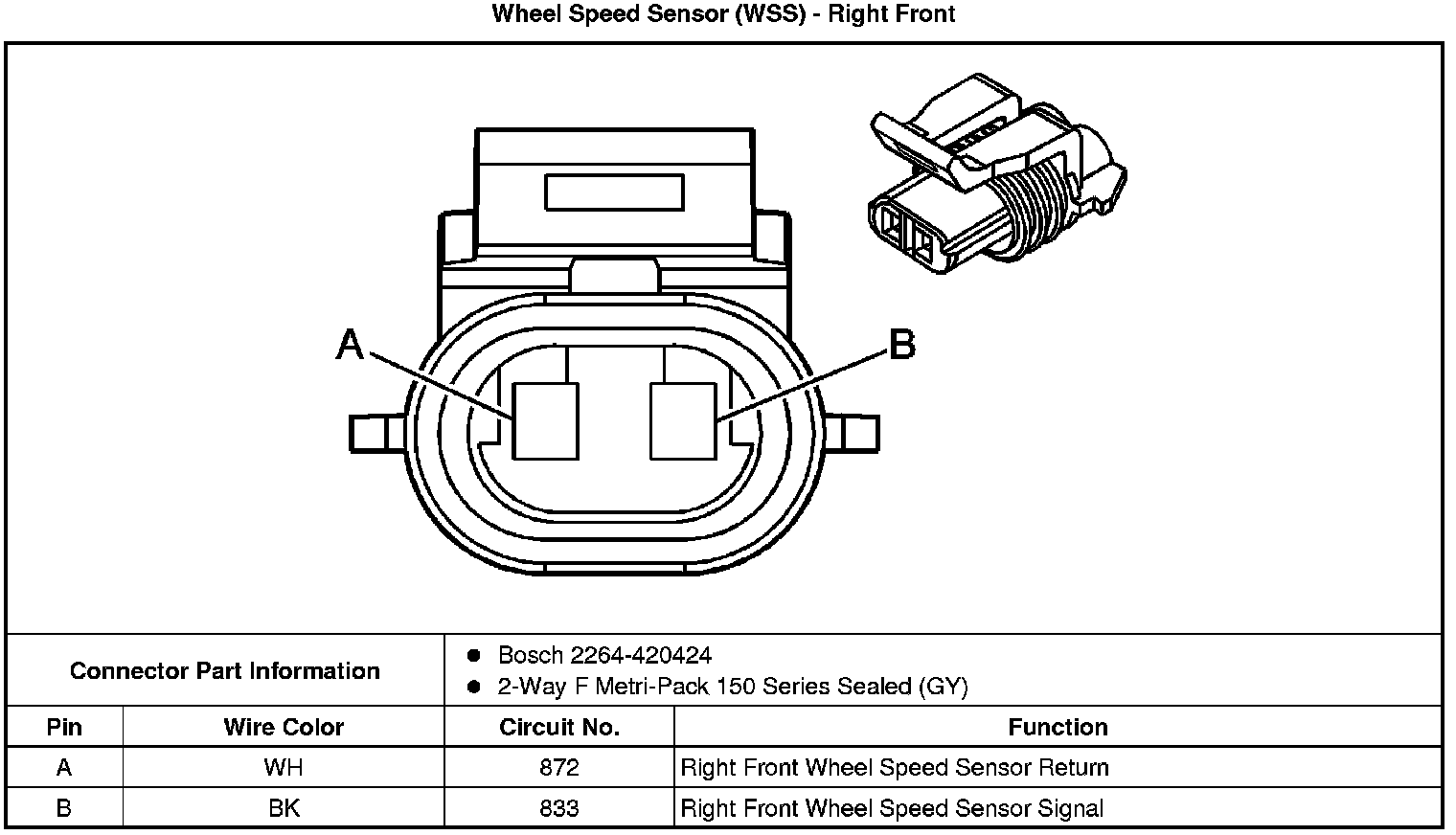

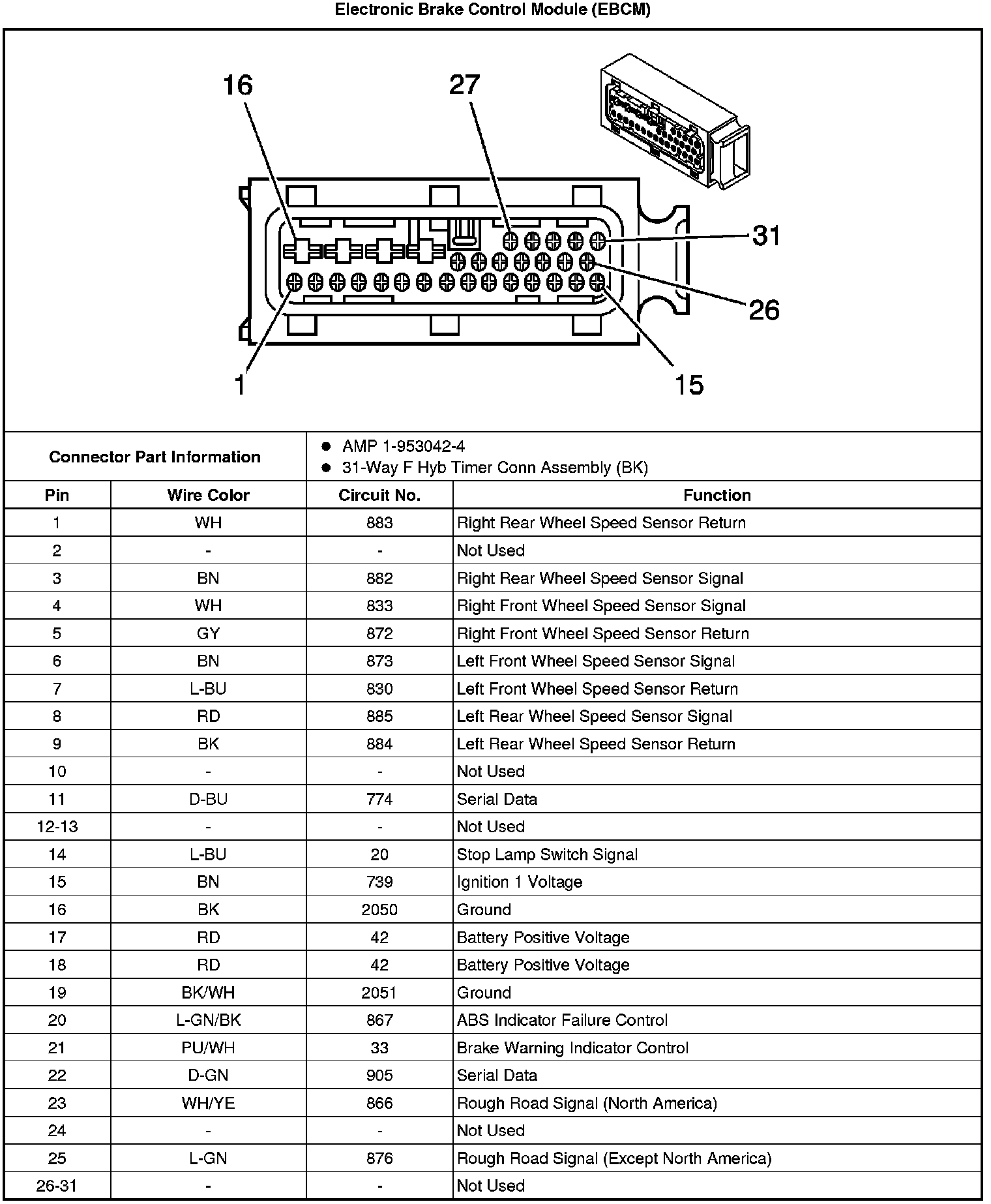

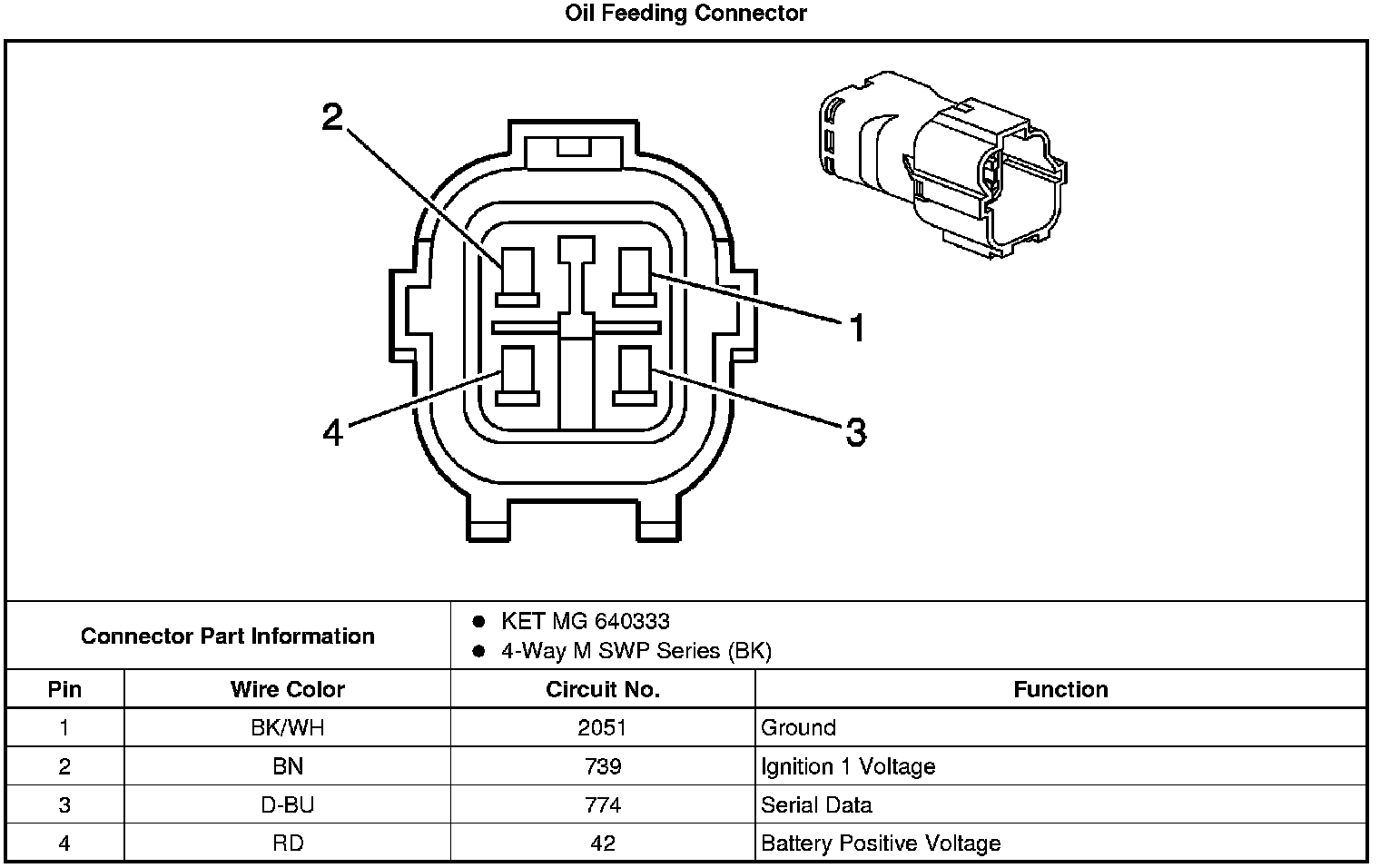

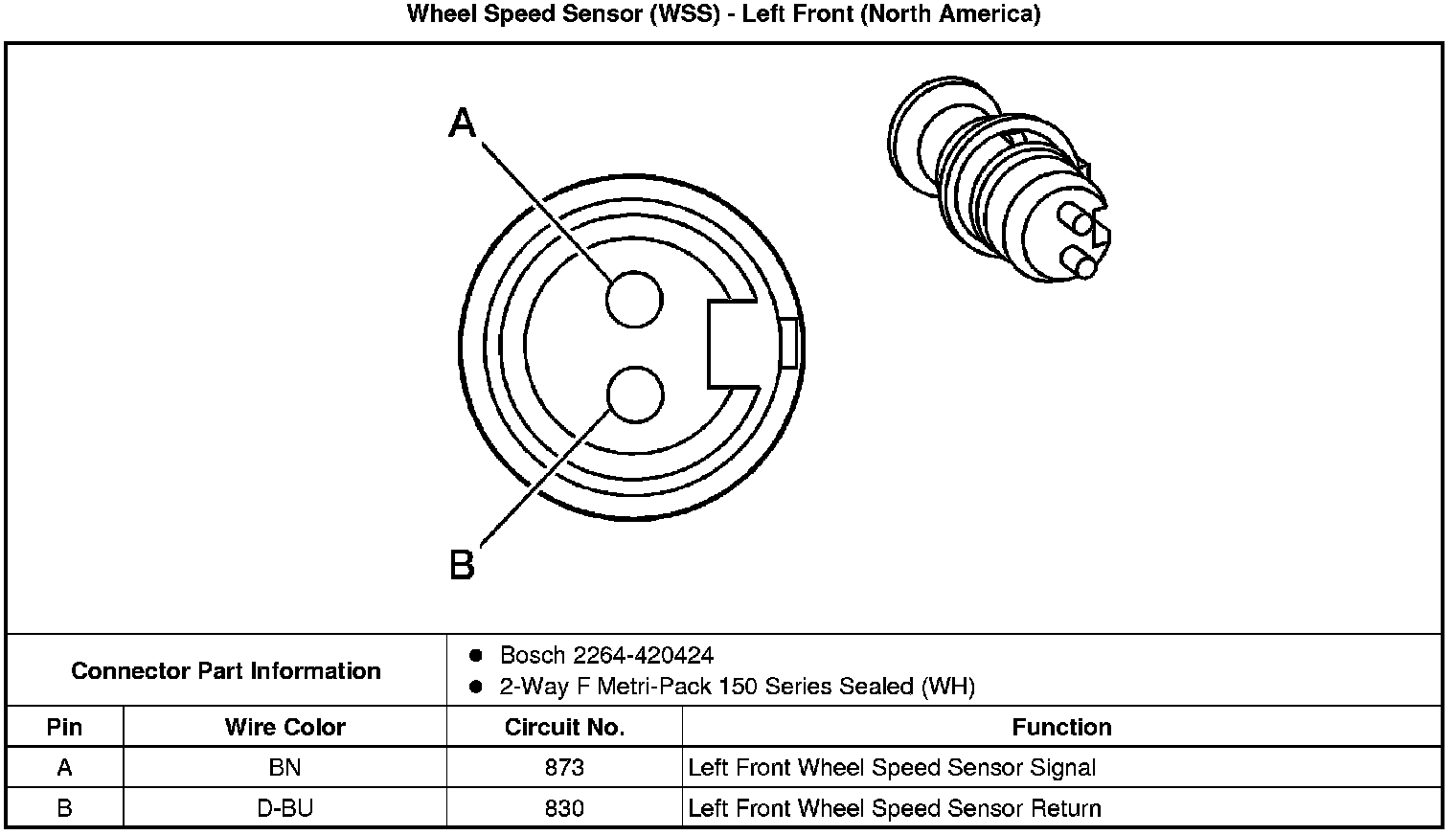

ABS Connector End Views
