Lighting and Horns: Locations

Lighting Systems Component Views

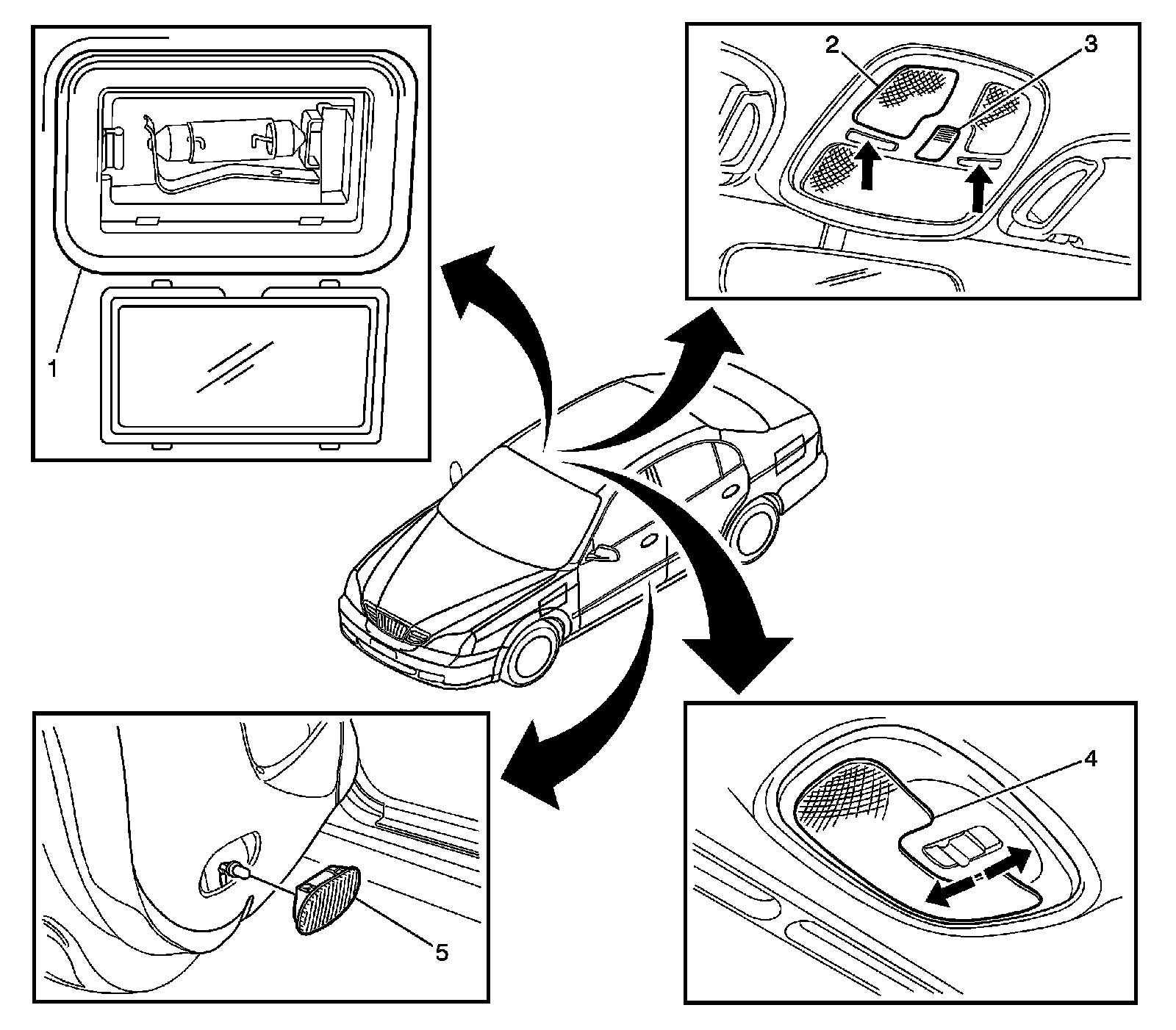

Interior Lighting




1 - Vanity Lamp
2 - Reading Lamp
3 - Sunroof Switch
4 - Dome Lamp
5 - Front Door Courtesy Lamp

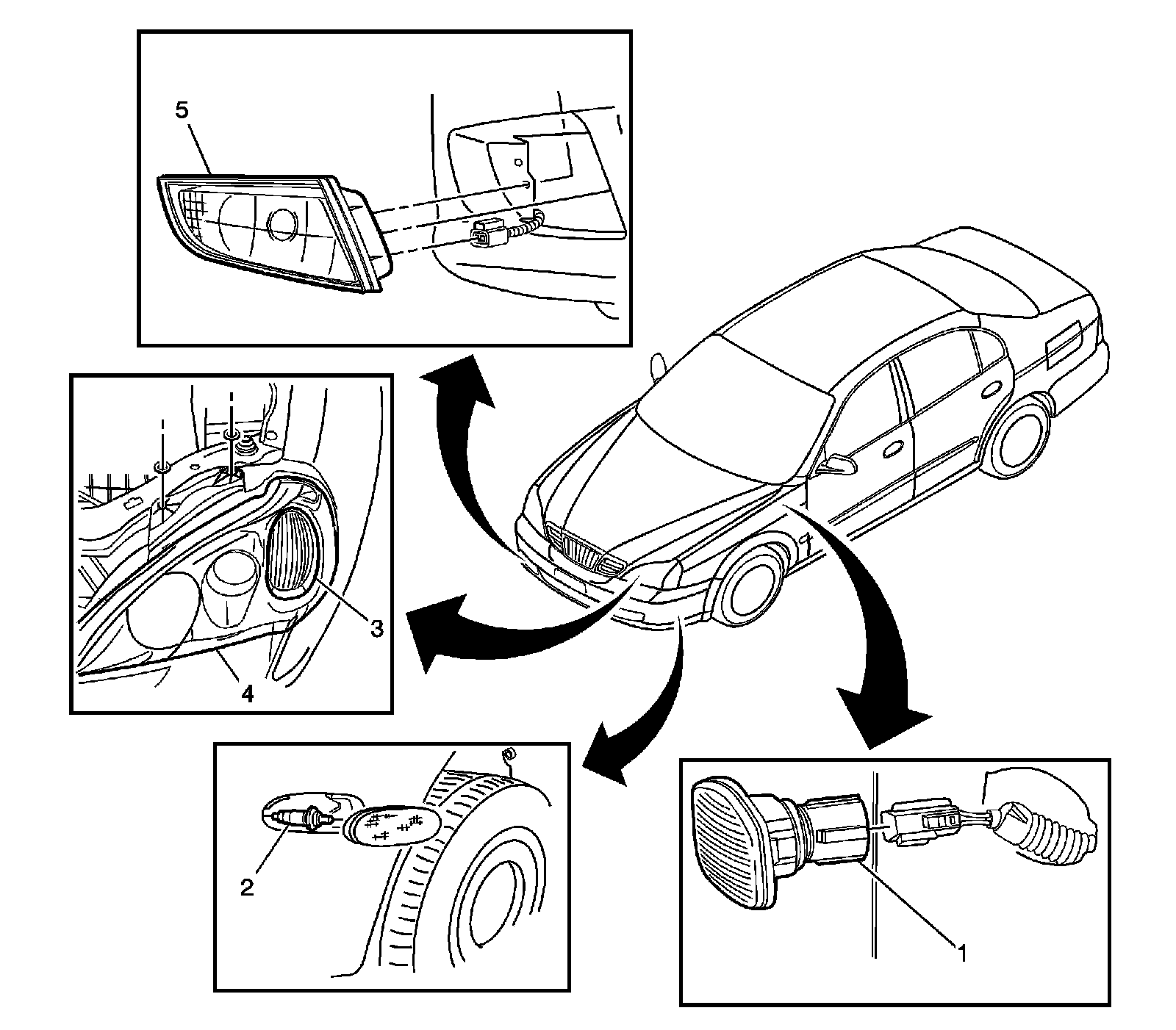

Front Exterior Lighting




1 - Repeater Lamp
2 - Side Marker Lamp
3 - Park/Turn Signal Lamp (North America)
3 - Turn Signal Lamp (Euro)
4 - Head Lamp
5 - Fog Lamp

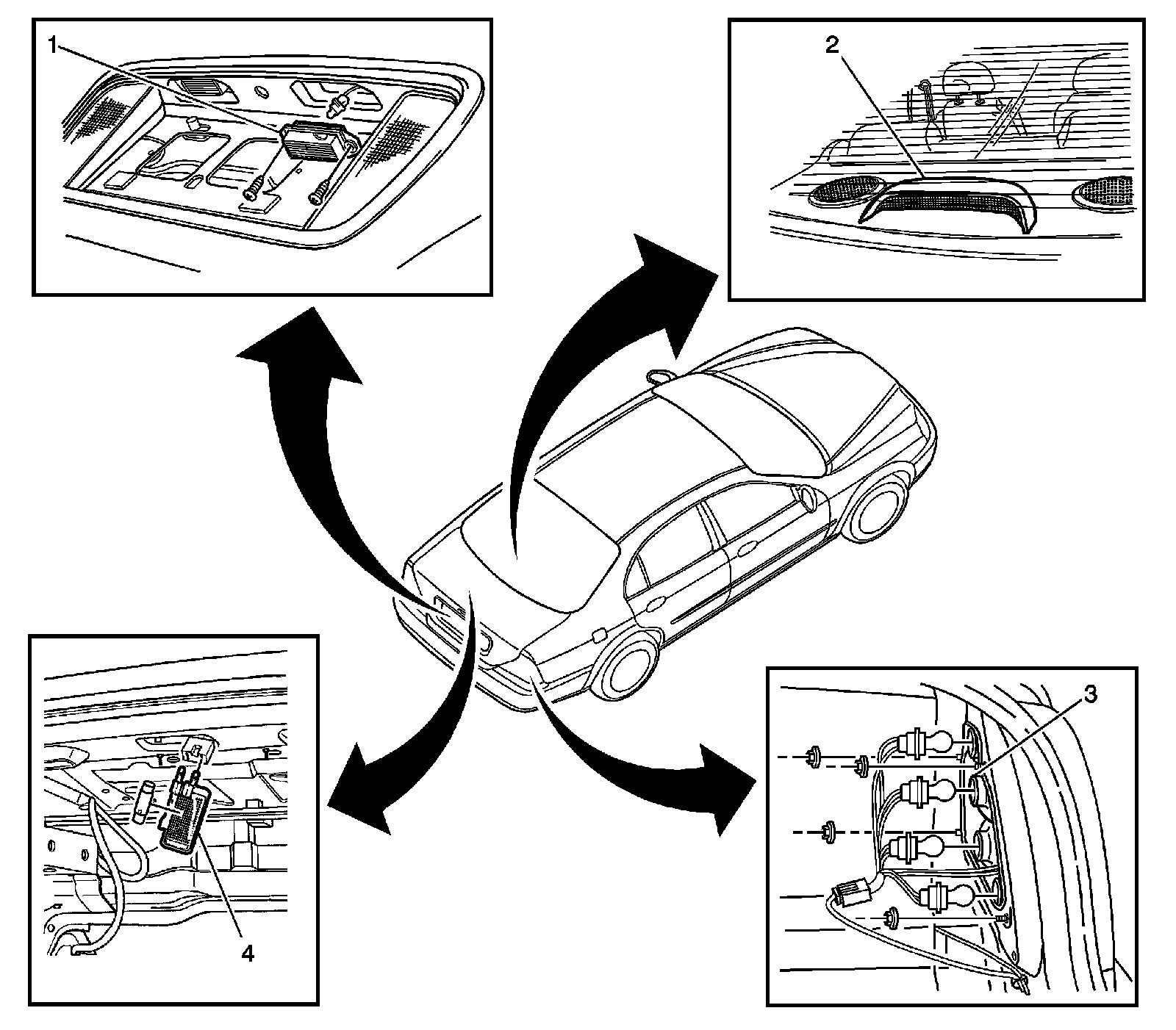

Tail Lamps, License Lamps and CHSML




1 - License Plate Lamp
2 - Center High Mounted Stop Lamp (CHMSL)
3 - Tail Lamp, Backup Lamp
4 - Rear Compartment Lamp

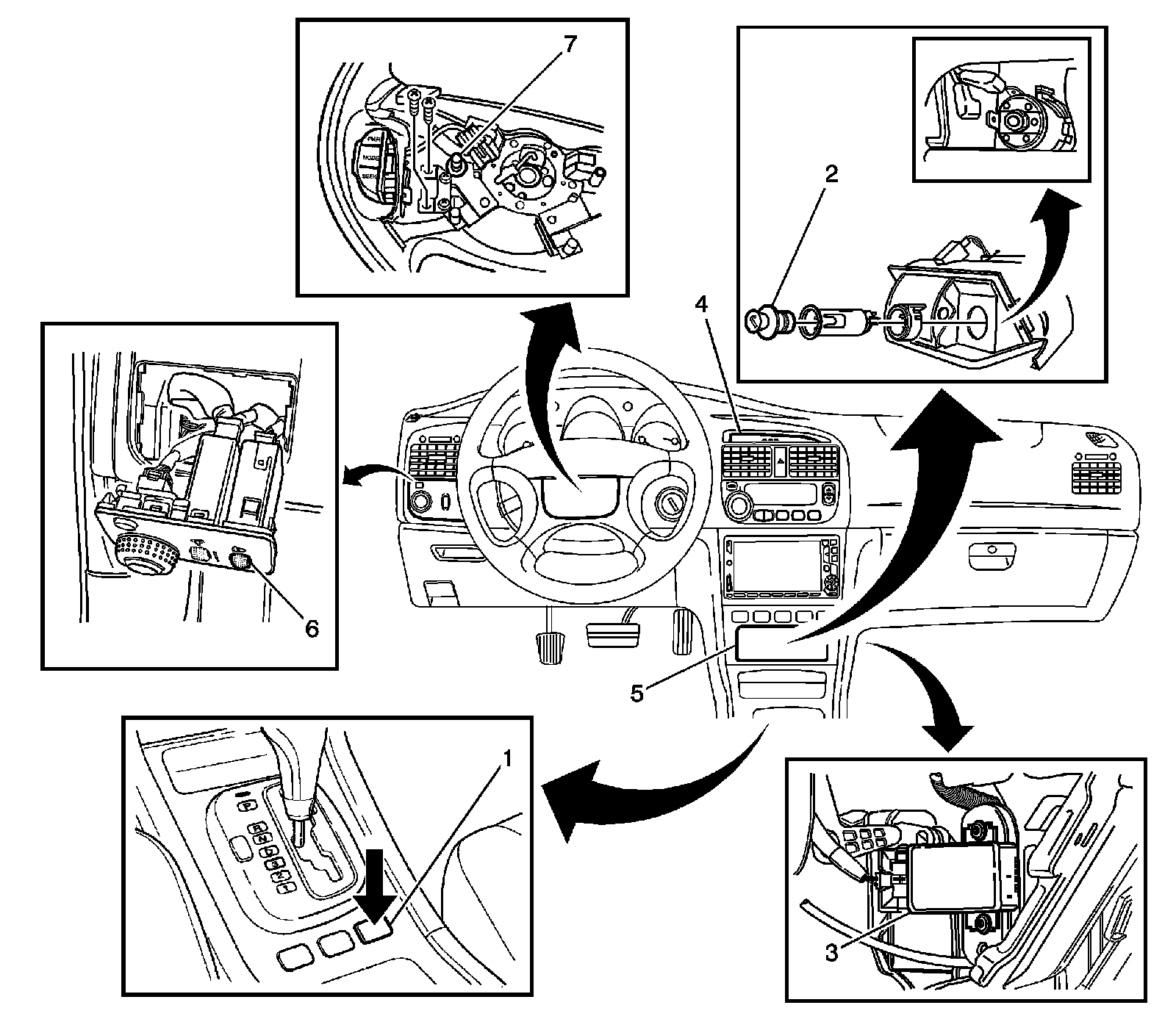

Instrument Panel Switches




1 - Shift Program Switch, Hold Mode Switch
2 - Cigar Lighter
3 - Daytime Running Lamp Module (w/ DRL)
4 - Clock
5 - Auxiliary Power Outlet
6 - Dimmer Control Switch (I/P)/Headlamp Leveling Switch
7 - Horn Switch

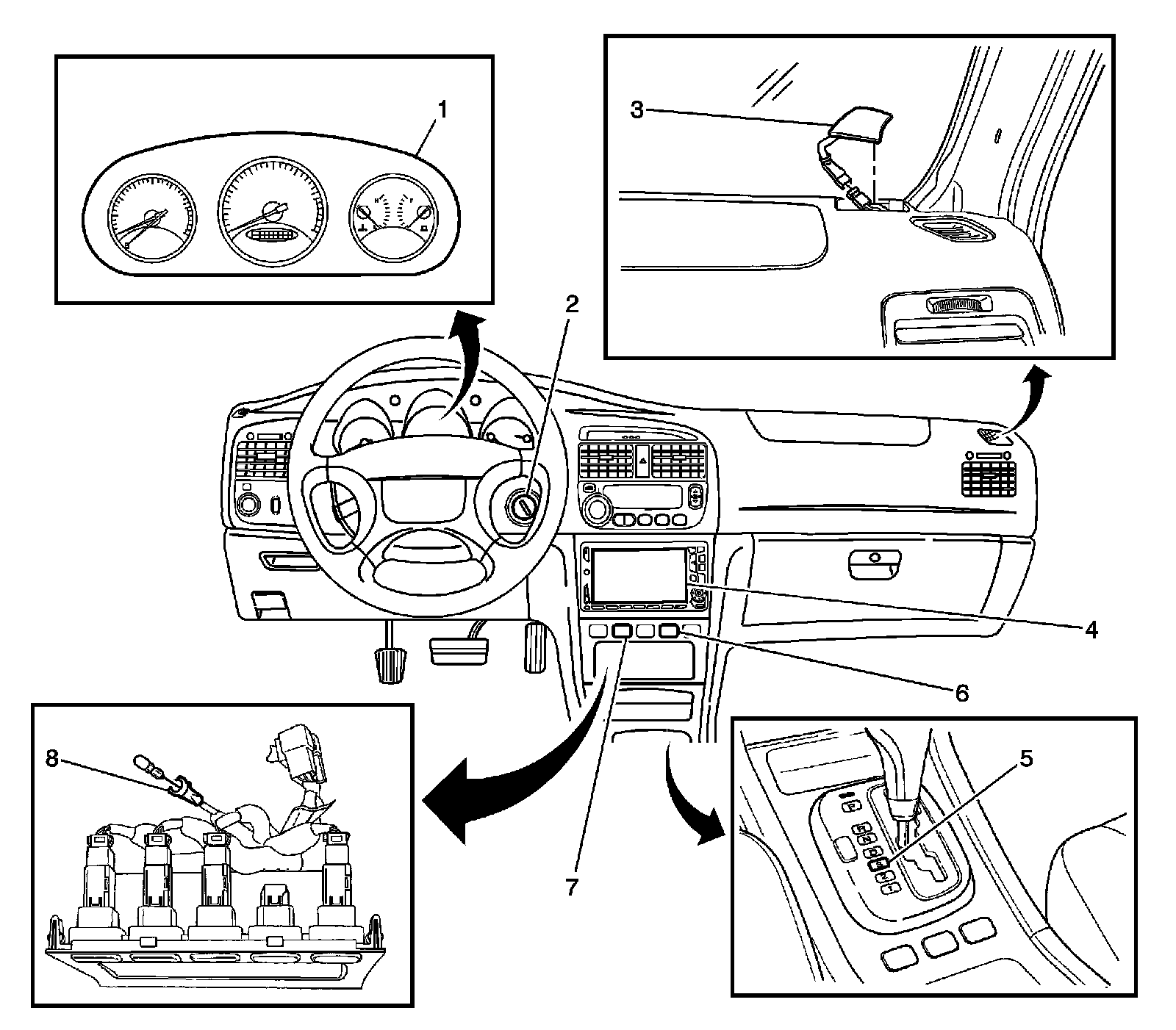

Instrument Panel




1 - Instrument Cluster
2 - Ignition Switch
3 - Speaker (Tweeter) Right Front (Left Similar)
4 - Radio
5 - Shift Indicator Lamp - Automatic Transmission
6 - Fog Lamp Switch - Rear (w/ Rear Fog Lamps)
7 - Fog Lamp Switch/Front
8 - Ashtray Lamp

Instrument Panel Multifunction Switches




1 - Traction Control Switch (TCS)
2 - Windshield Wiper/Washer Switch
3 - Hazard Switch
4 - I/P Compartment Lamp/Switch
5 - Headlamp Switch, Turn Signal/ Multifunction Switch
