HVAC Systems - Manual

HVAC Component Views

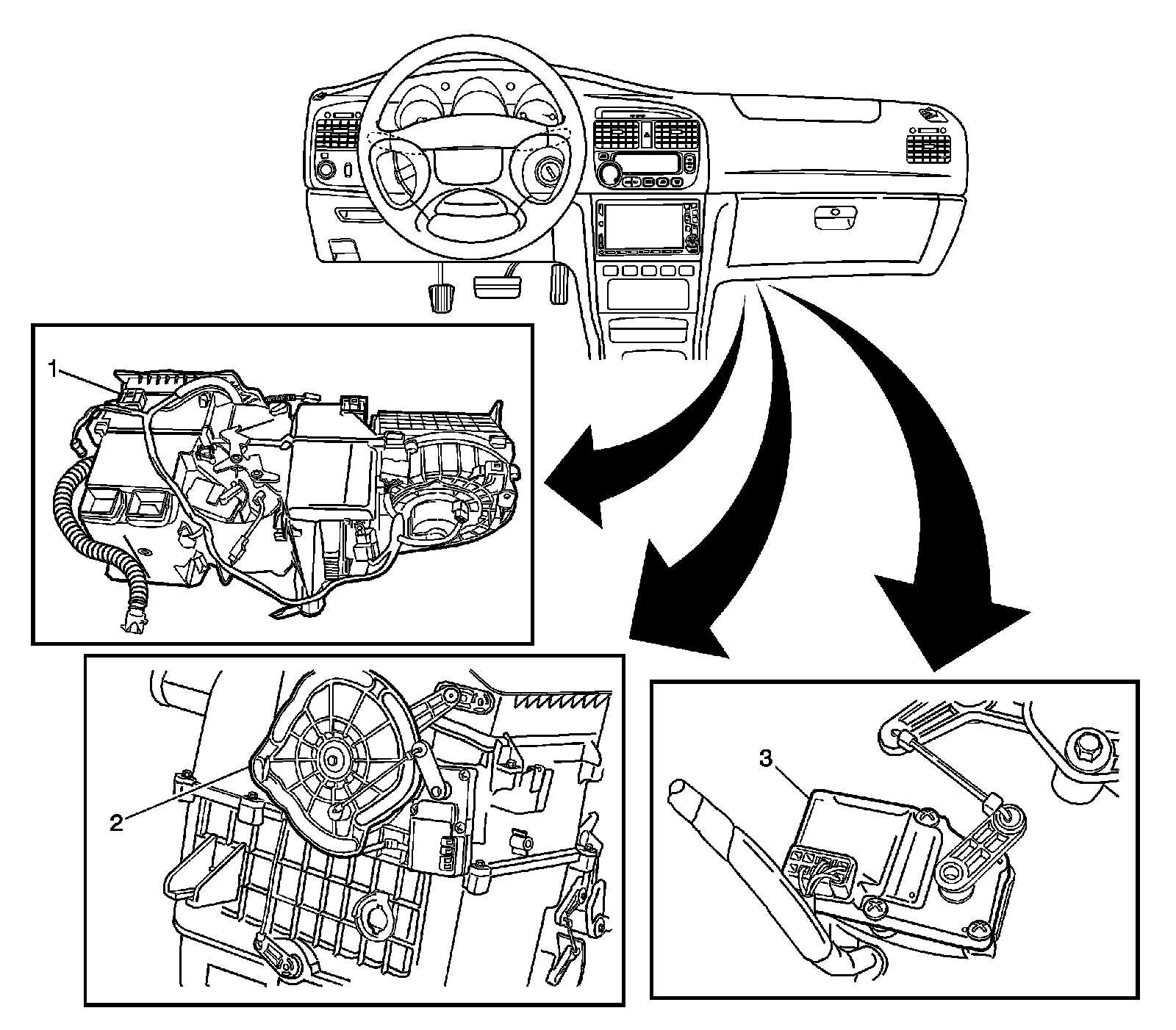

HVAC Module




1 - HVAC Module
2 - Mode Motor
3 - Air Temperature Actuator Recirculation Actuator

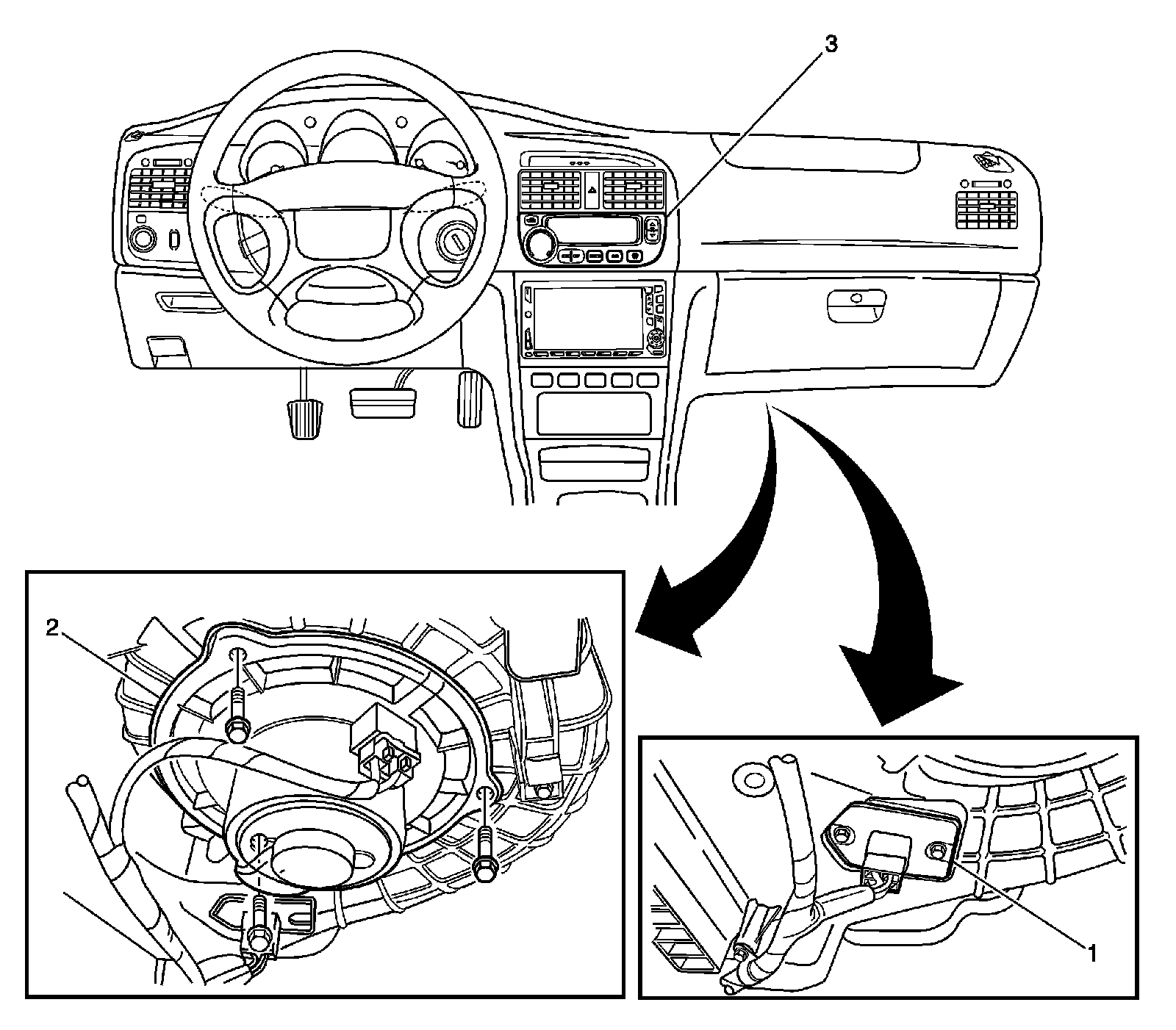

HVAC Components - Blower Motor




1 - Blower Resistor
2 - Blower Motor
3 - HVAC Control

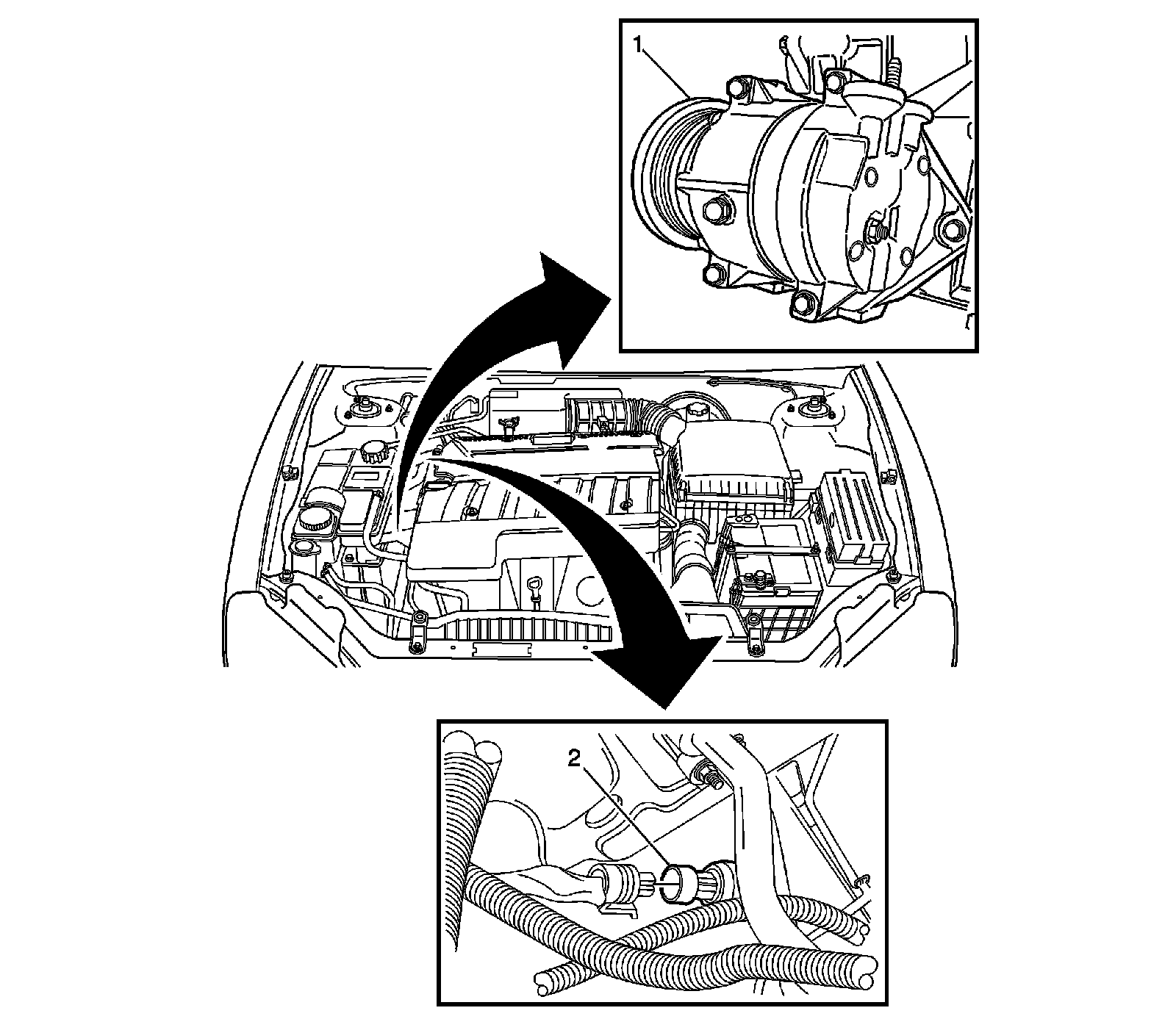

Compressor and A/C Referigerant Pressure Sensor




1 - A/C Compressor Clutch
2 - A/C Referigerant Pressure Sensor

A/C Compressor




1 - Pulley Bearing
2 - Pulley Bearing-to-Head Retaining Ring
3 - Drive Plate Clutch
4 - Shaft Nut
5 - Compressor Shaft
6 - Shaft and Guide Pin Assembly Cylinder
7 - Rear Head O-Ring
8 - Suction Reed
9 - Valve Plate
10 - Rear Head Gasket
11 - Rear Head Compressor
12 - Compressor Control Valve
13 - Control Valve O-Ring
14 - Retaining Ring
15 - Bearing
16 - Compressor Housing-to-Cylinder O-Ring
17 - Race
18 - Oil Drain Plug
19 - Thrust Washer
20 - Compressor Housing
21 - Through-Gasket
22 - Through-Bolt
23 - Shaft Seal O-Ring
24 - Shaft Lip Seal
25 - Seal Retaining Ring
26 - Clutch Hub Key
27 - Clutch Coil
28 - Rotor Pulley
