HVAC Component Views

HVAC Component Views

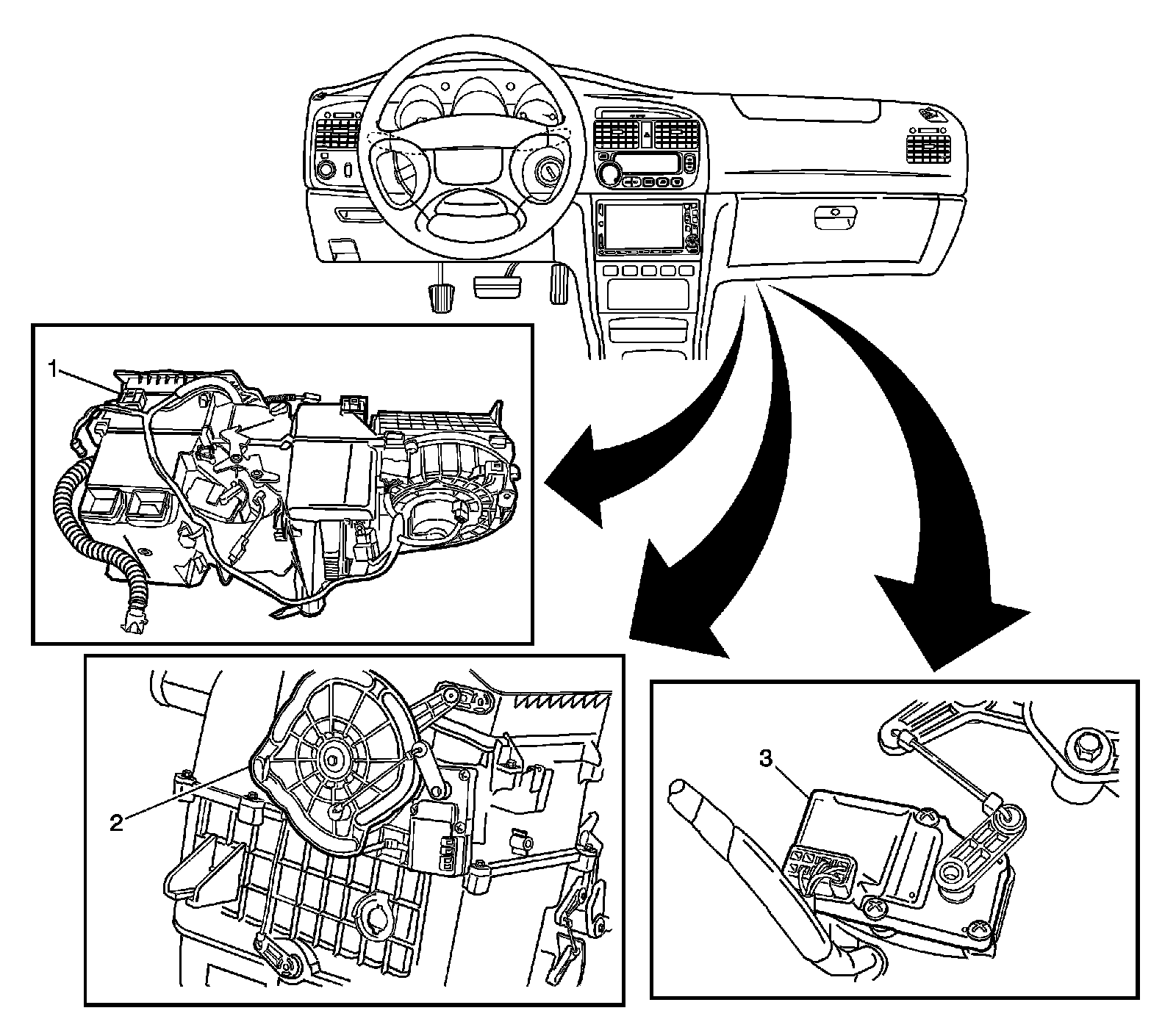

HVAC Components




1 - HVAC Module
2 - Mode Actuator
3 - Air Temperature Actuator Recirculation Actuator

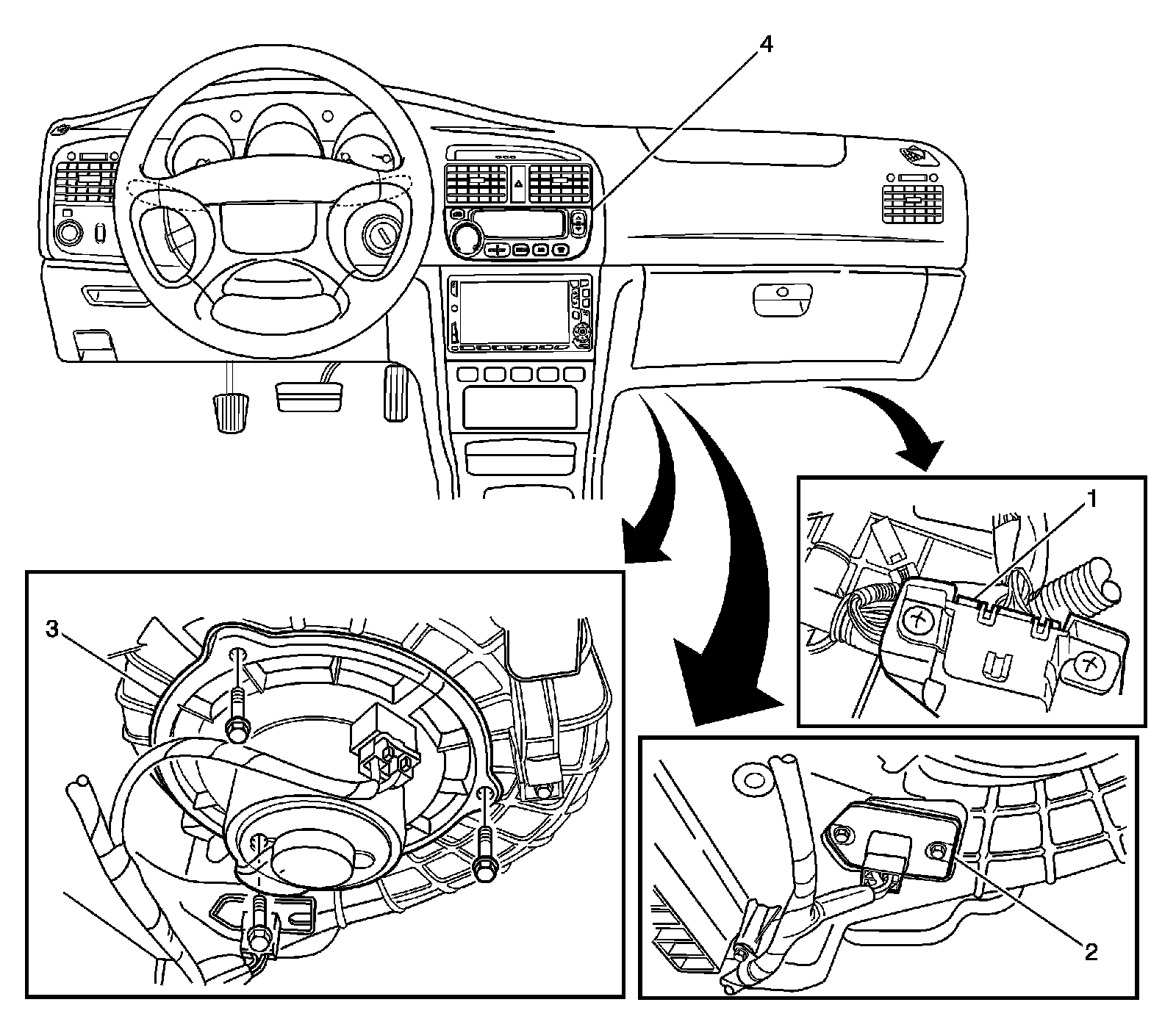

HVAC Components




1 - Inside Air Temperature Sensor
2 - Blower Control Module
3 - Blower Motor
4 - HVAC Control

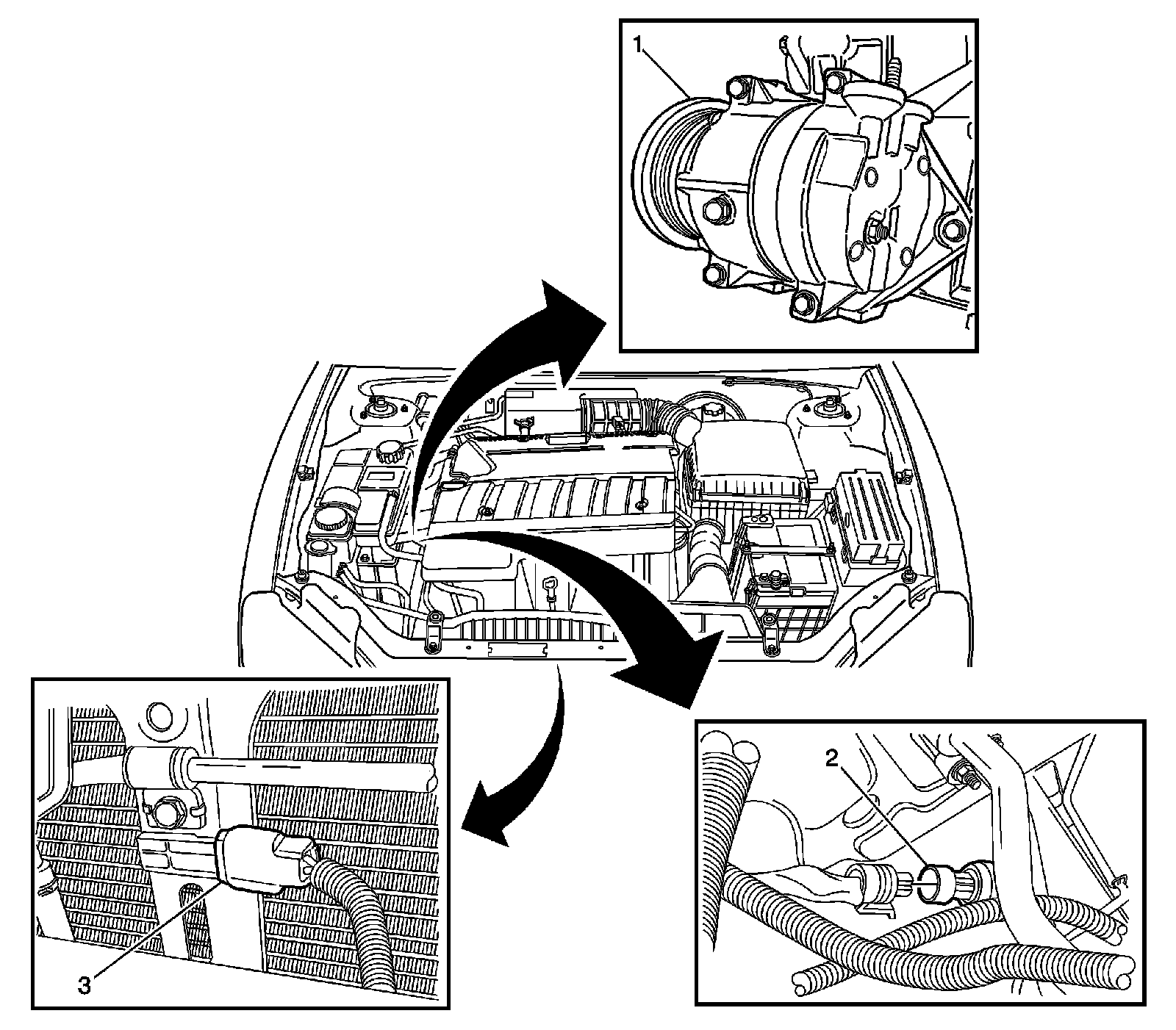

Compressor and A/C Refrigerent Pressure Sensor




1 - A/C Compressor/Clutch
2 - A/C Refrigerant Pressure Sensor
3 - Ambient Air Temperature Sensor
