Air Door: Service and Repair

Deflector Replacement - Instrument Panel Air

Removal Procedure




1. Remove the instrument panel cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster Trim Panel Replacement - Instrument Panel (I/P) Cluster.

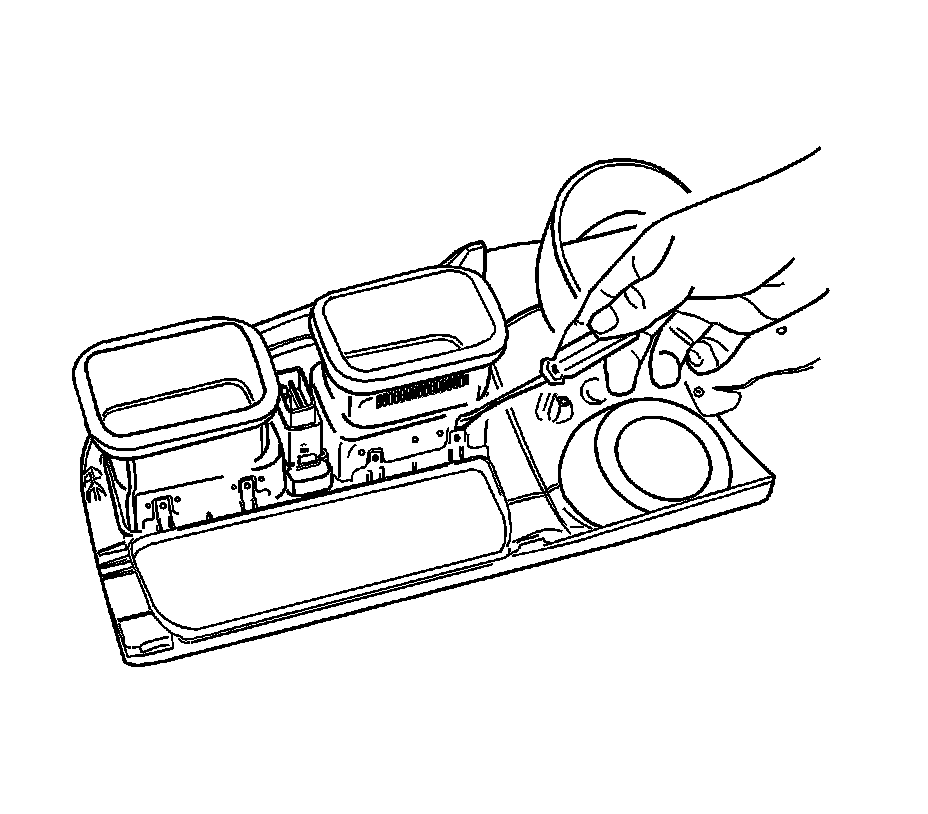

2. Pry off the vents by inserting a screwdriver.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Press the vents onto the housing.

Tighten the instrument panel vent screws to 3 Nm (27 lb in).

2. Install the instrument cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster Trim Panel Replacement - Instrument Panel (I/P) Cluster.
