Automatic Transmission/Transaxle

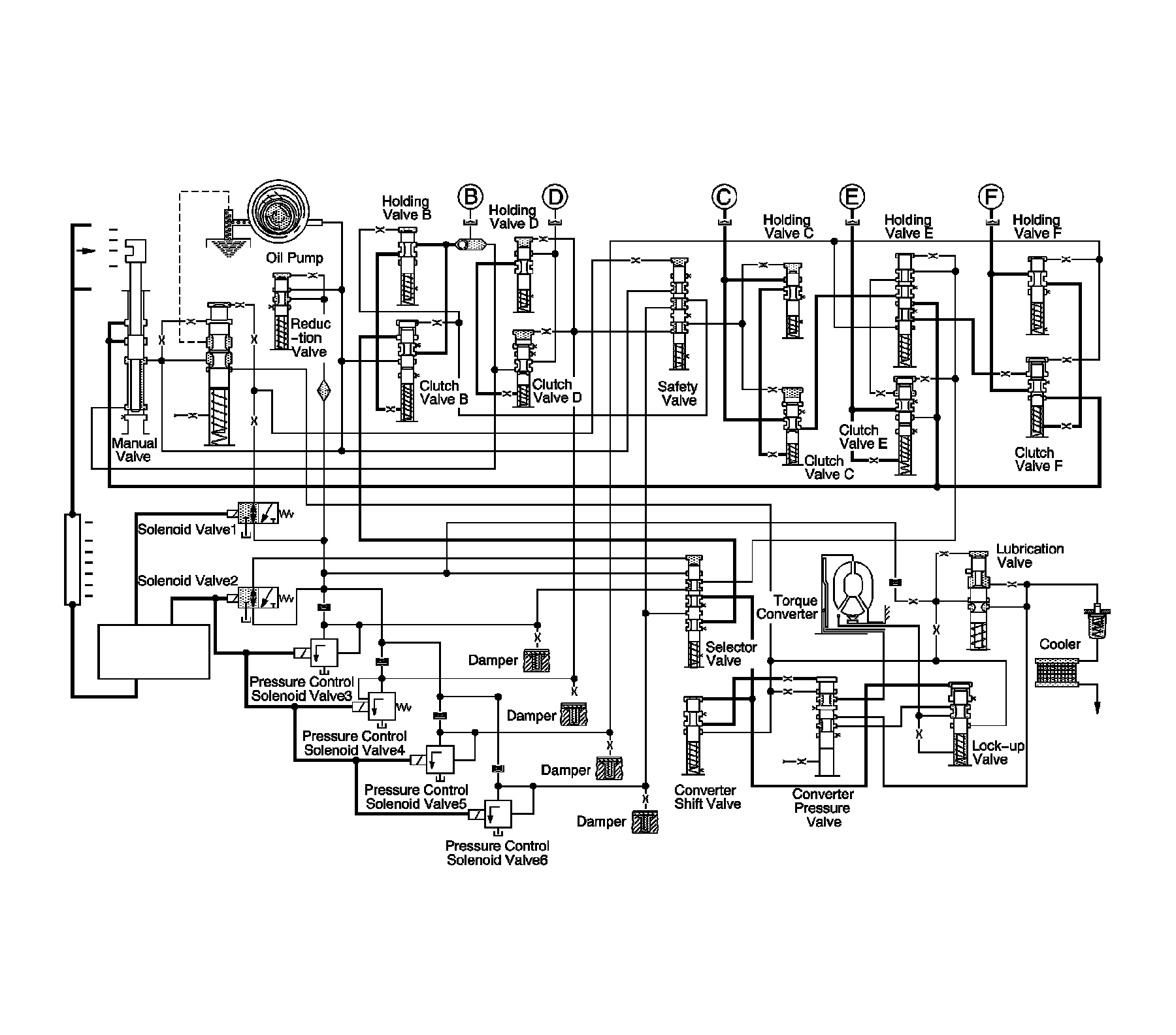

Park or Neutral - Engine Running

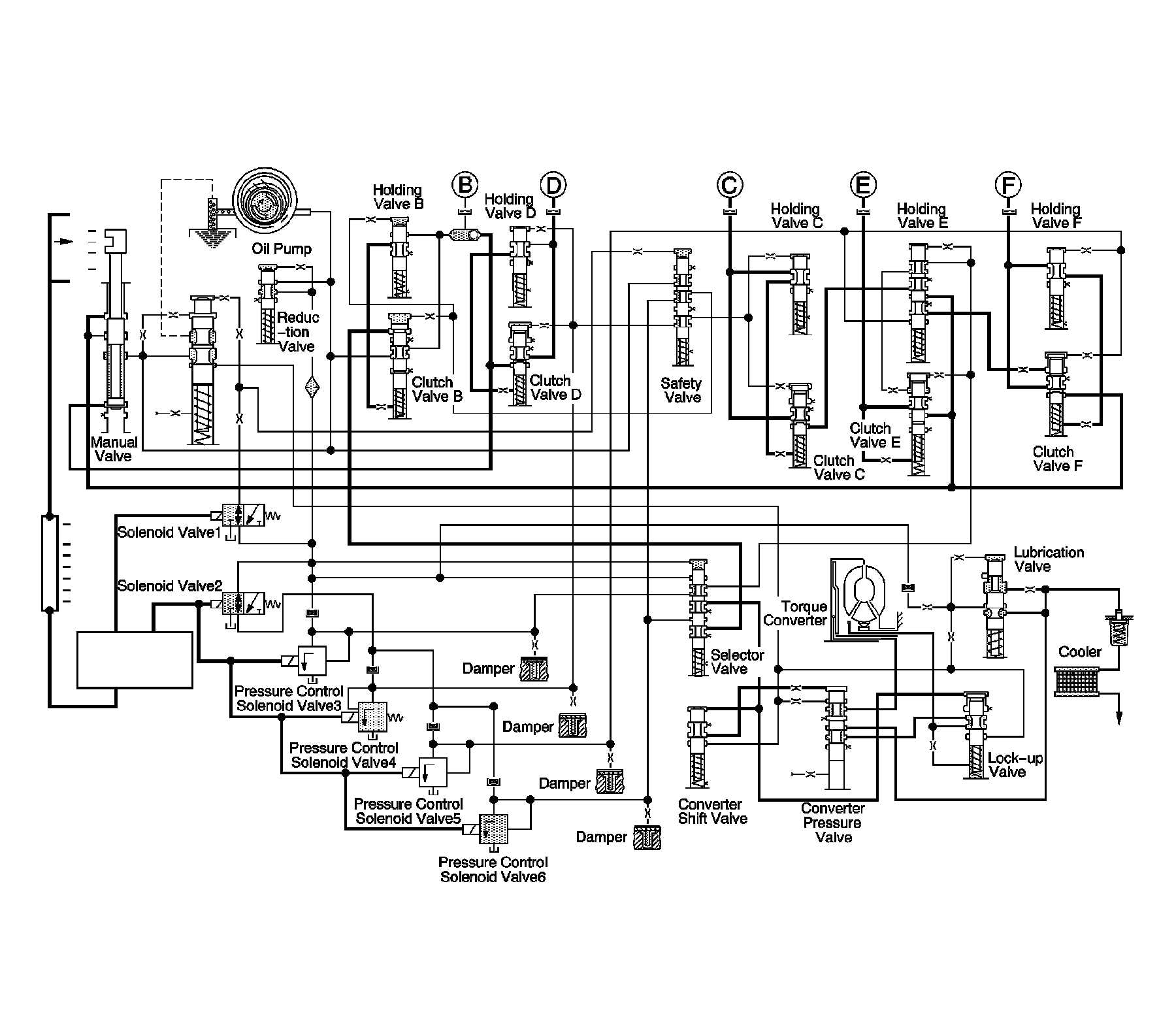

Drive Range, First Gear

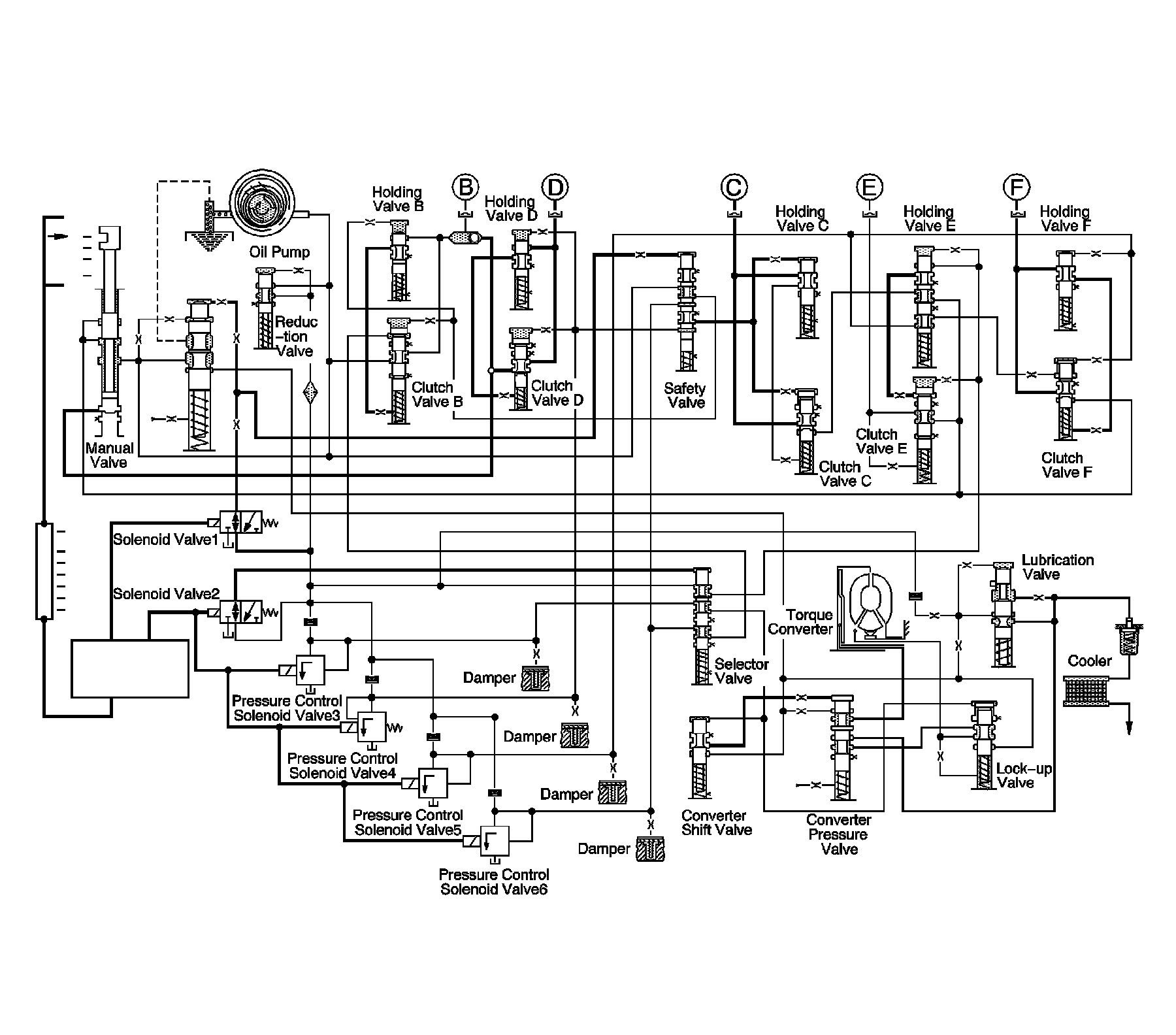

Drive Range, Second Gear

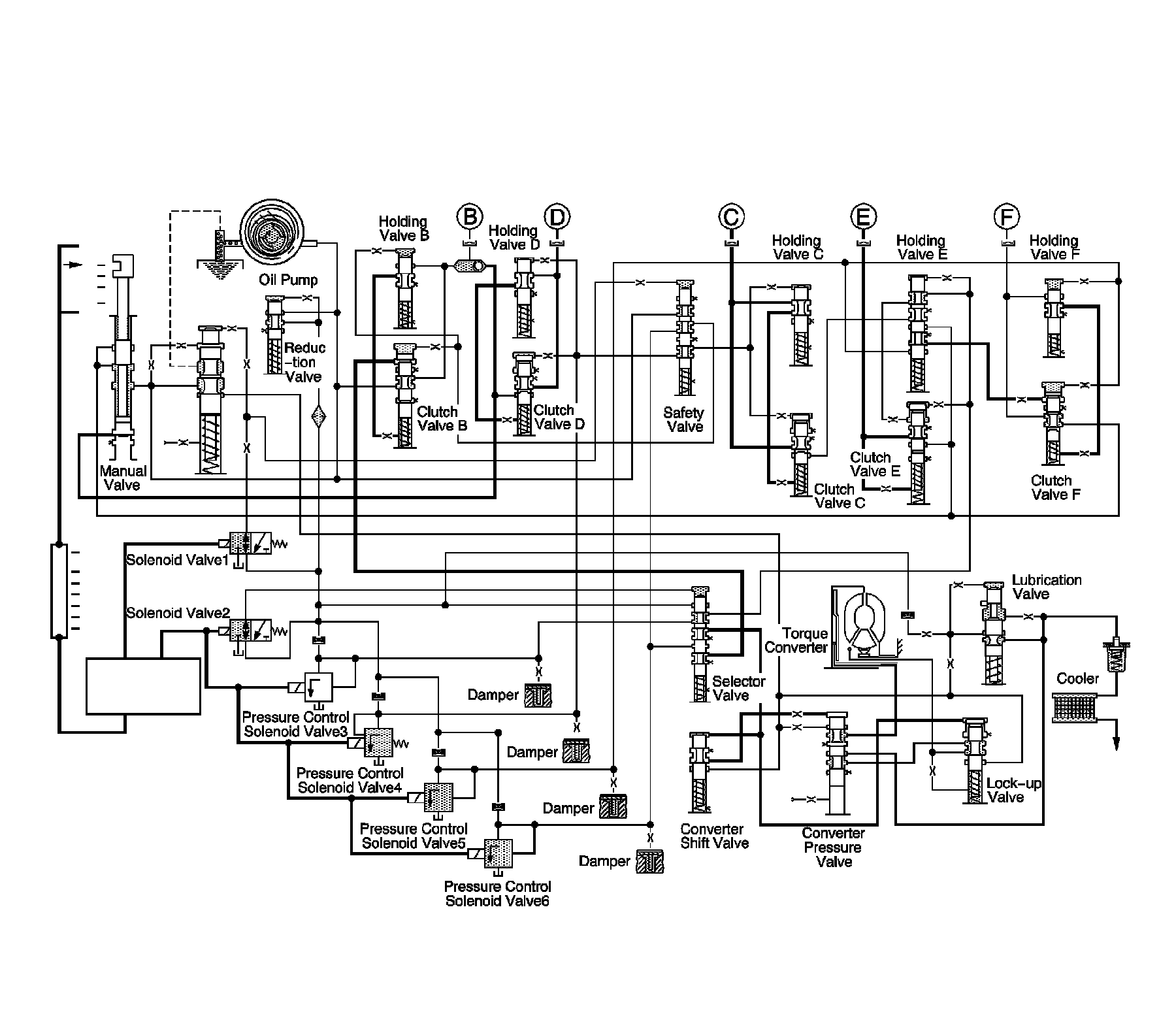

Drive Range, Third Gear

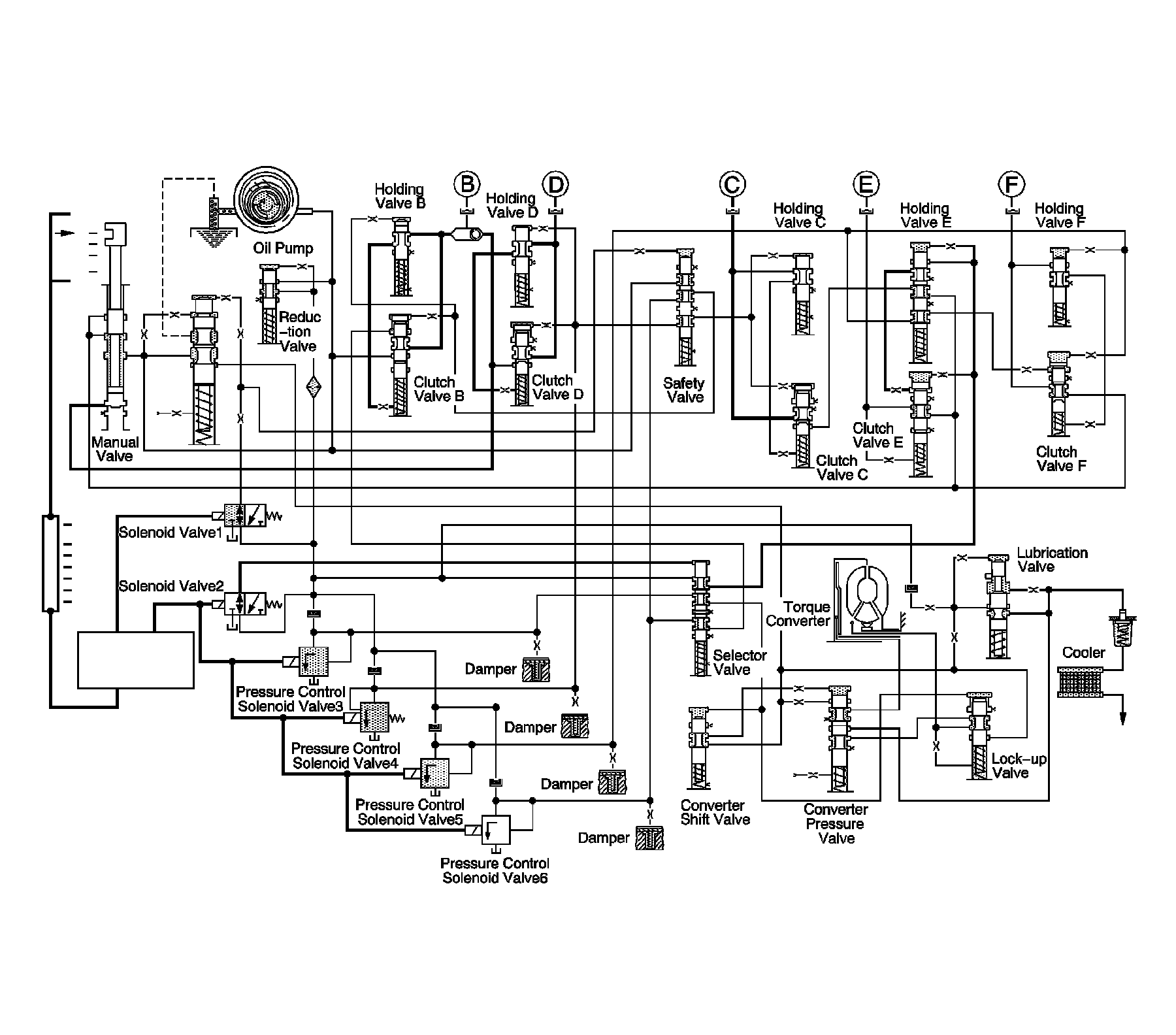

Drive Range - Third Gear, Emergency/Substitute Mode

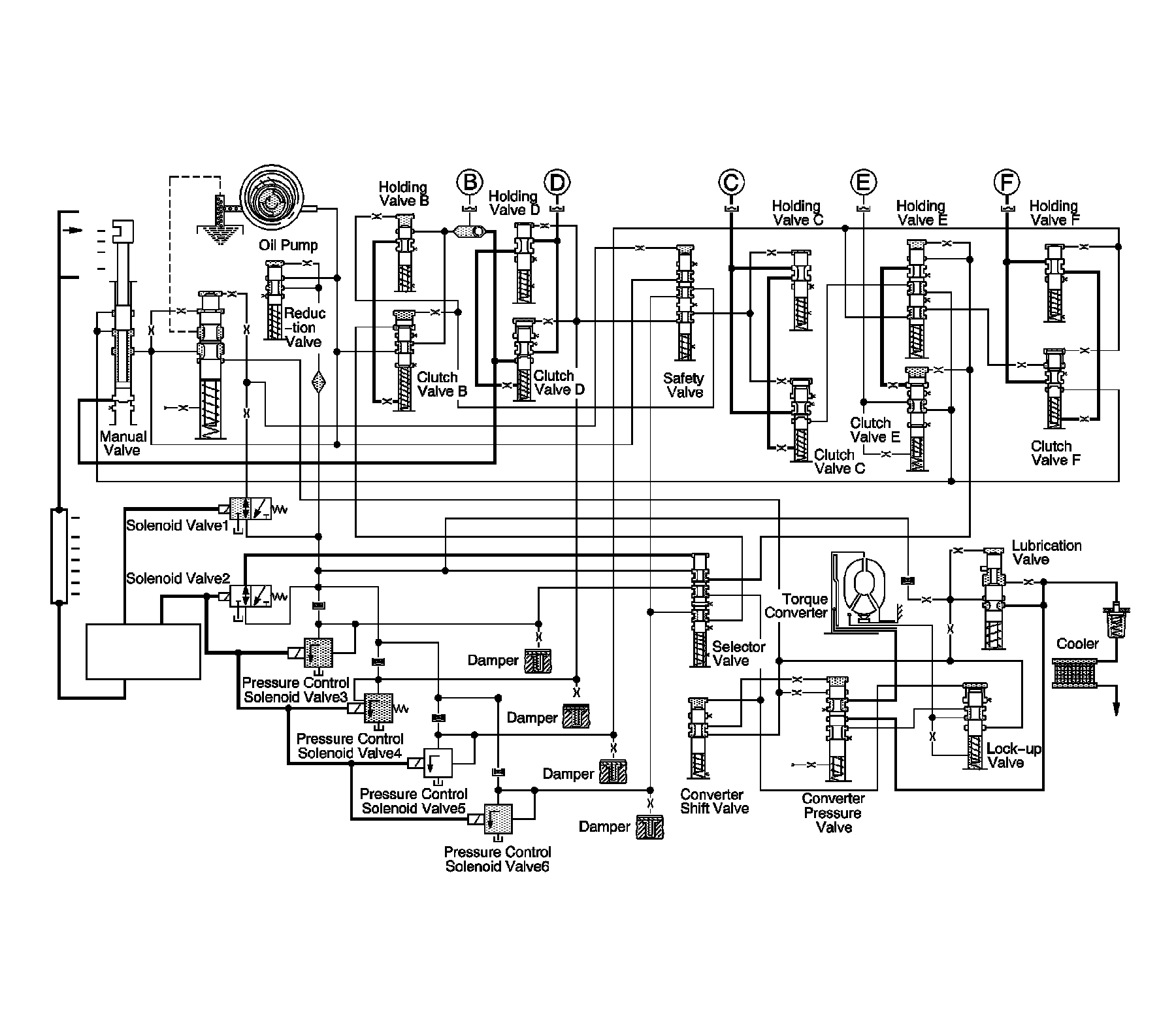

Drive Range - Fourth Gear, Emergency/Substitute Mode

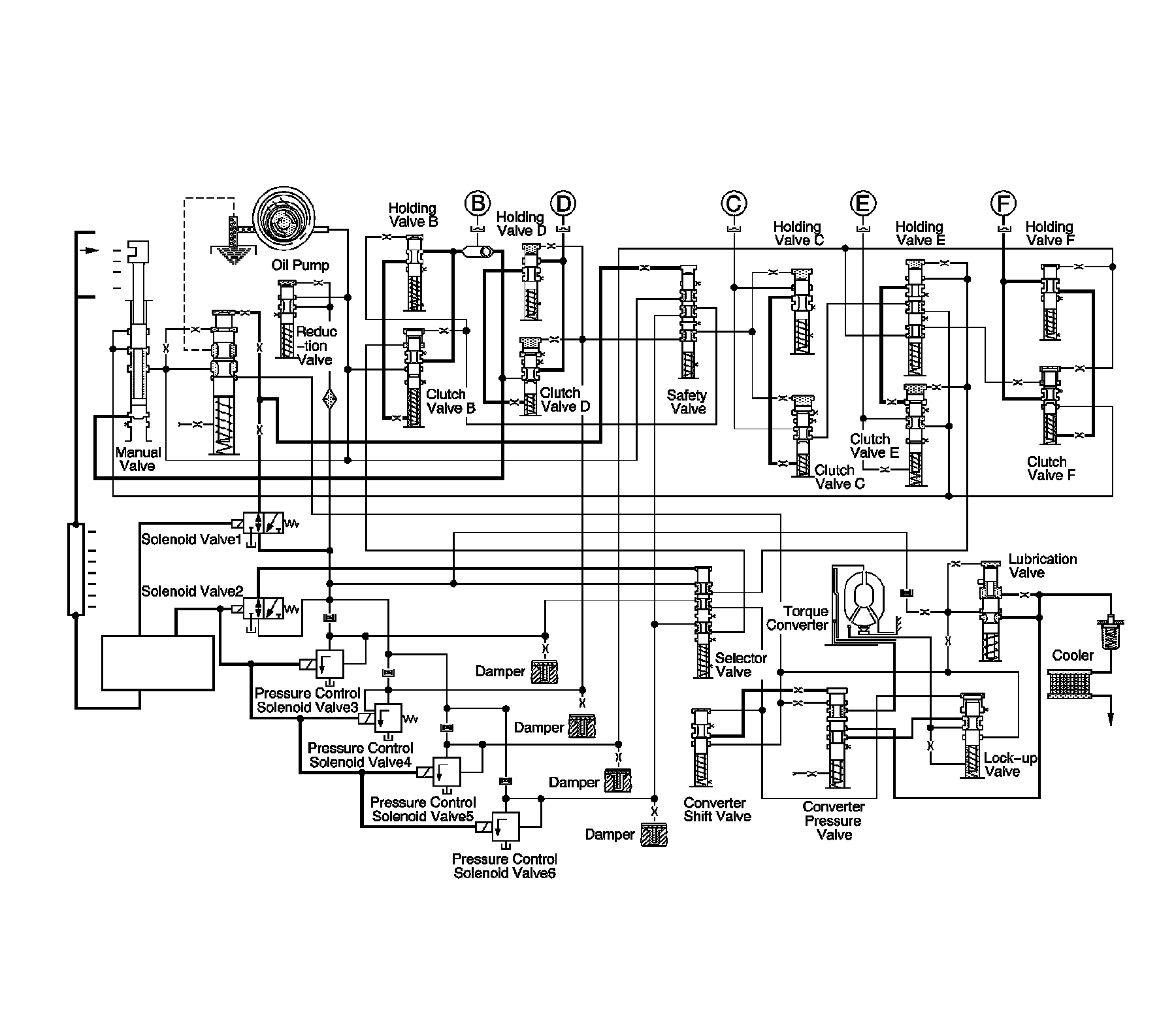

Drive Range - Fourth Gear






Reverse
