Manual Transmission/Transaxle

Manual Transmission Component Views

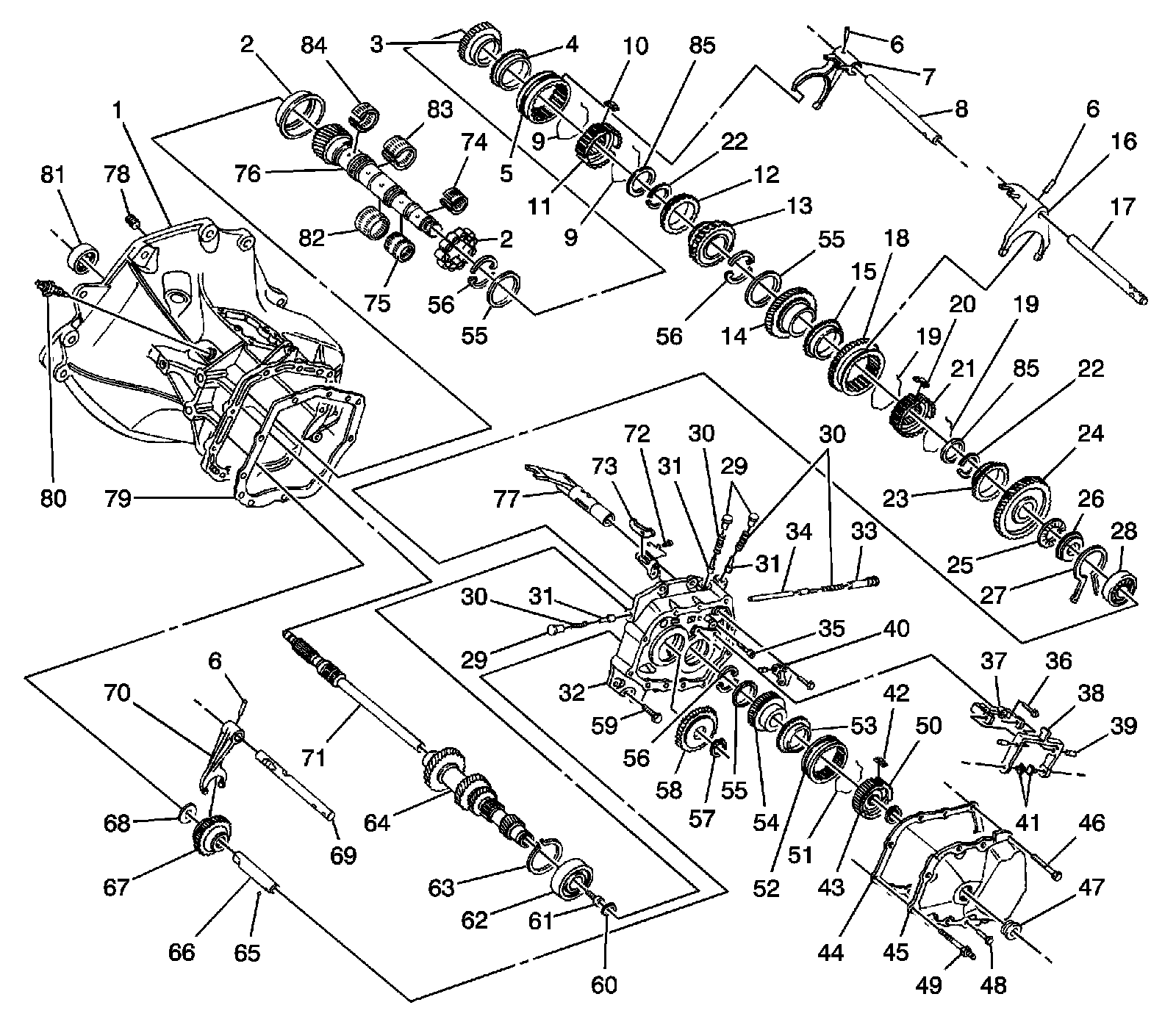

Gears and Case




1 - Case
2 - Mainshaft Bearing Outer Race
3 - 4th Gear
4 - Synchronizer Ring
5 - Synchronizer Sleeve
6 - Pin
7 - 3rd-4th Gearshift Fork
8 - 3rd-4th Gearshift Shaft
9 - Spring
10 - Key
11 - 3rd-4th Synchronizer Gear
12 - Synchronizer Ring
13 - 3rd Gear
14 - 2nd Gear
15 - Synchronizer Ring
16 - 1st-2nd Gearshift Fork
17 - 1st-2nd Gearshift Rod
18 - Synchronizer Sleeve
19 - Synchronizer Spring
20 - Key
21 - Synchronizer Gear
22 - Snap Ring
23 - Synchronizer
24 - 1st Gear
25 - Thrust Needle Bearing
26 - Mainshaft Disk
27 - Snap Ring
28 - Mainshaft Bearing
29 - Shift Rod Plug (21.5 mm)
30 - Spring
31 - Shift Rod Lock Pin
32 - Bearing Plate
33 - Shift Rod Plug (50.4 mm)
34 - Detent Rod Bolt
35 - Bolt
36 - Bolt
37 - Support
38 - 5th Gearshift Fork
39 - Pin
40 - Bridge-Strain Bolt
41 - Shoe
42 - Key
43 - Snap Ring
44 - Gasket
45 - Cover
46 - Bolt
47 - Plug
48 - Bolt
49 - Screw
50 - Synchronizer Gear
51 - Spring
52 - Synchronizer Sleeve
53 - Synchronizer Blocking Ring
54 - Mainshaft Driven 5th Gear
55 - Retaining Ring
56 - Thrust Washer
57 - Circlip
58 - Input Drive 5th Gear
59 - Bolt
60 - Cluster Gear Snap Ring
61 - Screw
62 - Input Shaft Bearing
63 - Ring
64 - Input Shaft Cluster Gear
65 - Ball
66 - Reverse Idler Gear Shaft
67 - Reverse Idler Gear
68 - Washer
69 - Reverse Gear Rod
70 - Reverse Gearshift Fork
71 - Input Shaft
72 - Bolt
73 - 5th Gear Pawl
74 - 5th Gear Needle Bearing
75 - 1st Gear Needle Bearing
76 - Main Shaft
77 - 5th Gearshift Lever
78 - Hex Plug
79 - Bearing Plate Gasket
80 - Backup Lamp Switch
81 - Input Shaft Bearing
82 - 2nd Gear Needle Bearing
83 - 3rd Gear Needle Bearing
84 - 4th Gear Needle Bearing
85 - Retaining Ring

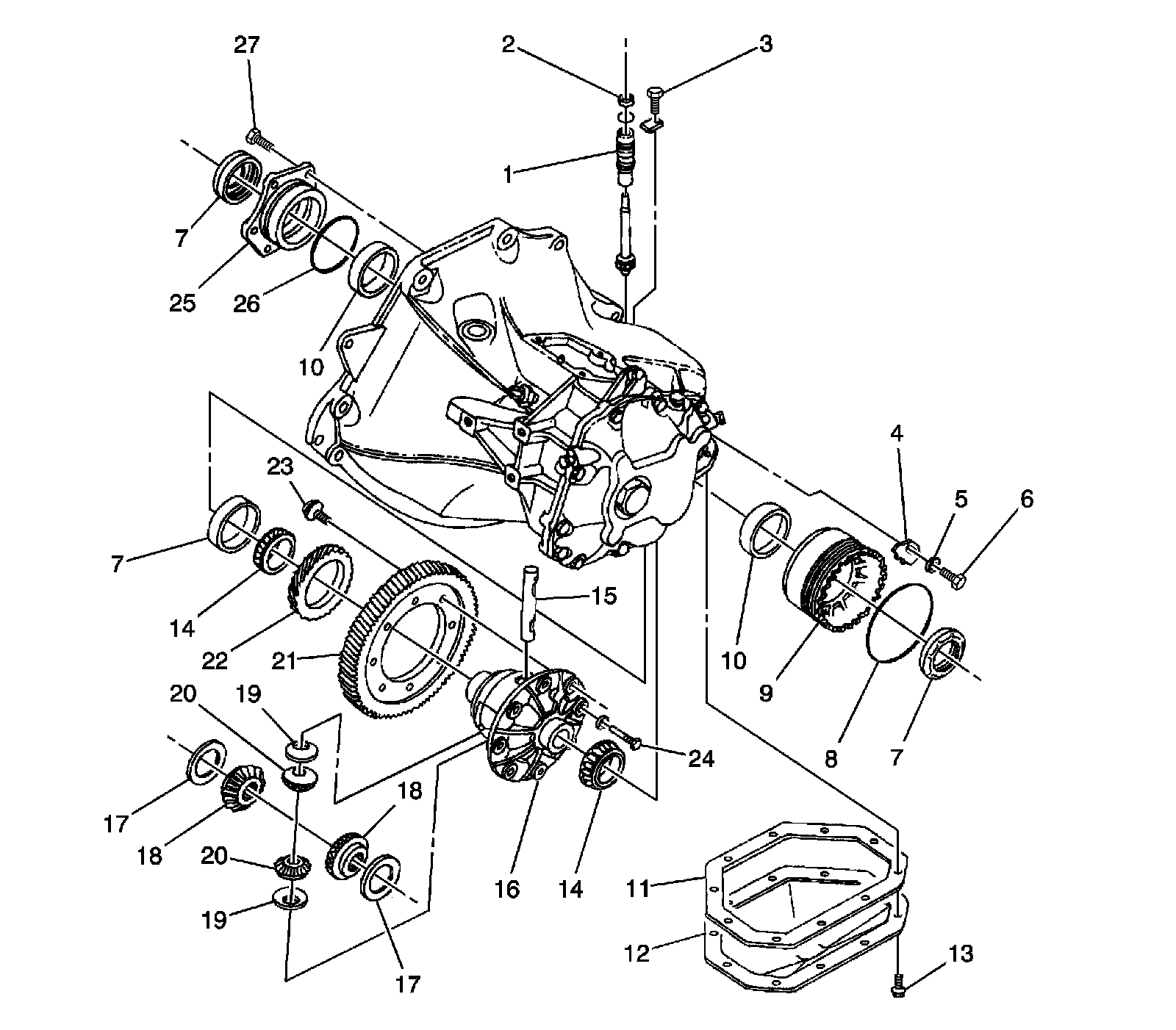

Differential and Case




1 - Speedometer-Driven Gear (Vehicle Speed Sensor (VSS))
2 - Seal
3 - Hex Bolt
4 - Plate-Lock
5 - Washer
6 - Bolt
7 - Seal
8 - O-Ring
9 - Bearing Adjusting Ring
10 - Side Bearing Race
11 - Differential Cover Gasket
12 - Differential Cover
13 - Bolt
14 - Differential Bearing
15 - Differential Gear Shaft
16 - Differential Housing
17 - Thrust Washer
18 - Side Bevel Gear
19 - Washer
20 - Pinion Bevel Gear
21 - Ring Gear
22 - Speedometer Drive Gear
23 - Bolt
24 - Differential Gear Shaft Lock Pin
25 - Flange Bearing
26 - O-Ring
27 - Retainer Bolt

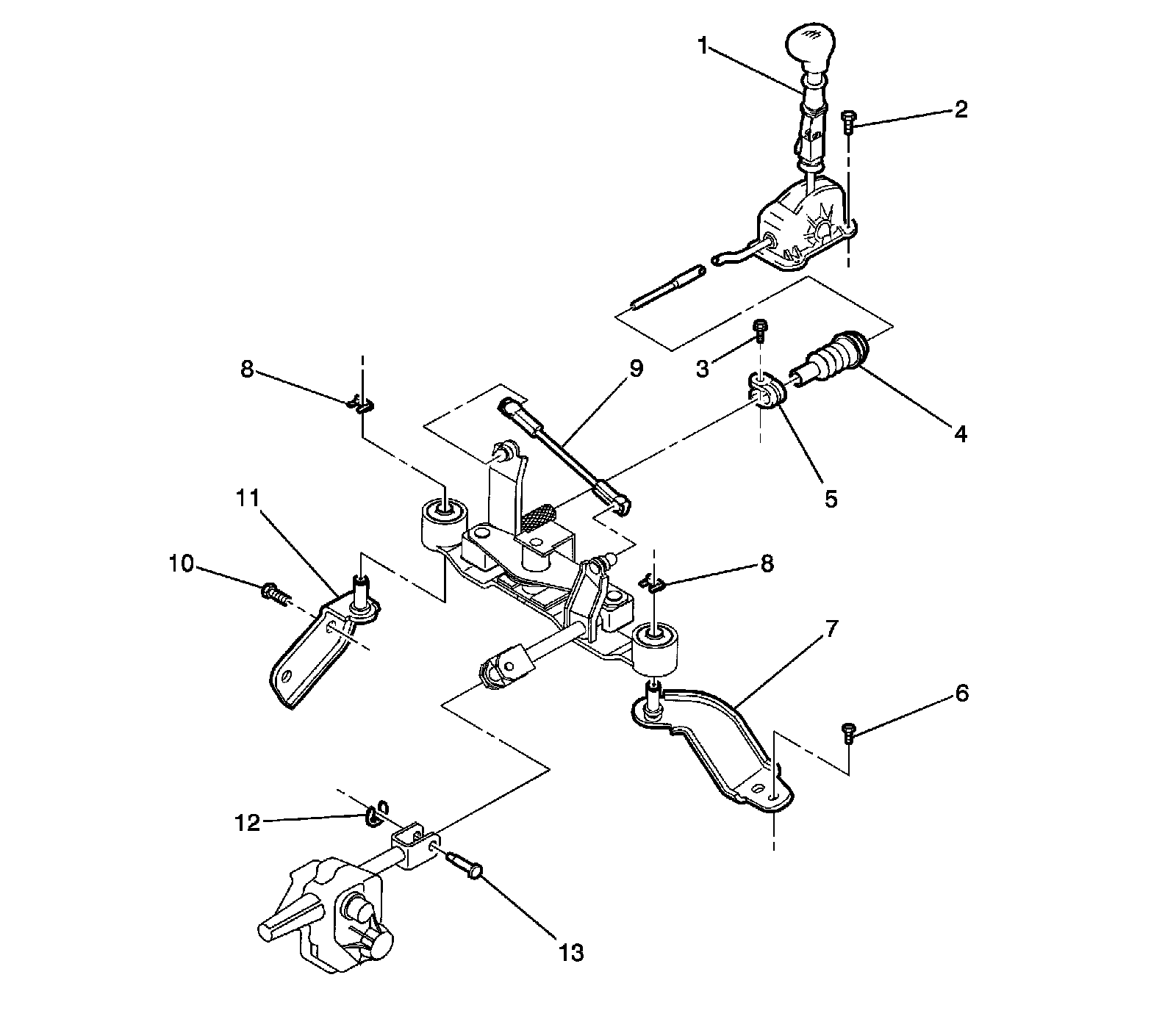

Shift Linkage




1 - Gearshift Control
2 - Bolt
3 - Bolt
4 - Gearshift Bellows Tube
5 - Clamp
6 - Bolt
7 - Front Gearshift Bracket
8 - Clip
9 - Gearshift Control Rod
10 - Bolt
11 - Rear Gearshift Bracket
12 - Clip
13 - Pin
