Disc Brake Splash Shield Replacement - Front

Disc Brake Splash Shield Replacement - Front

Removal Procedure




1. Remove the rotor. Refer to Brake Rotor Replacement - Front Brake Rotor Replacement - Front.

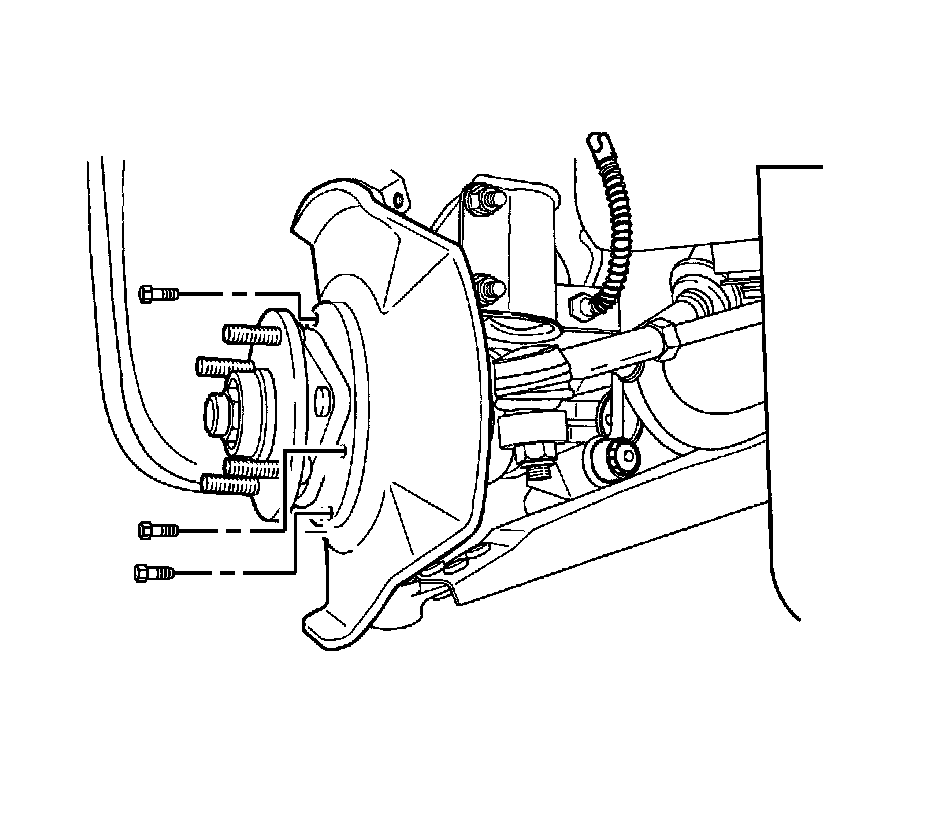

2. Remove the bolts and the lockwashers for the splash shield from the steering knuckle.
3. Remove the splash shield.

Installation Procedure




1. Install the splash shield.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Secure the splash shield to the steering knuckle with the bolts and the lockwashers.

Tighten the splash shield-to-steering knuckle bolts to 25 Nm (18 lb ft).

3. Install the rotor. Refer to Brake Rotor Replacement - Front Brake Rotor Replacement - Front.
