Home
>>
Chevrolet
>>
2006
>>
Cobalt L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Connector Views
>>
MU3 - Manual Transaxle
MU3 - Manual Transaxle

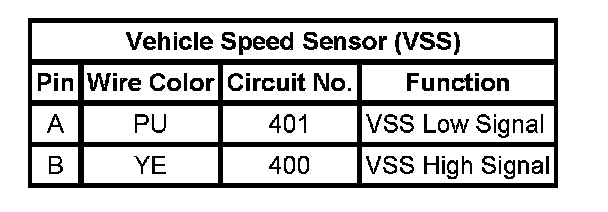

Vehicle Speed Sensor (VSS)

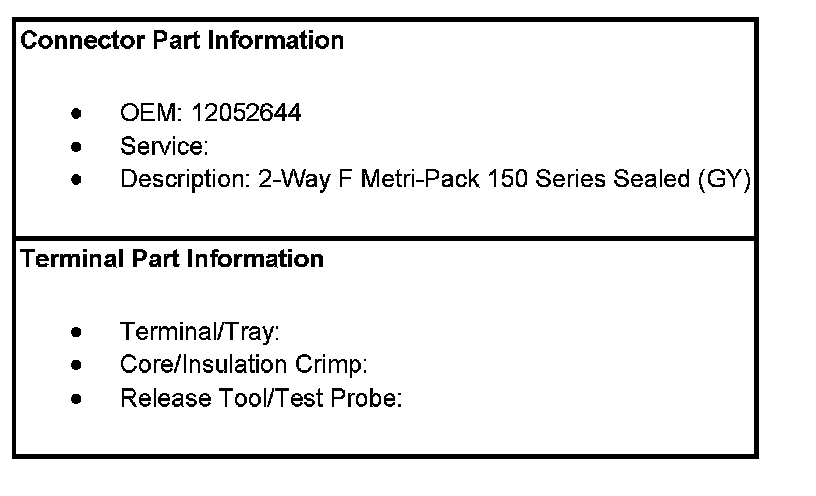

Vehicle Speed Sensor (VSS):
