INFLATABLE RESTRAINT SIDE IMPACT SENSOR REPLACEMENT

REMOVAL PROCEDURE
1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 2 (Impala) SIR Disabling and Enabling Zone 2 (Monte Carlo).

CAUTION:
- Do not strike or jolt the inflatable restraint side impact sensor (SIS). Before applying power to the SIS make sure that it is securely fastened. Failure to observe the correct installation procedures could cause SIR deployment, personal injury, or unnecessary SIR system repairs.
- Refer to SIR Caution in Service Precautions.

2. Remove the left door trim panel. Refer to Trim Panel Replacement - Side Front Door (Impala) Trim Panel Replacement - Side Front Door (Monte Carlo) in Doors.
3. Remove the water deflector as required. Refer to Water Deflector Replacement - Front Door (Impala) Water Deflector Replacement - Front Door (Monte Carlo) in Doors.
4. Remove the inner energy absorber pad. Refer to Energy Absorber Pad Replacement - Front Door (Monte Carlo - Outer) Energy Absorber Pad Replacement - Front Door (Monte Carlo - Inner) in Doors.
5. Loosen the top clip from the outer energy absorber pad and pull the pad away from the outer door panel.

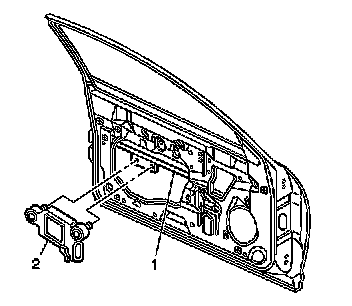

6. Remove the inflatable sensor (2) fasteners.
7. Slide the discriminating sensor out from behind the mounting bracket on the door impact beam (1).
8. Disconnect the wiring harness connector from the inflatable restraint side impact sensor.
9. Remove the side impact sensor from the door.

INSTALLATION PROCEDURE
1. Remove any dirt, grease, or other impurities from the mounting surface.




2. Position the side impact sensor (2) to the mounting bracket.
3. Connect the yellow 2-way harness connector to the side impact sensor.
4. Install the side impact sensor (1) fasteners. Tighten the fasteners with hand tools only.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fasteners to 10 N.m (89 lb in).

5. Press the outer energy absorber pad toward the outer door panel and secure the pad with the clip.
6. Install the Inner energy absorber pad. Refer to Energy Absorber Pad Replacement - Front Door (Monte Carlo - Outer) Energy Absorber Pad Replacement - Front Door (Monte Carlo - Inner) in Doors.
7. Install the water deflector as required. Refer to Water Deflector Replacement - Front Door (Impala) Water Deflector Replacement - Front Door (Monte Carlo) in Doors.
8. Install the left door trim panel. Refer to Trim Panel Replacement - Side Front Door (Impala) Trim Panel Replacement - Side Front Door (Monte Carlo) in Doors.
9. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 2 (Impala) SIR Disabling and Enabling Zone 2 (Monte Carlo).
