Home >> Chevrolet >> 2005 >> Monte Carlo V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Canister Purge Solenoid >> Locations

Canister Purge Solenoid: Locations

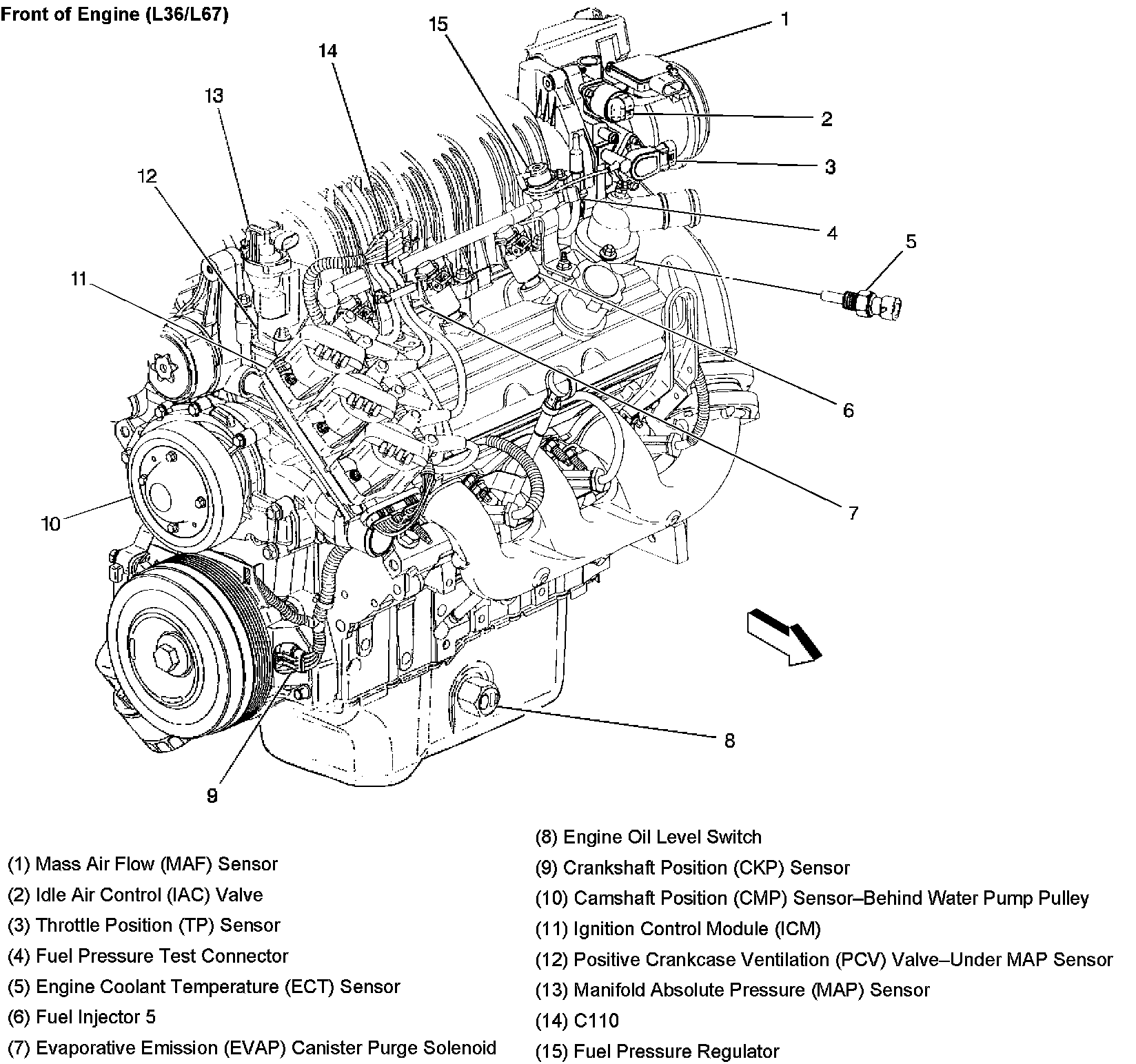

Front Of Engine:



Front of Engine:



Upper Left Front of Engine:

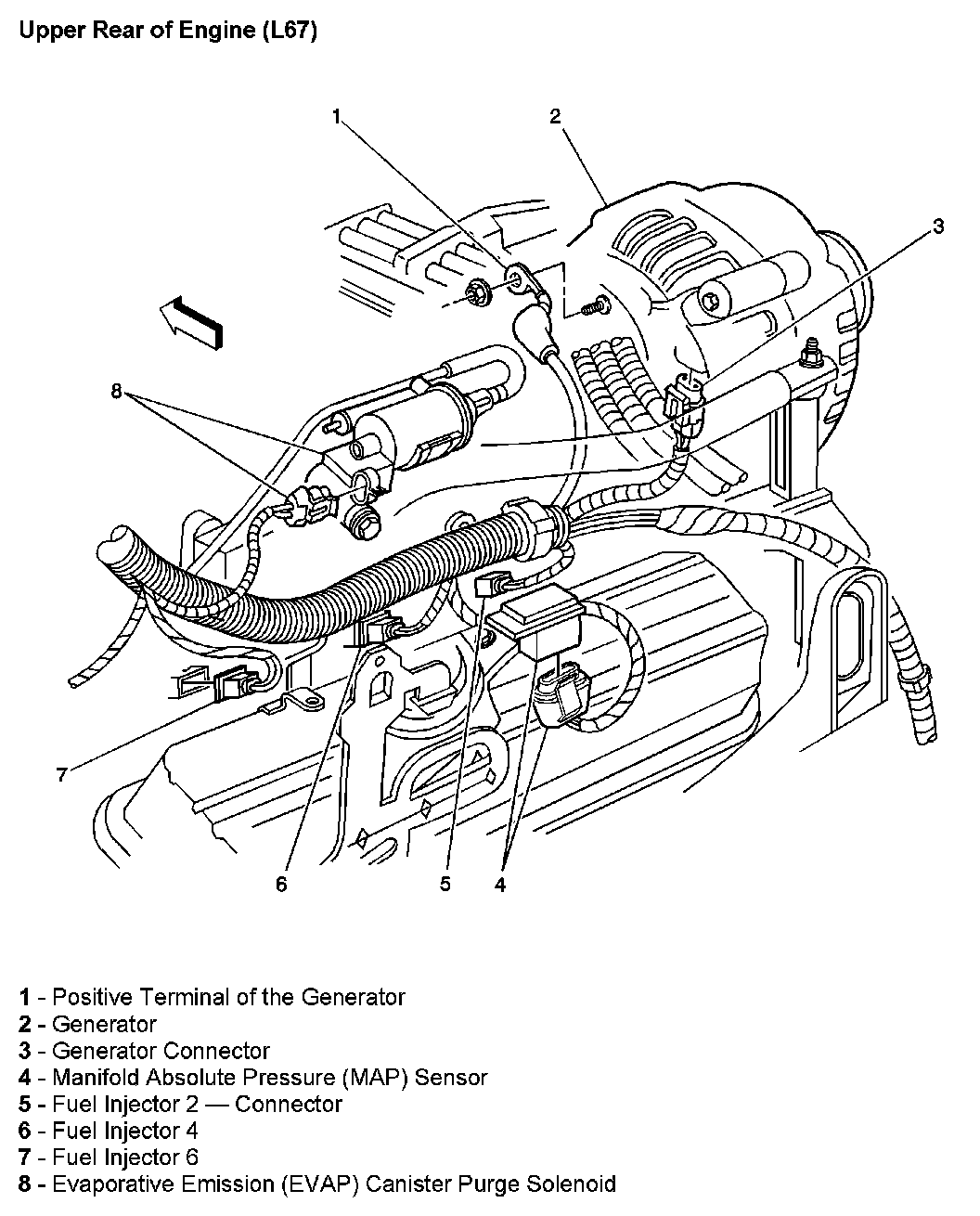

Upper Rear of Engine:
