Monte Carlo V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Locks
>>
Door Lock - LR
Door Lock - LR

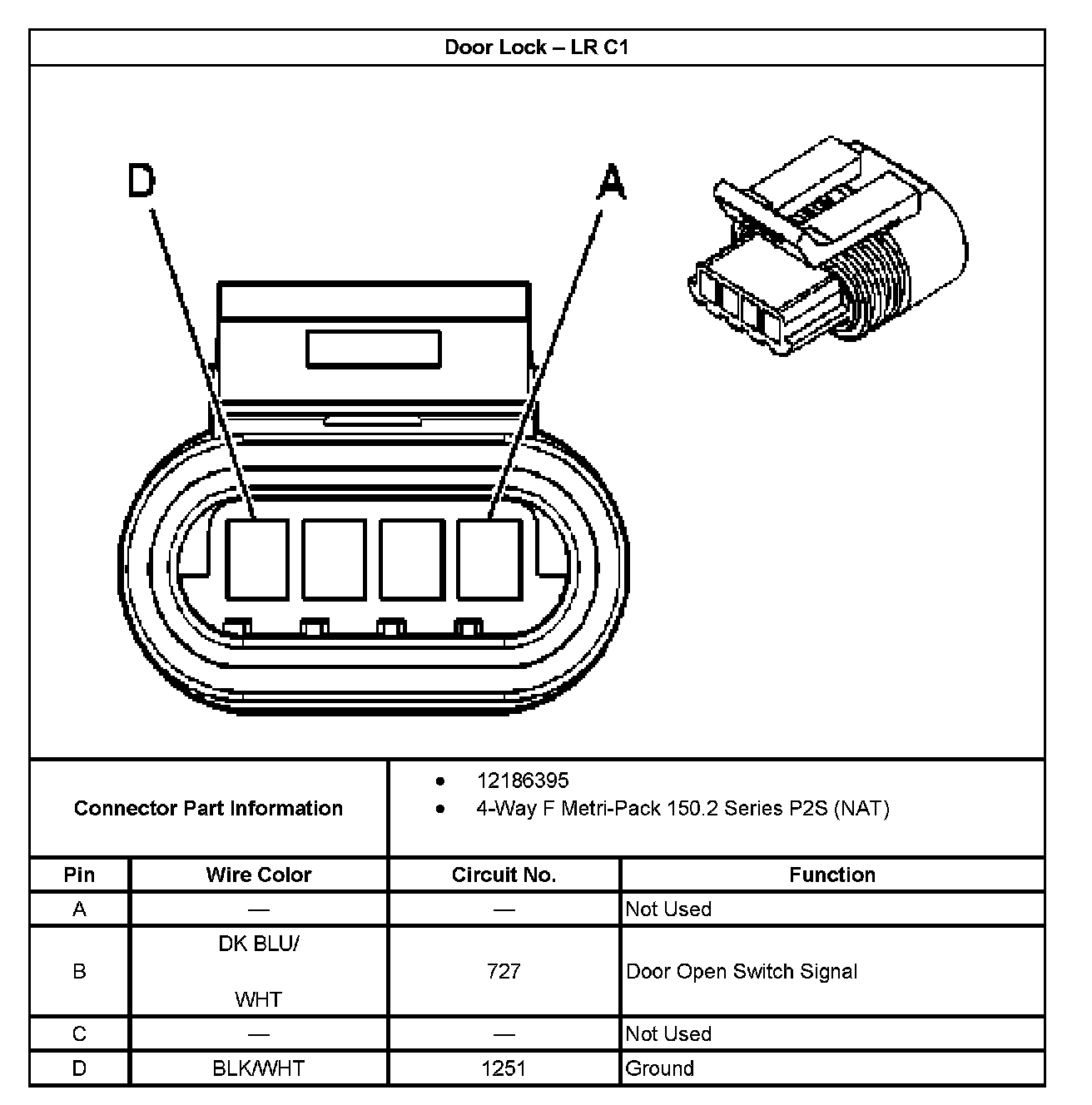

Door Lock - LR C1:

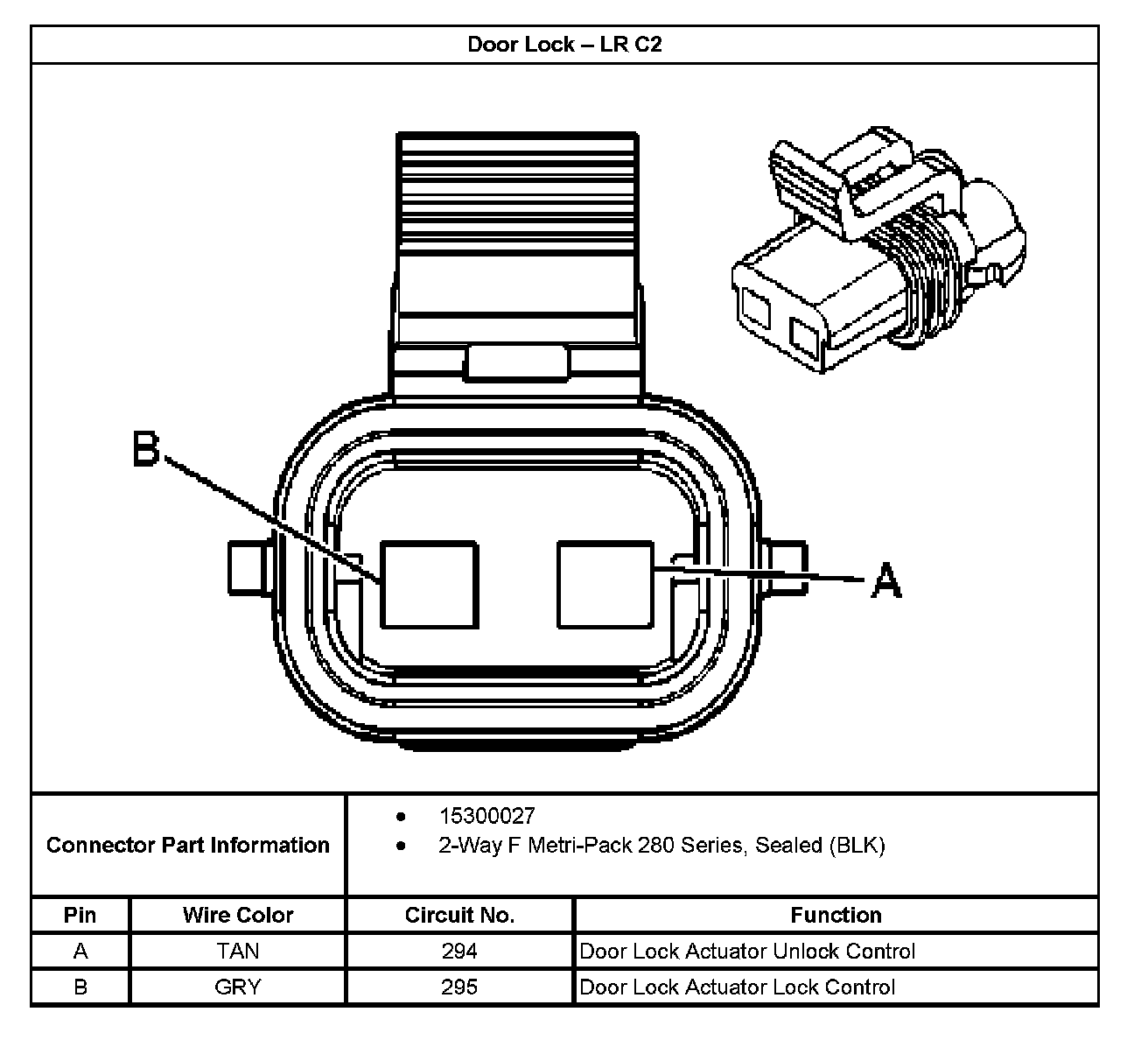

Door Lock - LR C2:
