Home
>>
Chevrolet
>>
2005
>>
Monte Carlo V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C400 - C499
>>
C409
C409

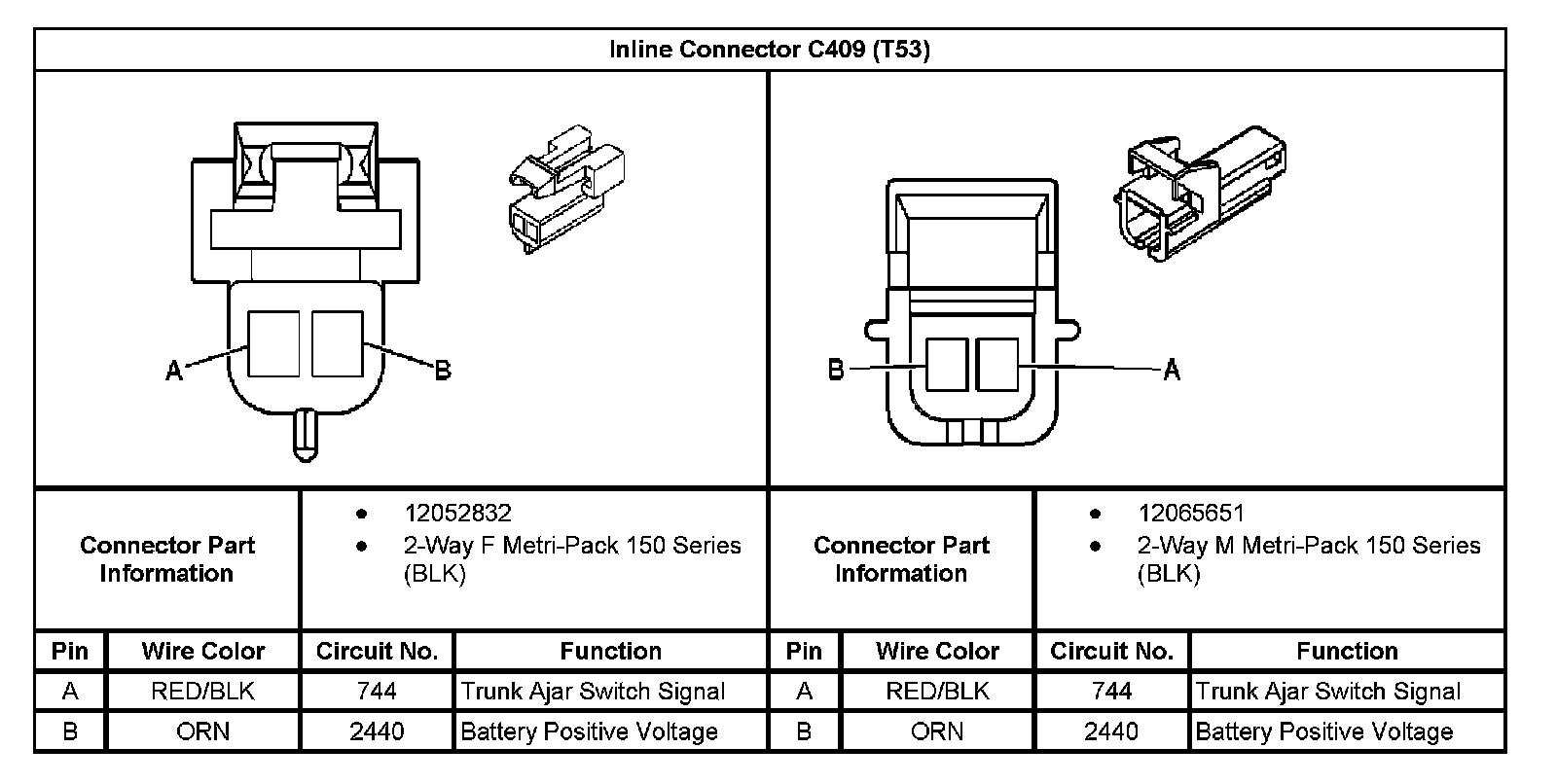

Inline Connector C409 (With RPO Code T53):
