Child Seat Tether Attachment: Service and Repair

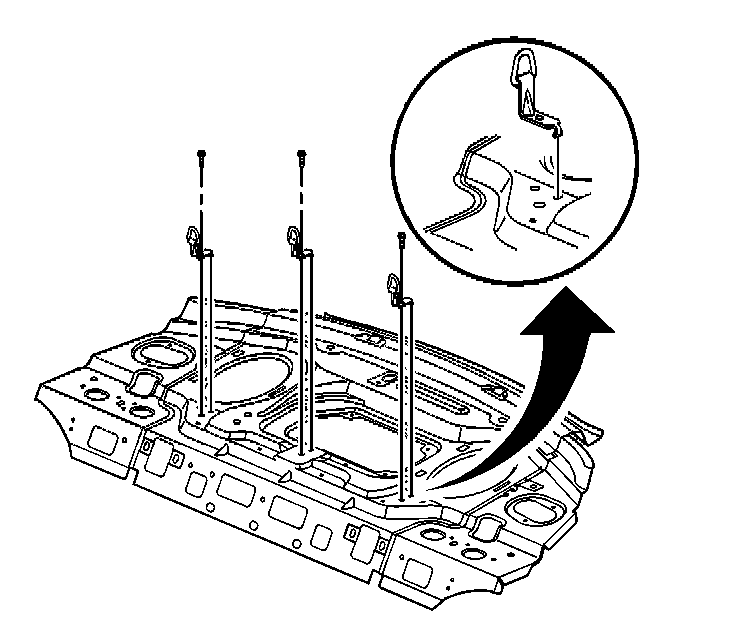

CHILD RESTRAINT TETHER ANCHOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the rear shelf trim panel.
IMPORTANT: The child seat tether brackets have an anti-rotation tab. For Impala only, you must rotate this tab 90 degrees (Impala only) in order to remove or install the tether to the rear shelf.
2. Remove the screws from the child seat tether brackets.
3. For Impala only, rotate the child seat tether brackets 90 degrees in order to remove the child seat tether brackets from the slot.
4. Remove the child seat tether brackets from the rear shelf.

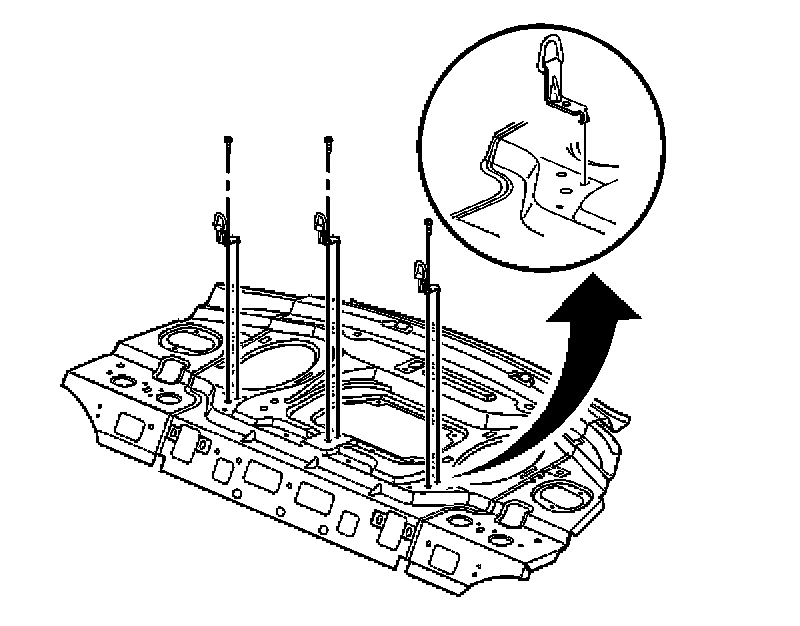

INSTALLATION PROCEDURE
1. Position the child seat tether brackets to the slot in the rear shelf.
2. For Impala only, rotate the child seat tether brackets 90 degrees in order to install the child seat tether brackets into the slot.
3. Install the screws to the child seat tether brackets.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to 20 N.m (15 lb ft).
4. Install the rear shelf trim panel.
