Shoulder Belt Guide Adjuster Replacement - Front

SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Remove the mounting nut cover from the seat belt adjuster.

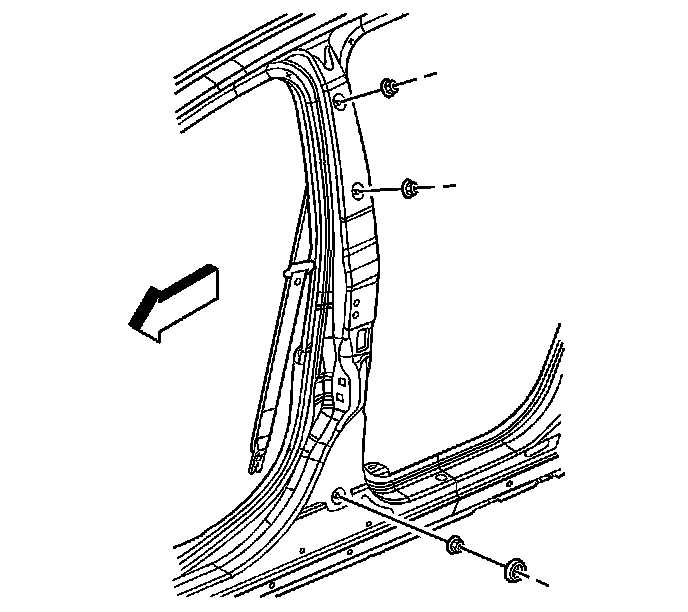

2. Remove the nuts from the seat belt adjuster.
3. Remove the upper garnish molding from the center pillar.
4. Remove the seat belt adjuster from the vehicle.

INSTALLATION PROCEDURE




1. Install the seat belt adjuster to the vehicle.
2. Install the upper garnish molding to the center pillar.
3. Install the nuts to the seat belt adjuster.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the nuts to 35 N.m (25 lb ft).

4. Install the mounting nut cover to the seat belt adjuster.
