Power Trunk / Liftgate Lock Switch: Diagrams

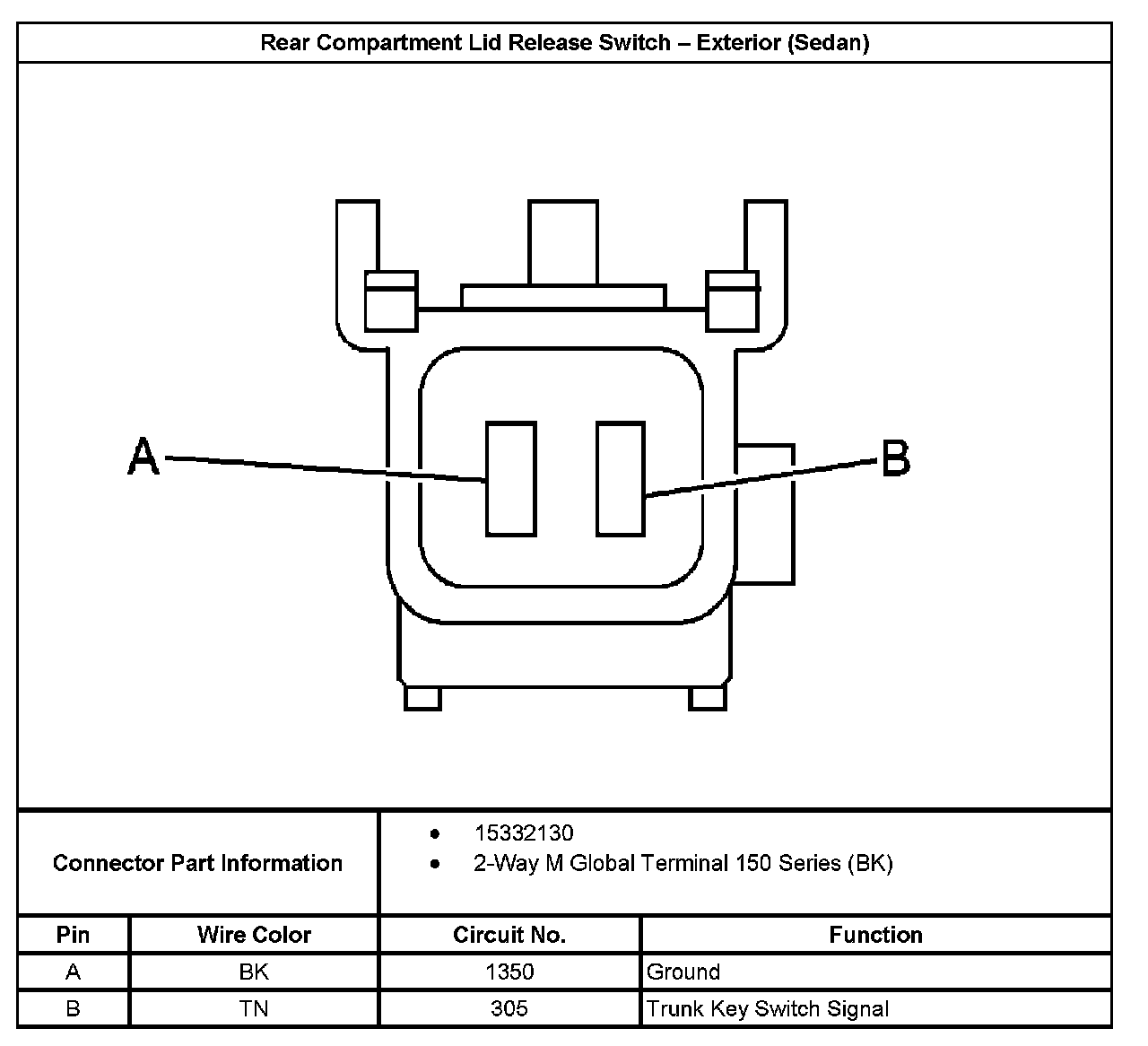

Rear Compartment Lid Release Switch - Exterior (Sedan):



Rear Compartment/Liftgate Release Switch - Interior:
