Television / Monitor: Service and Repair

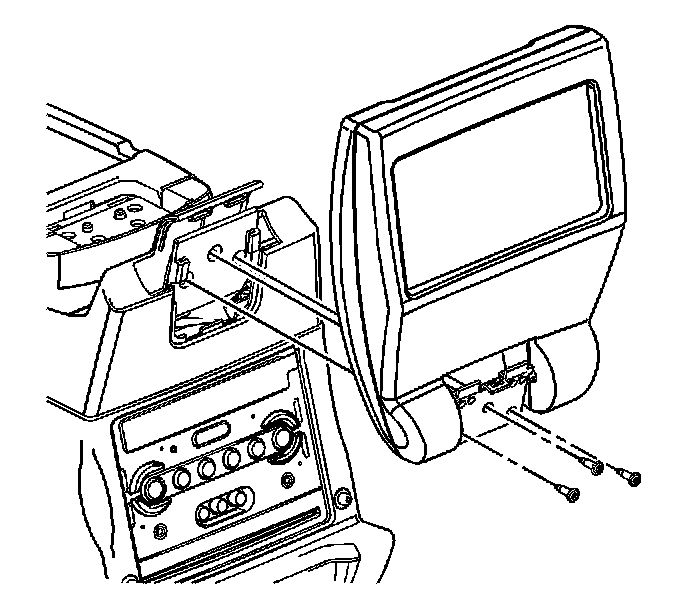

VIDEO DISPLAY REPLACEMENT

REMOVAL PROCEDURE
1. Remove the hinge cover.
2. Remove the video display hinge screws.
3. Remove the video display wire harness connector.




4. Remove the video display.

INSTALLATION PROCEDURE




1. Install the video display.
2. Install the video display wire harness connector.
3. Install the video display hinge screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 1 N.m (10 lb in).

4. Install the hinge cover.
