DVD Player: Service and Repair

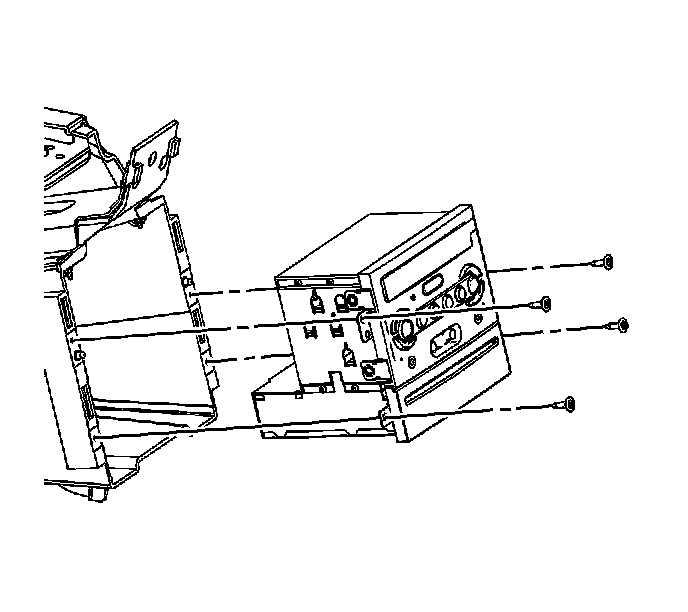

DVD PLAYER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the console rear trim plate.
2. Remove the DVD screws.




3. Remove the DVD player.
4. Remove the DVD player wire harness connectors.

INSTALLATION PROCEDURE
1. Install the DVD player wire harness connectors.




2. Install the DVD player.
3. Install the DVD screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 1 N.m (10 lb in).

4. Install the console rear trim plate.
