Rear (Extended Sedan)

SEAT BELT RETRACTOR REPLACEMENT - REAR (EXTENDED SEDAN)

REMOVAL PROCEDURE
1. Remove the rear quarter lower trim panel.

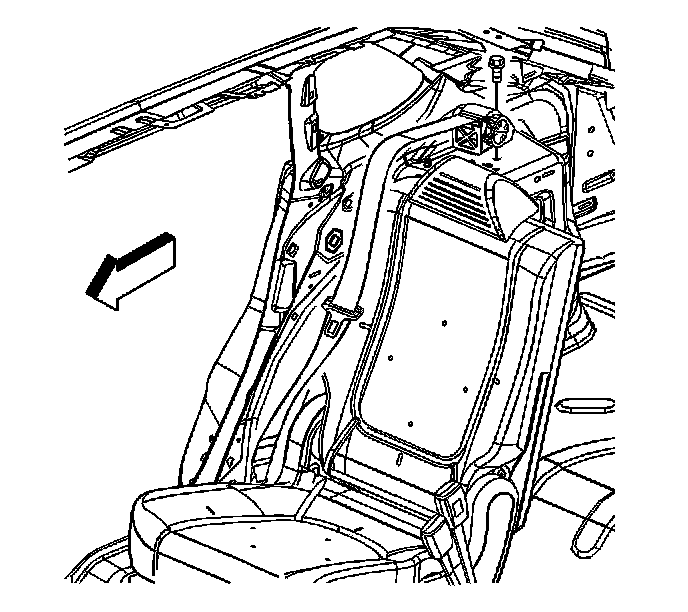

2. Remove the retractor fastener.
3. Remove the retractor from the vehicle.

INSTALLATION PROCEDURE




1. Install the seat belt retractor to the vehicle.
2. Install the fastener to the seat belt retractor.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fastener to 35 N.m (25 lb ft).

3. Install the rear quarter lower trim panel.
