Center Rear (Extended Sedan)

SEAT BELT BUCKLE REPLACEMENT - CENTER REAR (EXTENDED SEDAN)

REMOVAL PROCEDURE
1. Remove the 40% side rear seat.

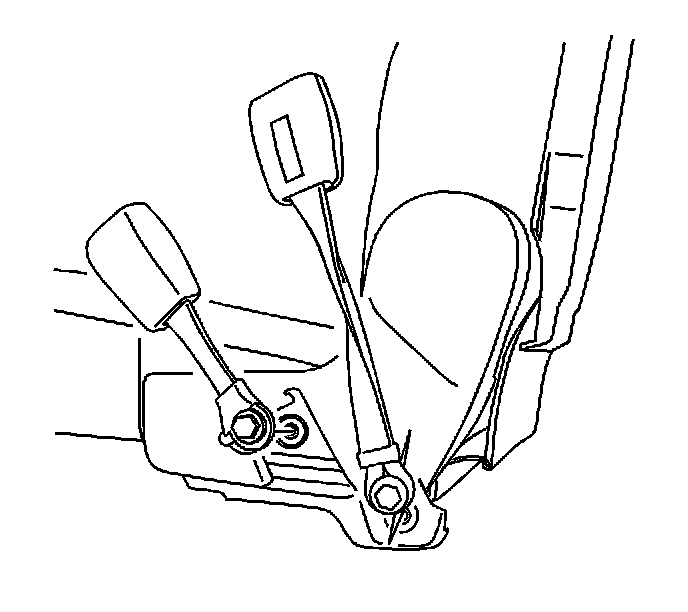

2. Remove the anchor from the center seat belt buckle.
3. Remove the center seat belt buckle from the seat assembly.

INSTALLATION PROCEDURE
1. Install the center seat belt buckle to the seat assembly.




2. Install the anchor to the outer seat belt buckle.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the anchor to 35 N.m (25 lb ft).

3. Install the 40% side rear seat.
