Side Air Bag: Locations

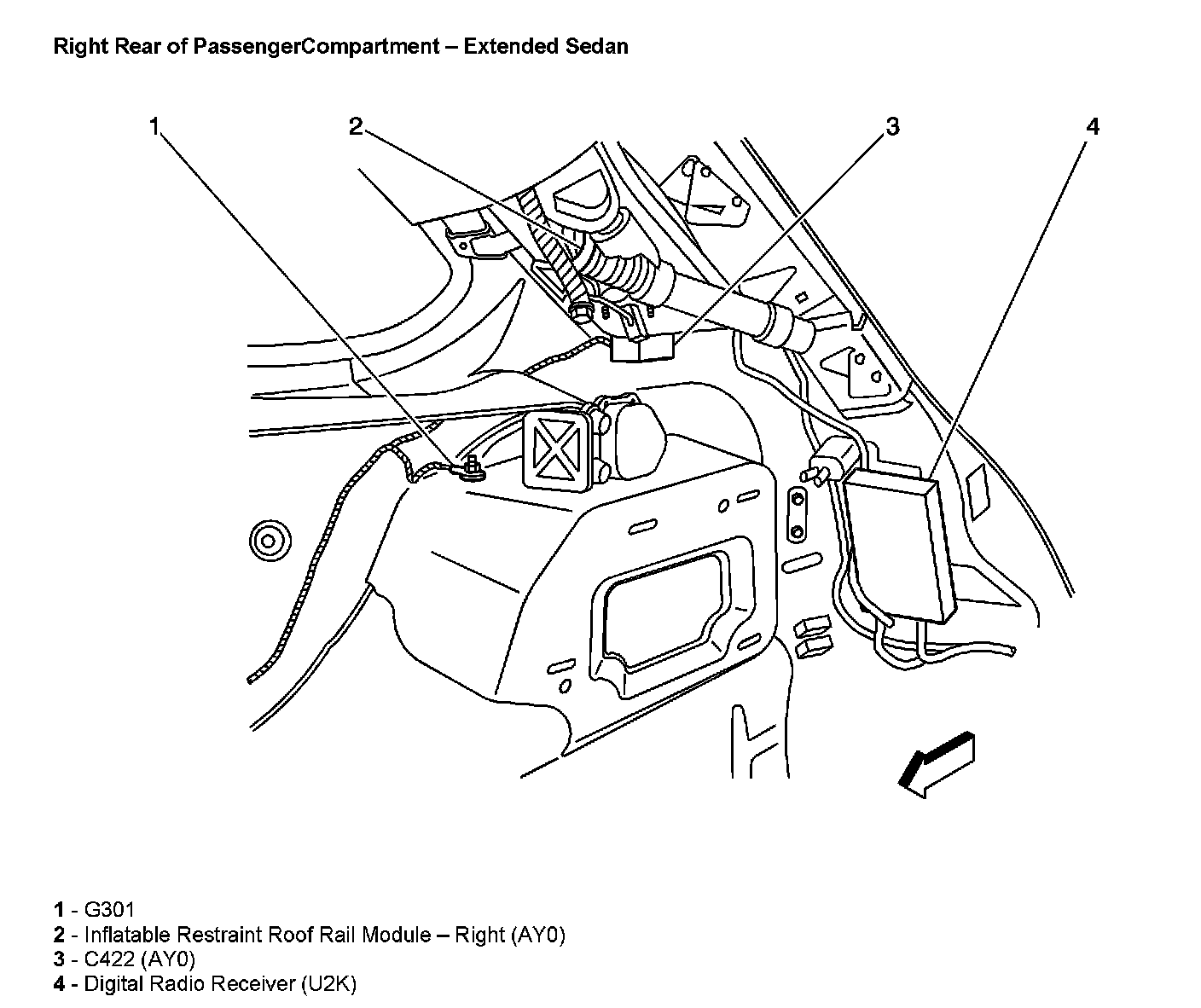

Right Rear Of PassengerCompartment - Extended Sedan:

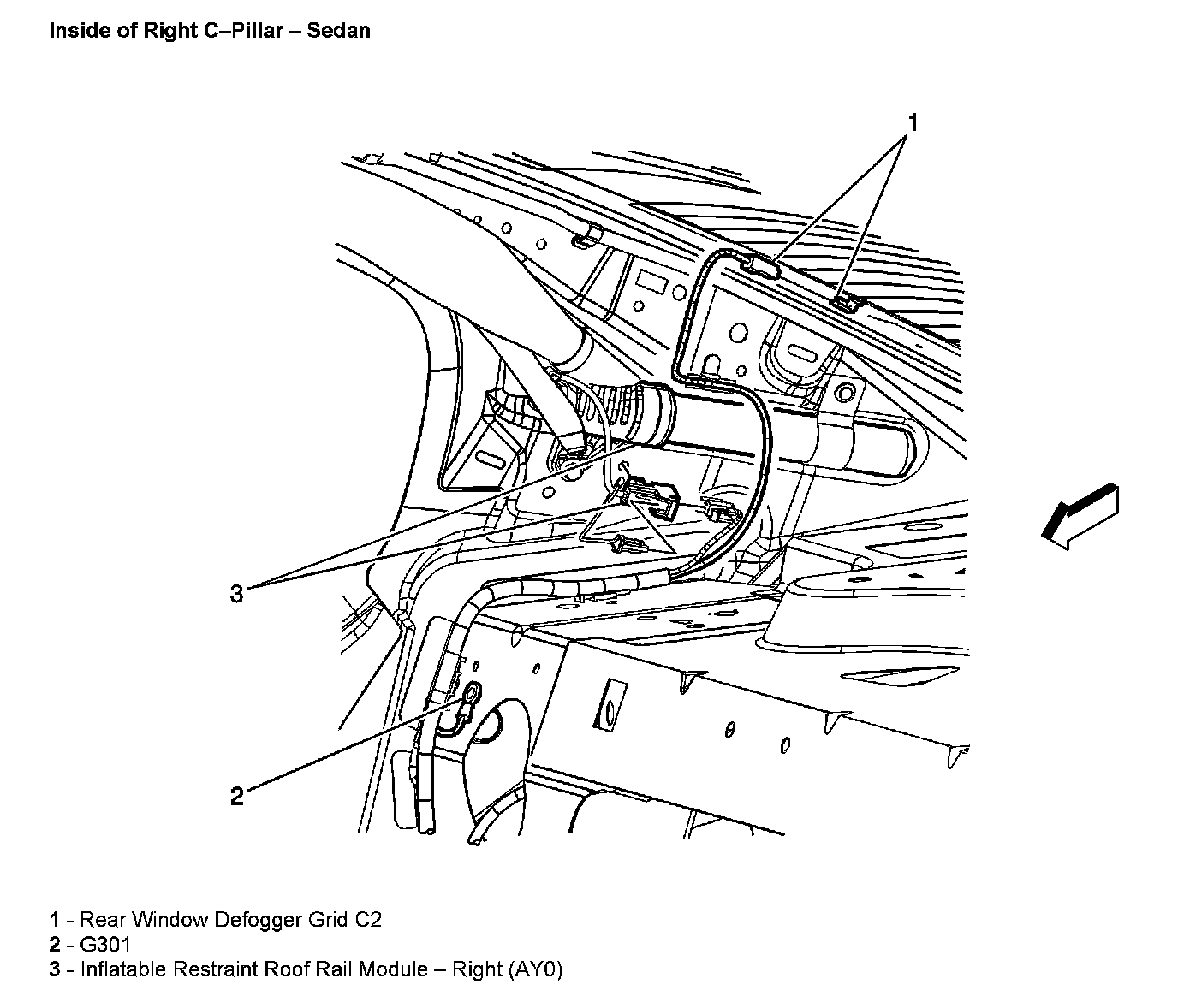

Inside Of Right C - Pillar - Sedan:

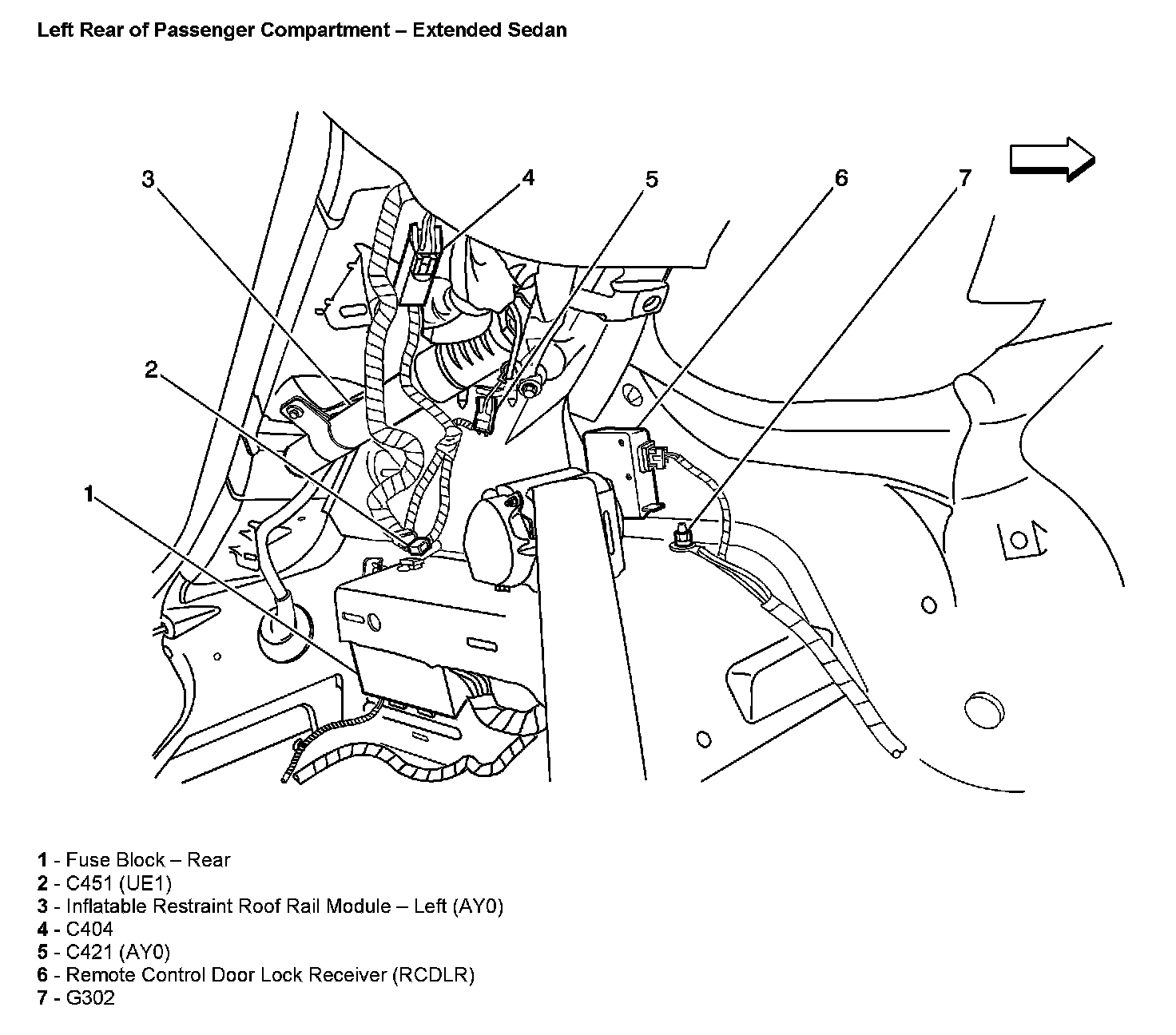

Left Rear Of Passenger Compartment - Extended Sedan:

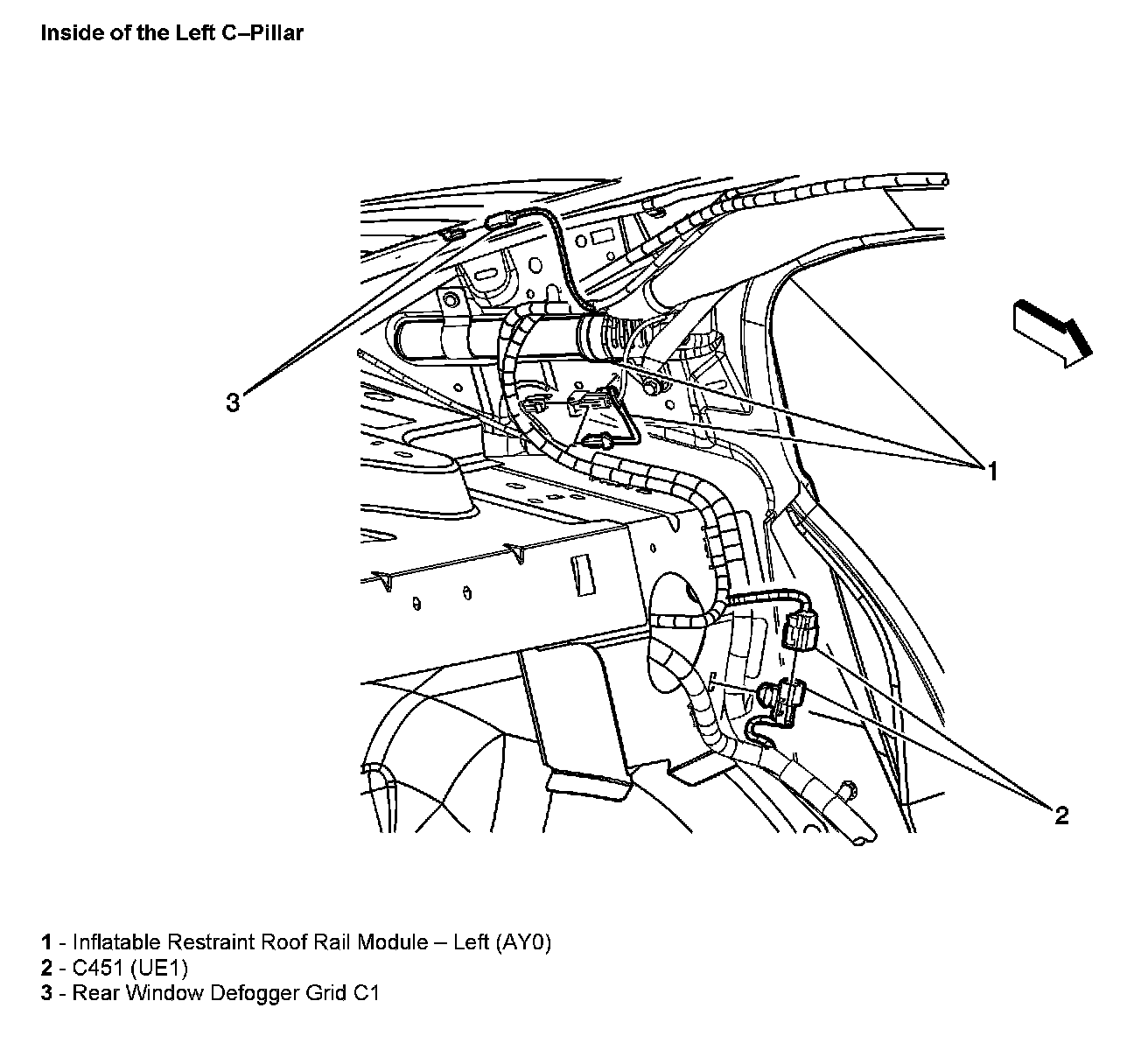

Inside Of The Left C - Pillar:

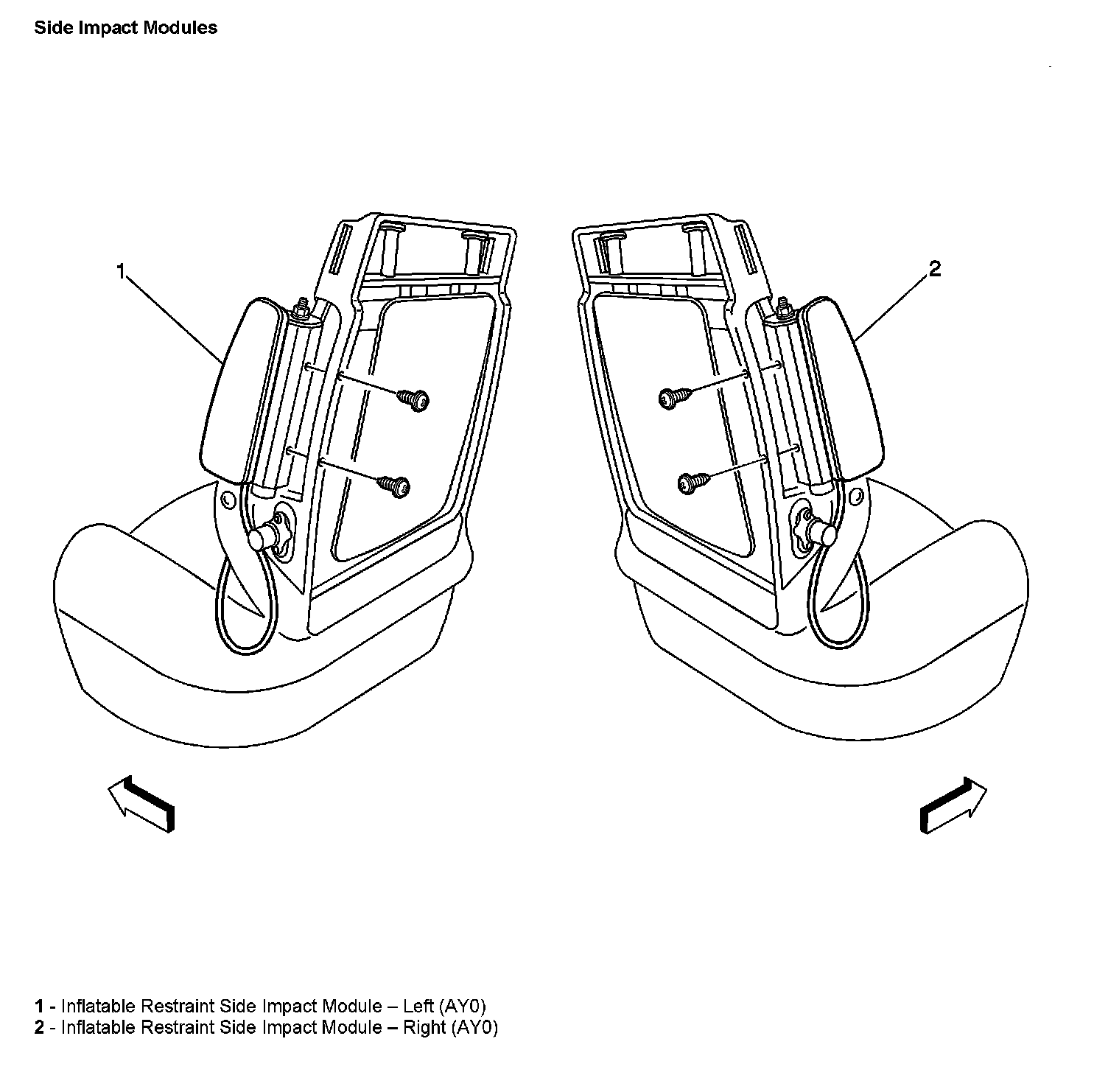

Side Impact Modules:
