Home >> Chevrolet >> 2005 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Actuator >> Locations

Electronic Throttle Actuator: Locations

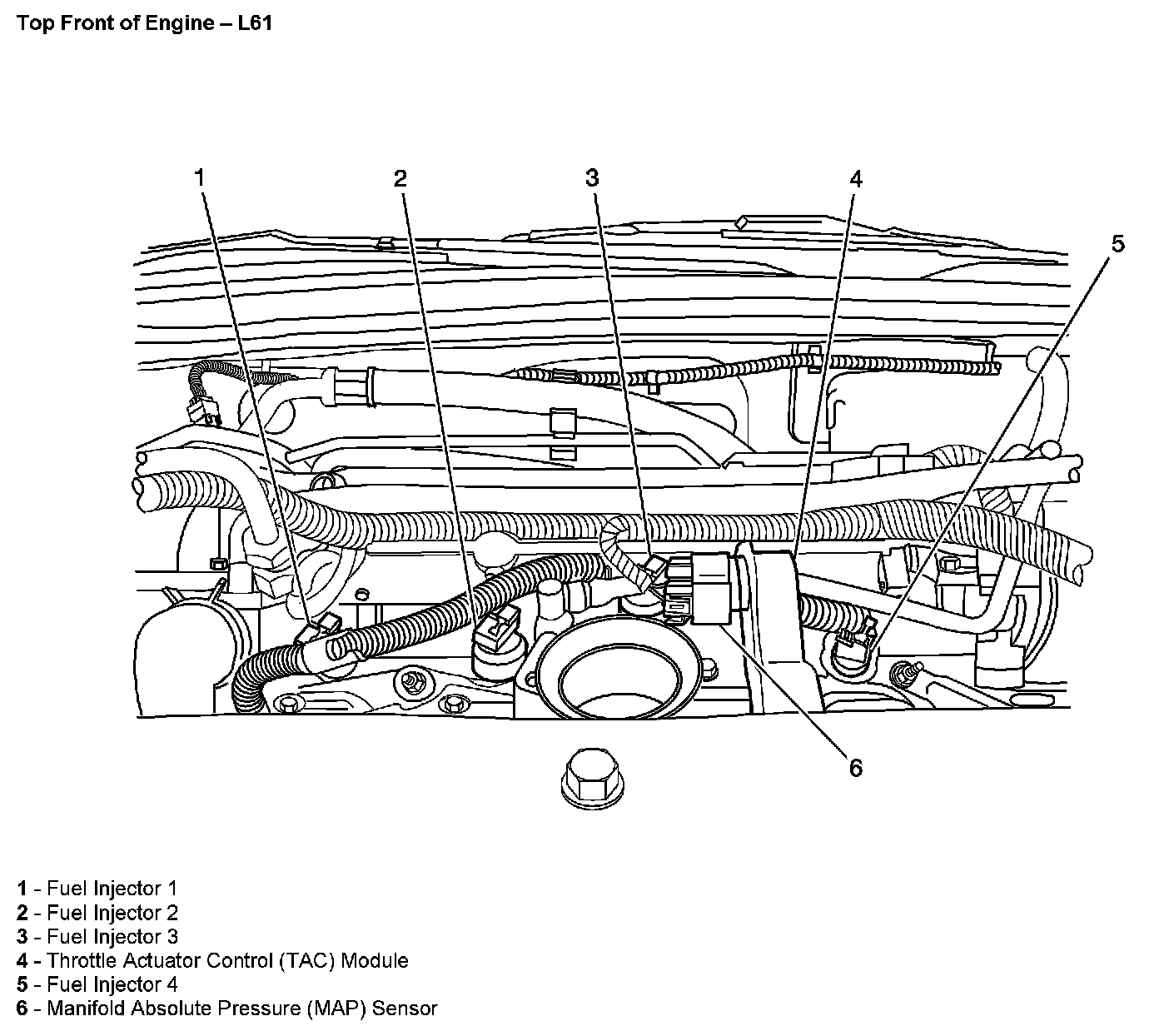

Top Front of Engine:
