Instrument Panel (I/P) Vent - Upper Right

AIR OUTLET DUCT REPLACEMENT - INSTRUMENT PANEL (I/P) - UPPER RIGHT

REMOVAL PROCEDURE
1. Remove the HVAC module assembly.

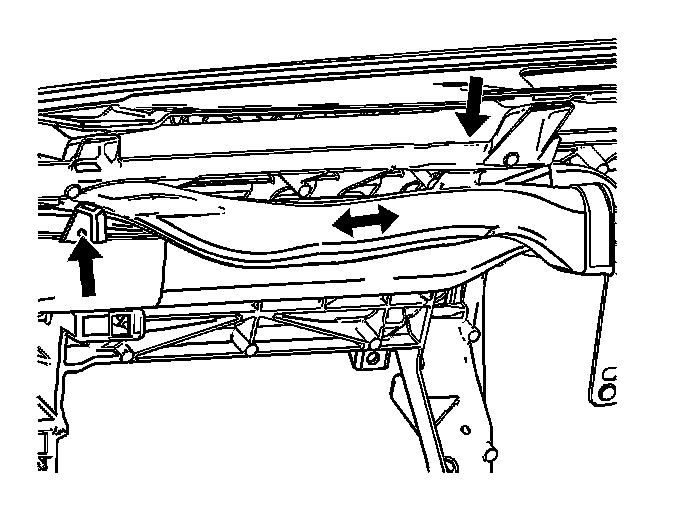

2. Remove the right hand side window defogger duct screws.




3. Remove the right hand side window defogger duct.

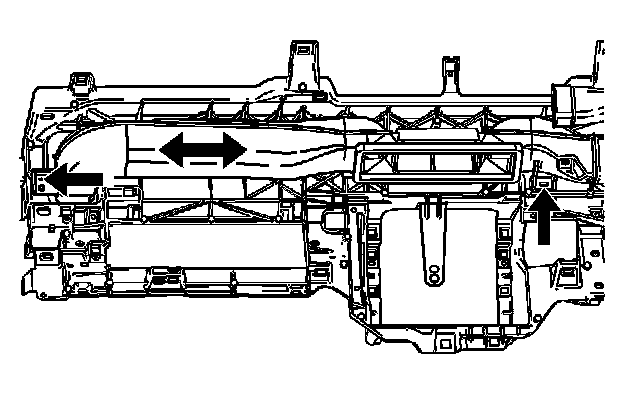

4. Disconnect the wire harness clip at the right air outlet duct.
5. Remove the right air outlet duct screws.




6. Remove the right air outlet duct.

INSTALLATION PROCEDURE

IMPORTANT: Align the right air outlet duct to the right outlet duct extension.




1. Install the right air outlet duct.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the right air outlet duct screws.

Tighten
Tighten the right air outlet duct screws to 2.5 N.m (22 lb in).

3. Connect the wire harness clip at the right air outlet duct.
4. Install the right hand side window defogger duct.




5. Install the right hand side window defogger duct screws.

Tighten
Tighten the screws to 2.5 N.m (22 lb in).

6. Install the HVAC module assembly.
