Defogger Outlet Duct - Side Window, RH

DEFOGGER OUTLET DUCT REPLACEMENT - SIDE WINDOW, RH

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) assembly.

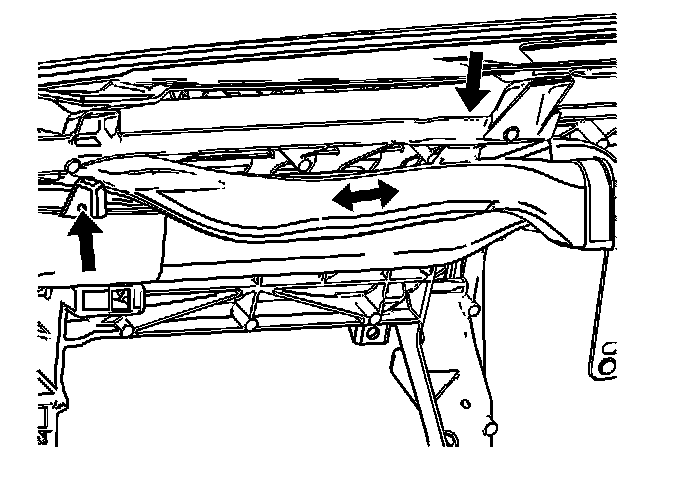

2. Remove the right hand side window defogger duct screws.




3. Remove the right hand side window defogger duct.

INSTALLATION PROCEDURE

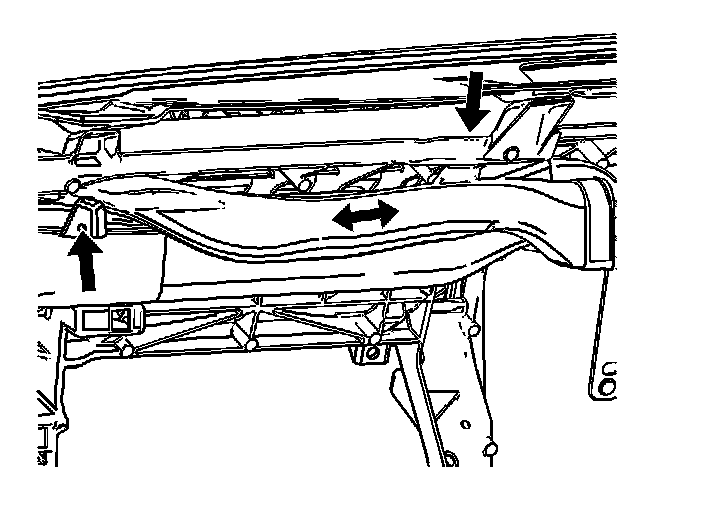

1. Install the right hand side window defogger duct.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the right hand side window defogger duct screws.

Tighten
Tighten the screws to 2.5 N.m (22 lb in).

3. Install the I/P assembly.
