Chevrolet
>>
2005
>>
Malibu L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tail Lamp
>>
Tail Lamp - Connector
Tail Lamp - Connector

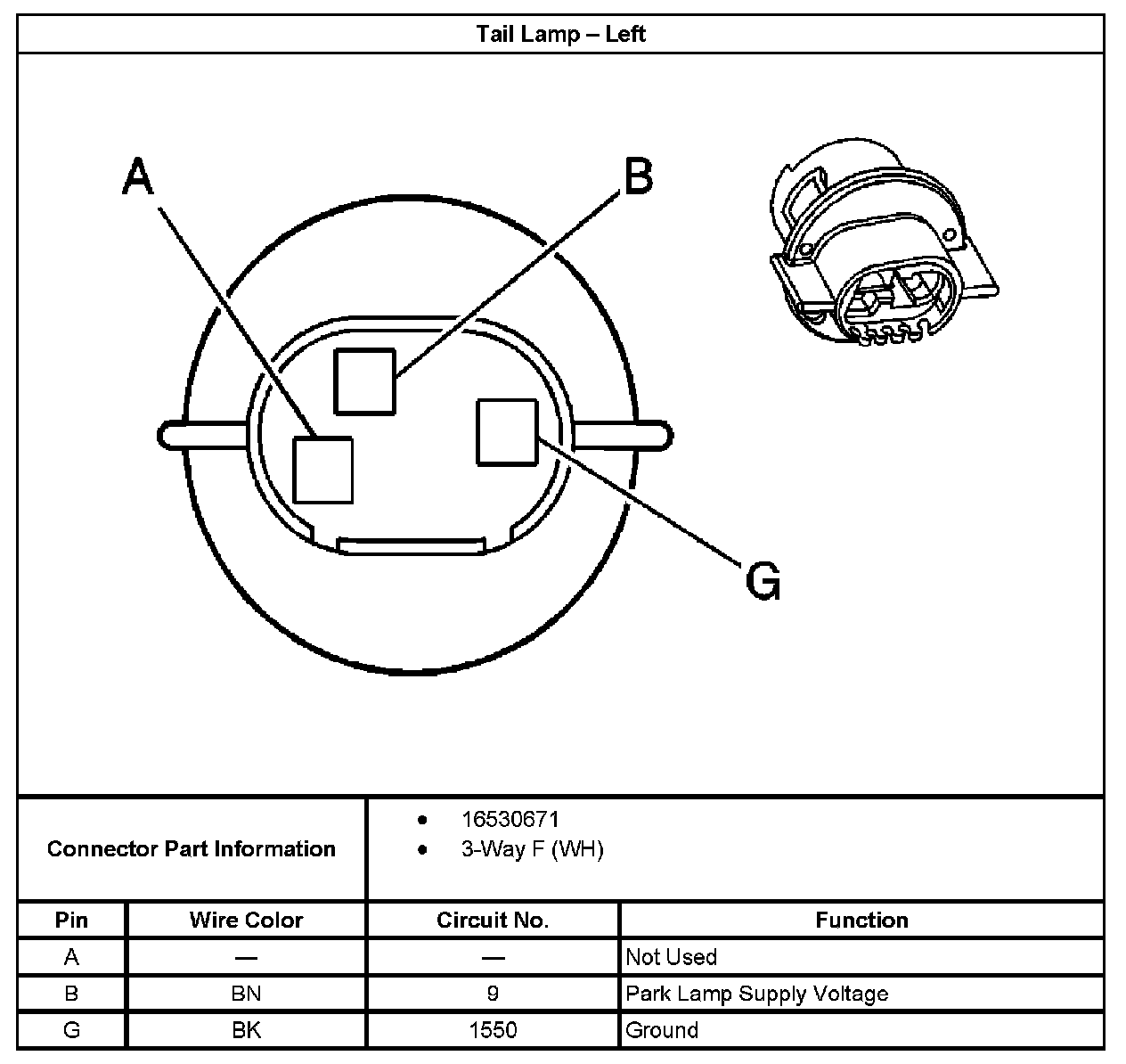

Tail Lamp - Left:

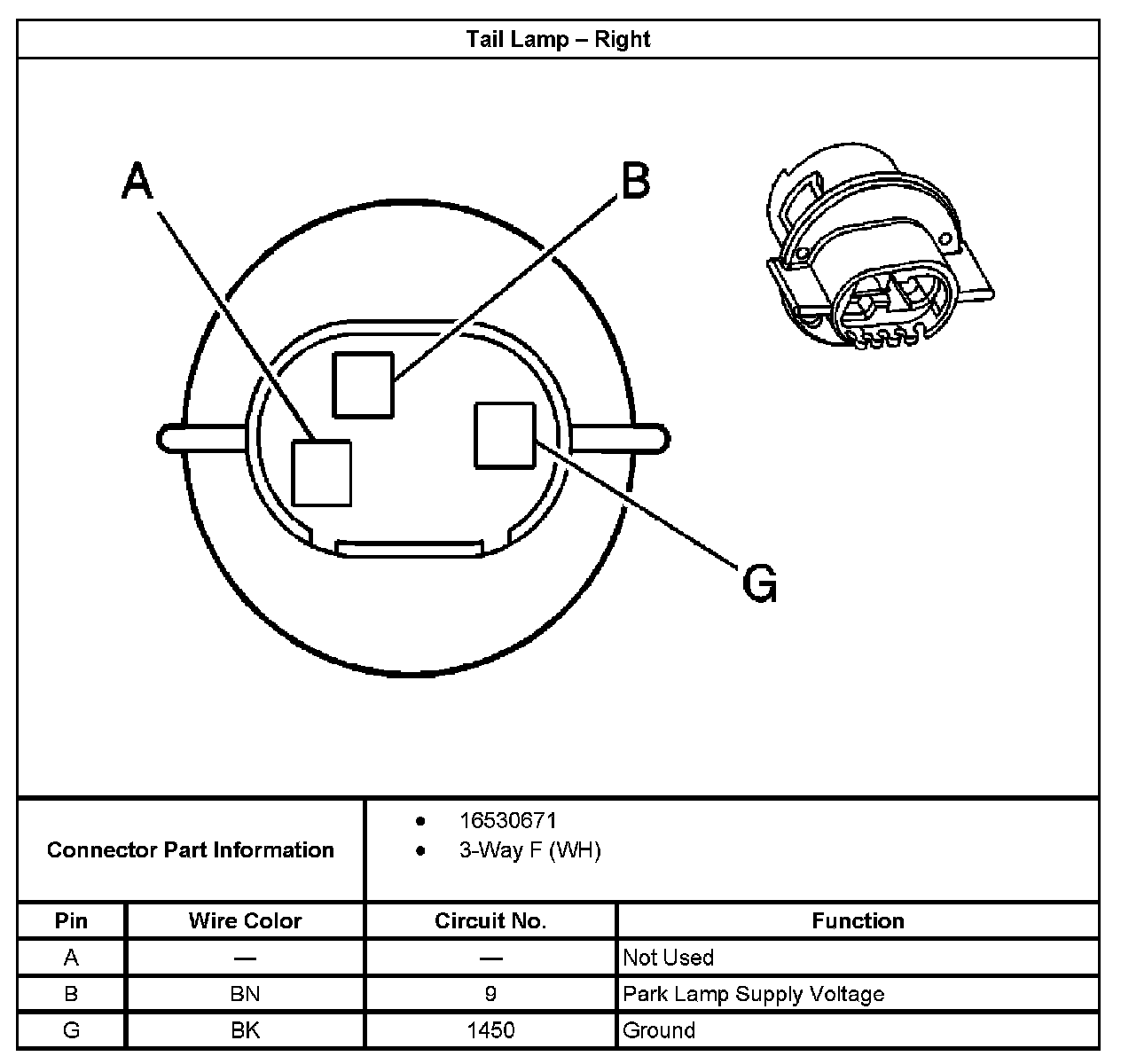

Tail Lamp - Right:
