Seat Temperature Switch
Seat Temperature Switch
Heated Seat Switch - Driver (With RPO Code KA1):

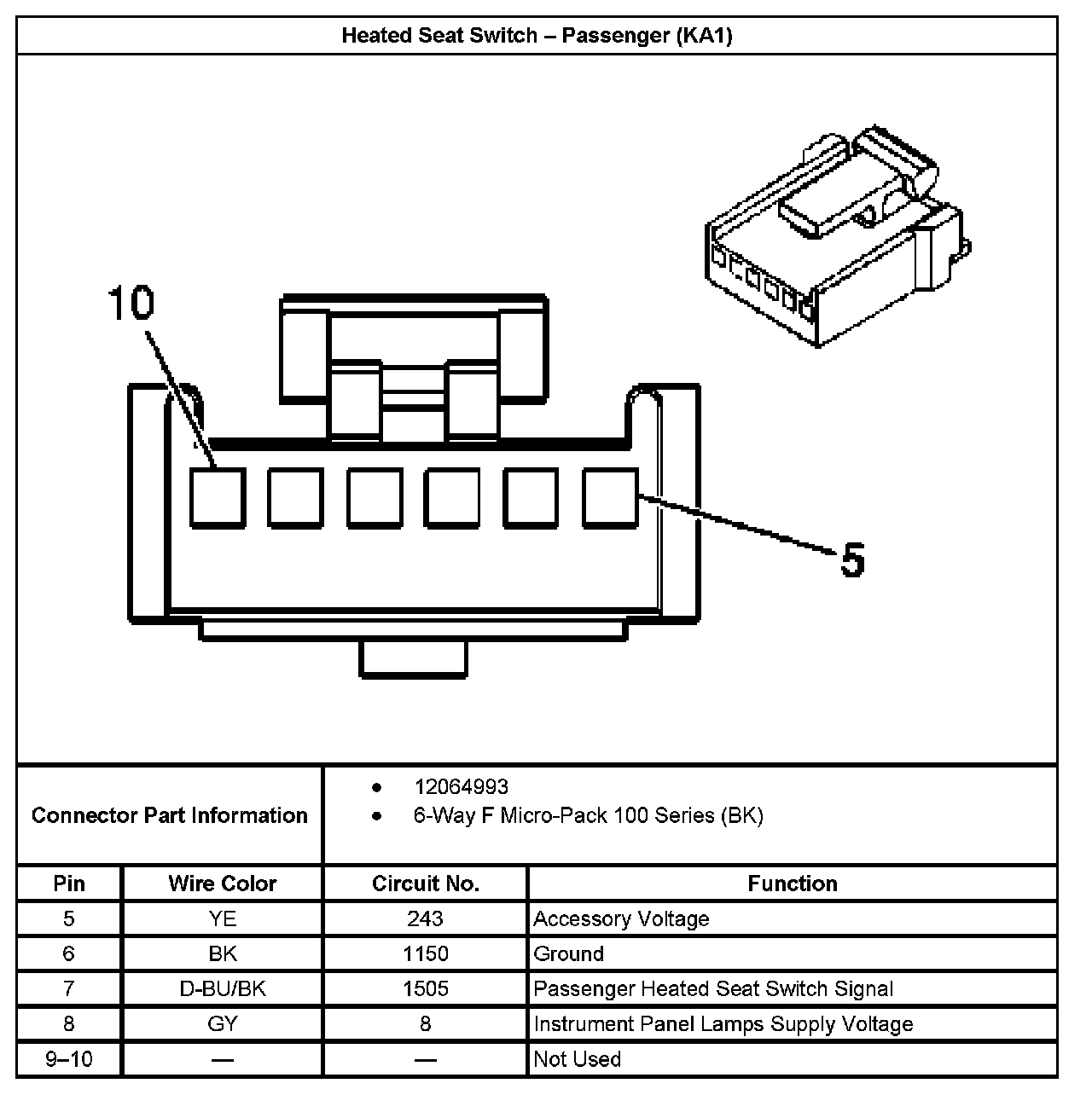

Heated Seat Switch - Passenger (With RPO Code KA1):
