Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2005
>>
Malibu L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C400 - C499
>>
C413
C413

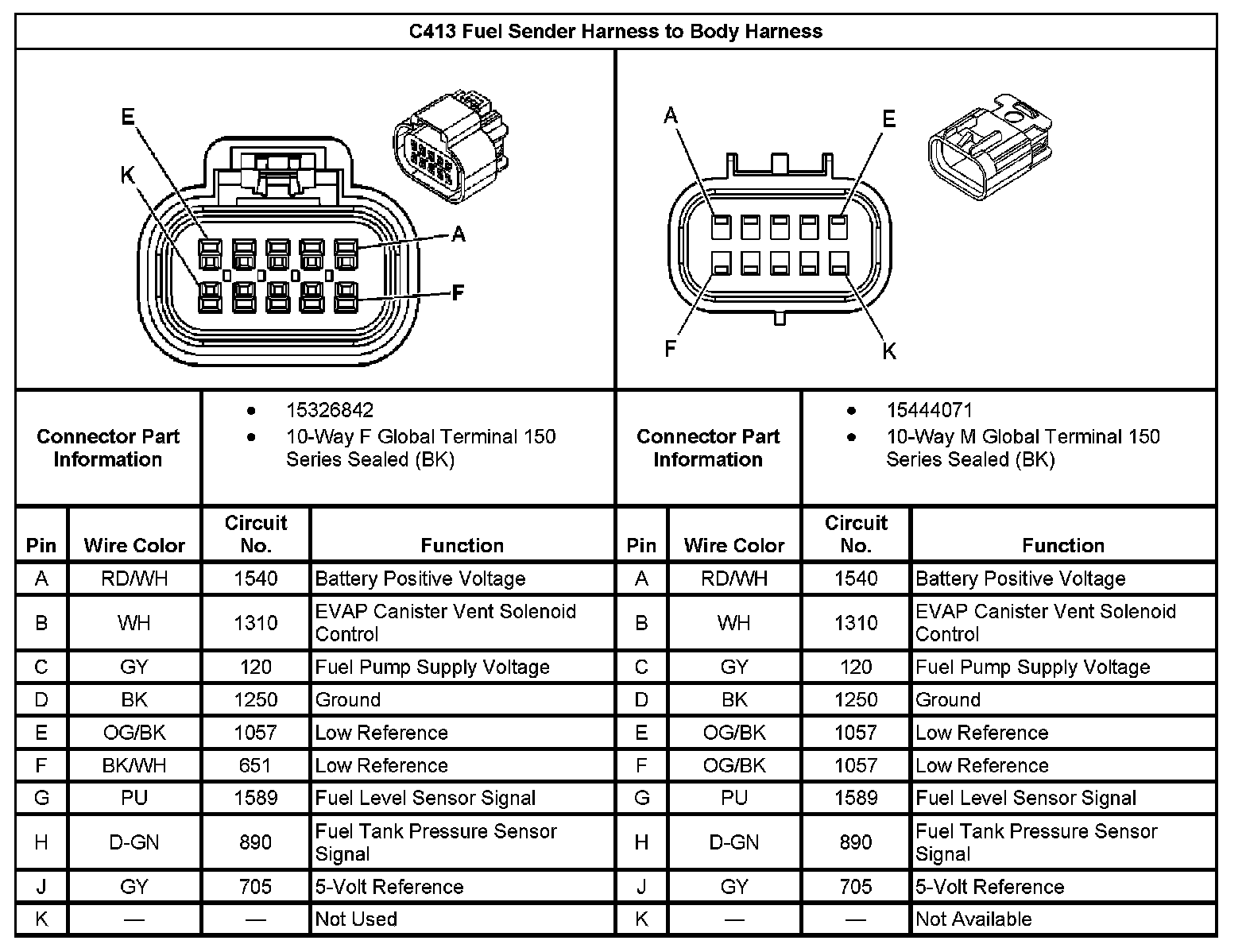

C413 Fuel Sender Harness to Body Harness:
