Home >> Chevrolet >> 2005 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C300 - C399 >> C320

C320

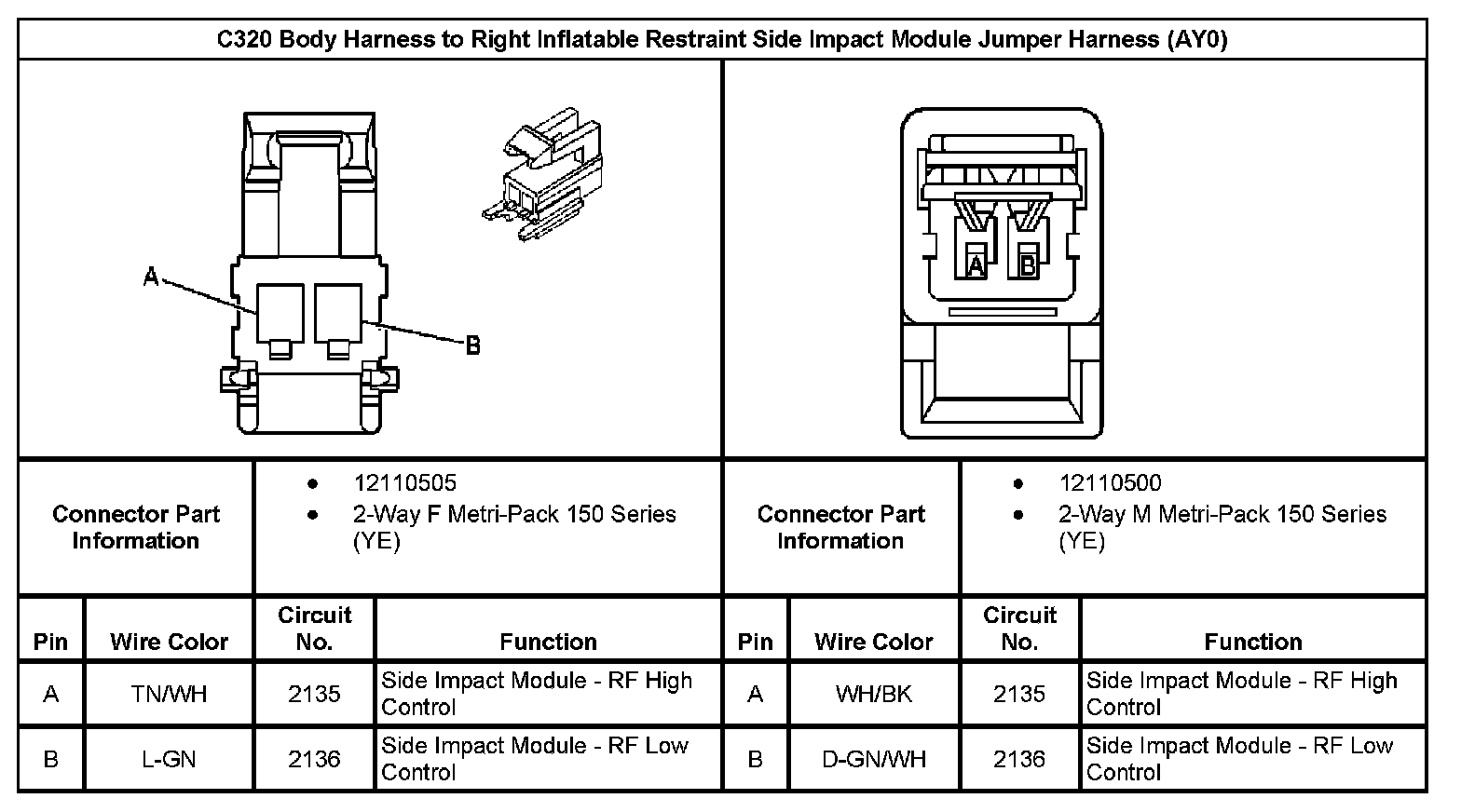

C320 Body Harness to Right Inflatable Restraint Side Impact Module Jumper Harness (With RPO Code AY0):
