Chevrolet
>>
2005
>>
Malibu L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Discharge Air Temperature Sensor / Switch, HVAC
Discharge Air Temperature Sensor / Switch, HVAC

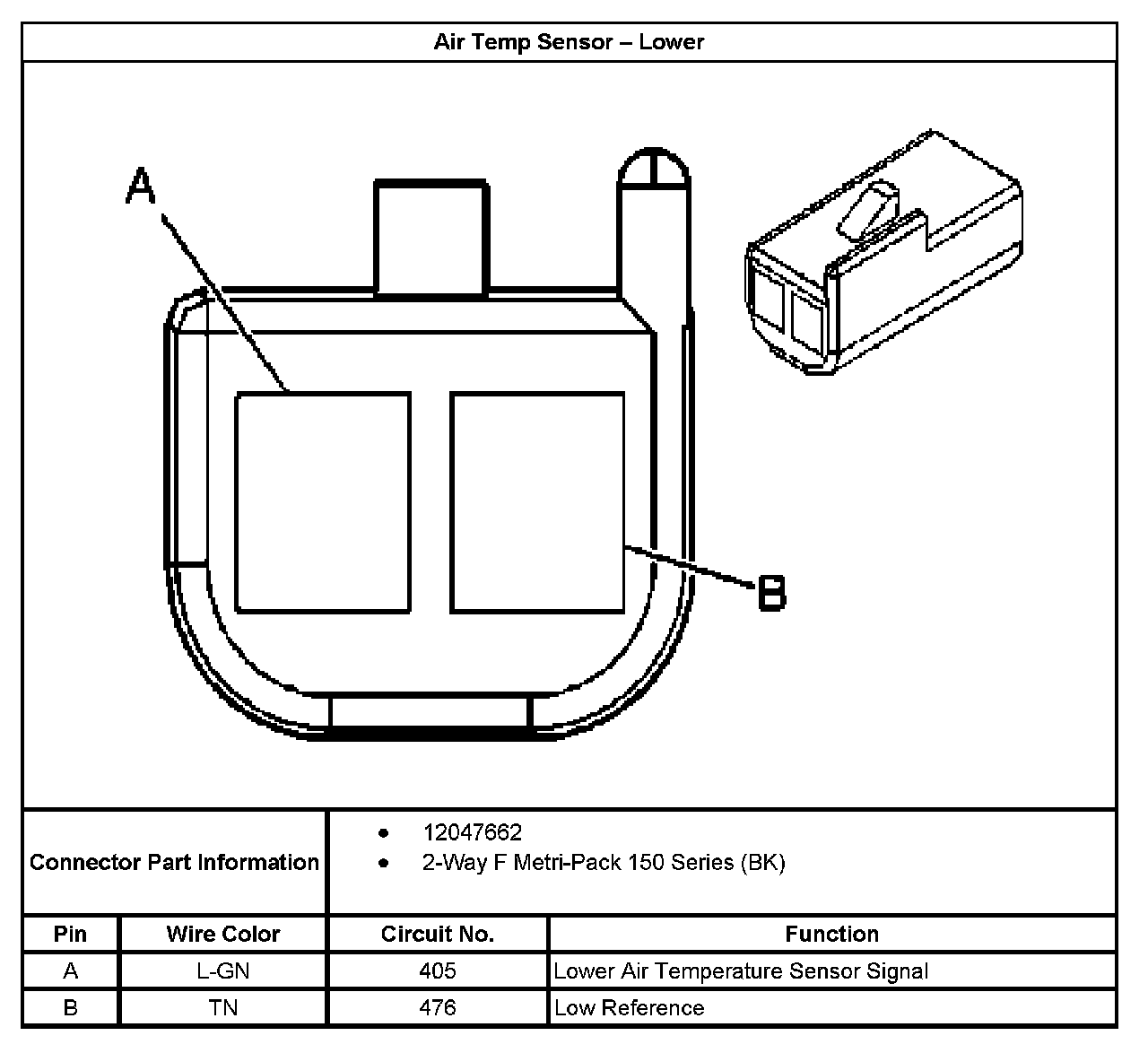

Air Temp Sensor - Lower:

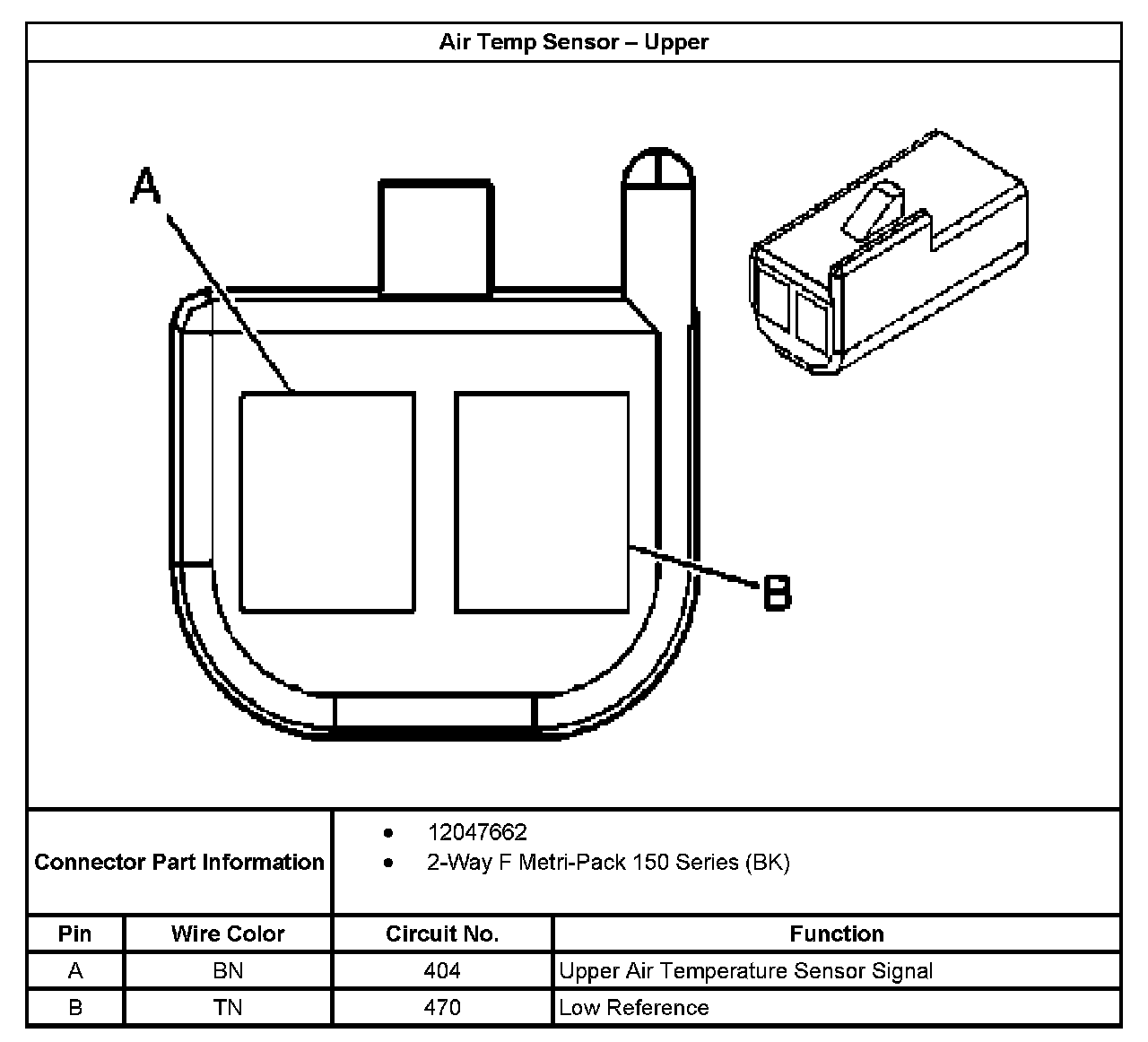

Air Temp Sensor - Upper:
