Clockspring Assembly / Spiral Cable, Air Bag
Clockspring Assembly / Spiral Cable, Air Bag
Inflatable Restraint Steering Wheel Module Coil C1:

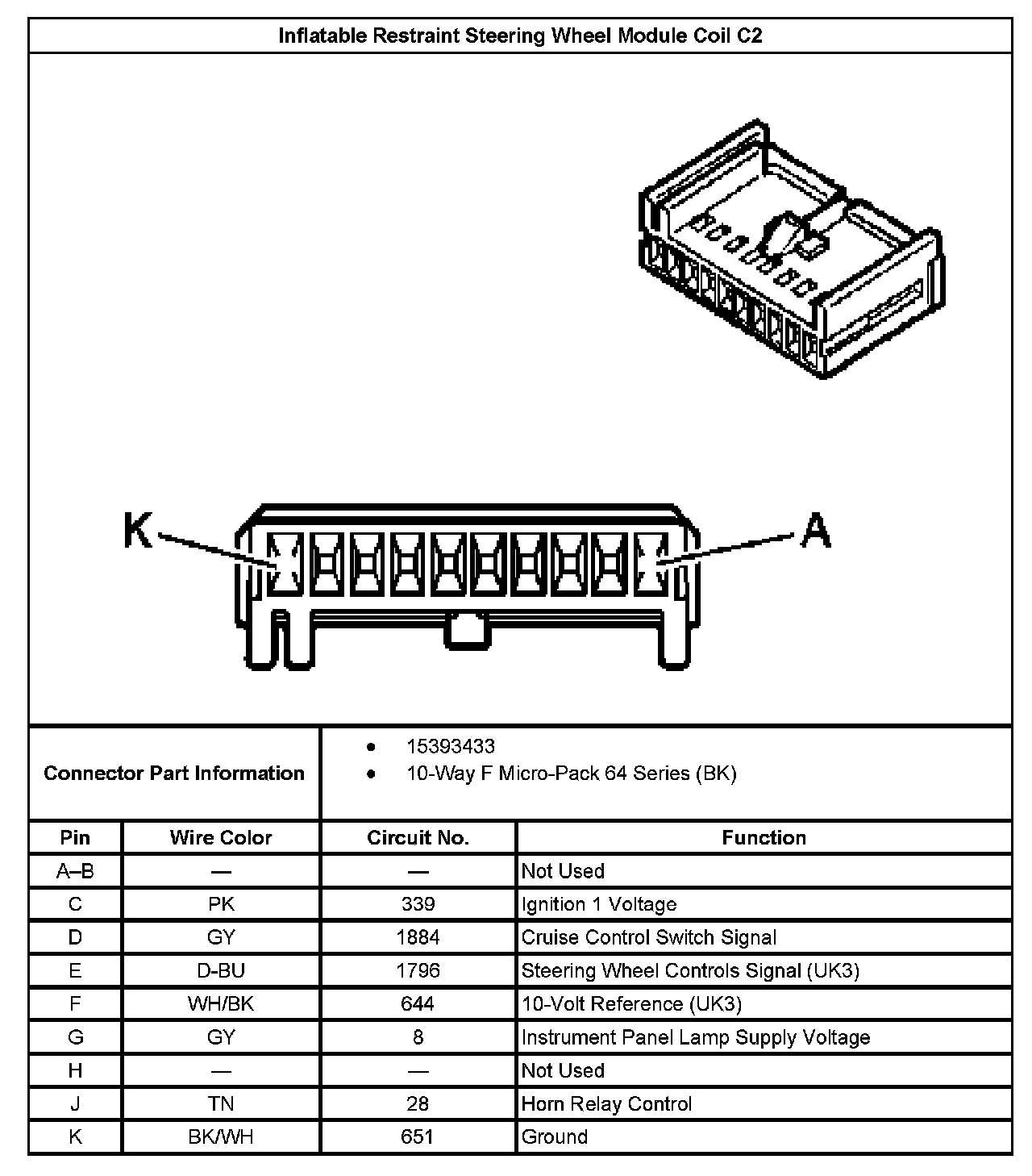

Inflatable Restraint Steering Wheel Module Coil C2:

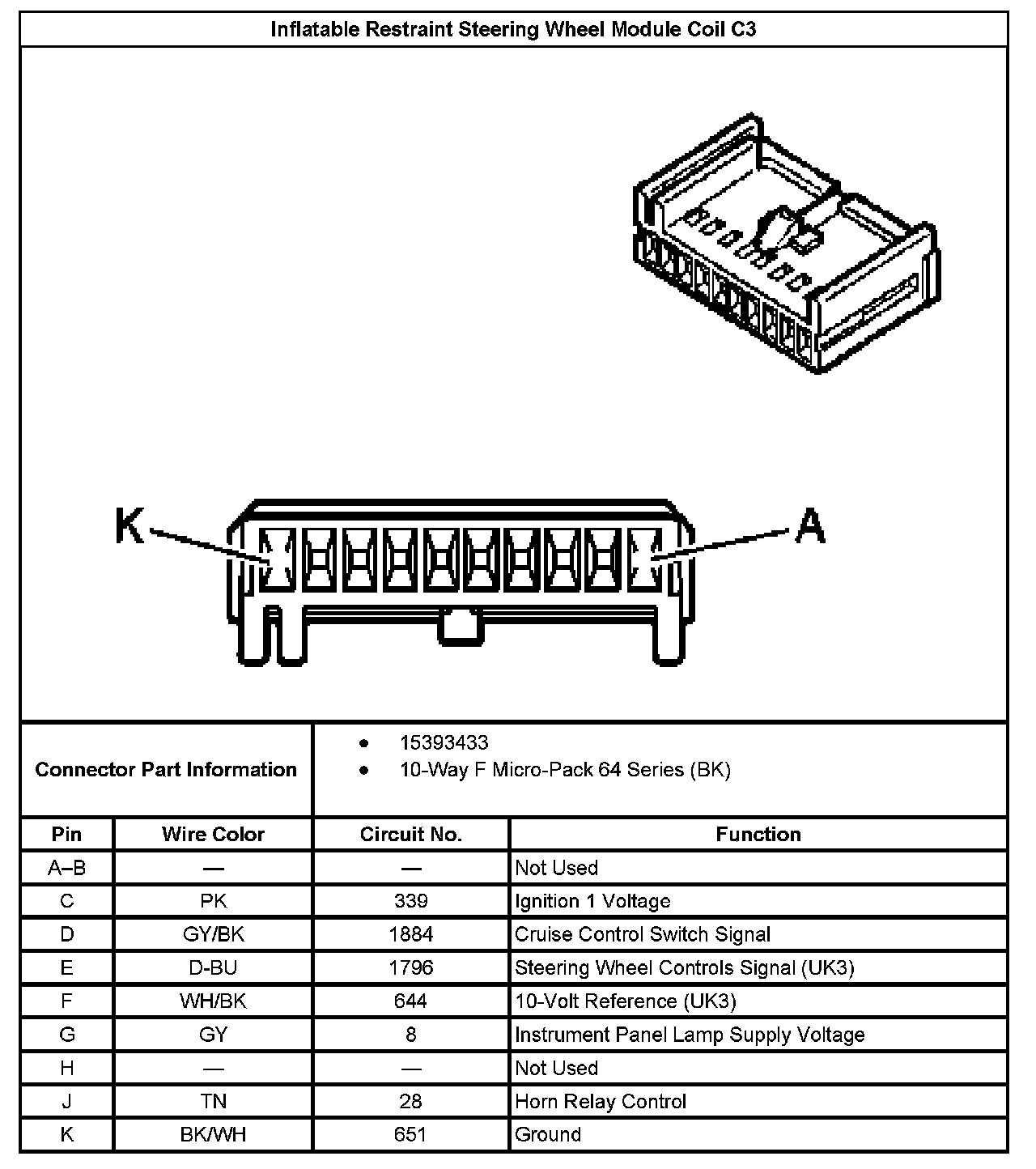

Inflatable Restraint Steering Wheel Module Coil C3:
