C214

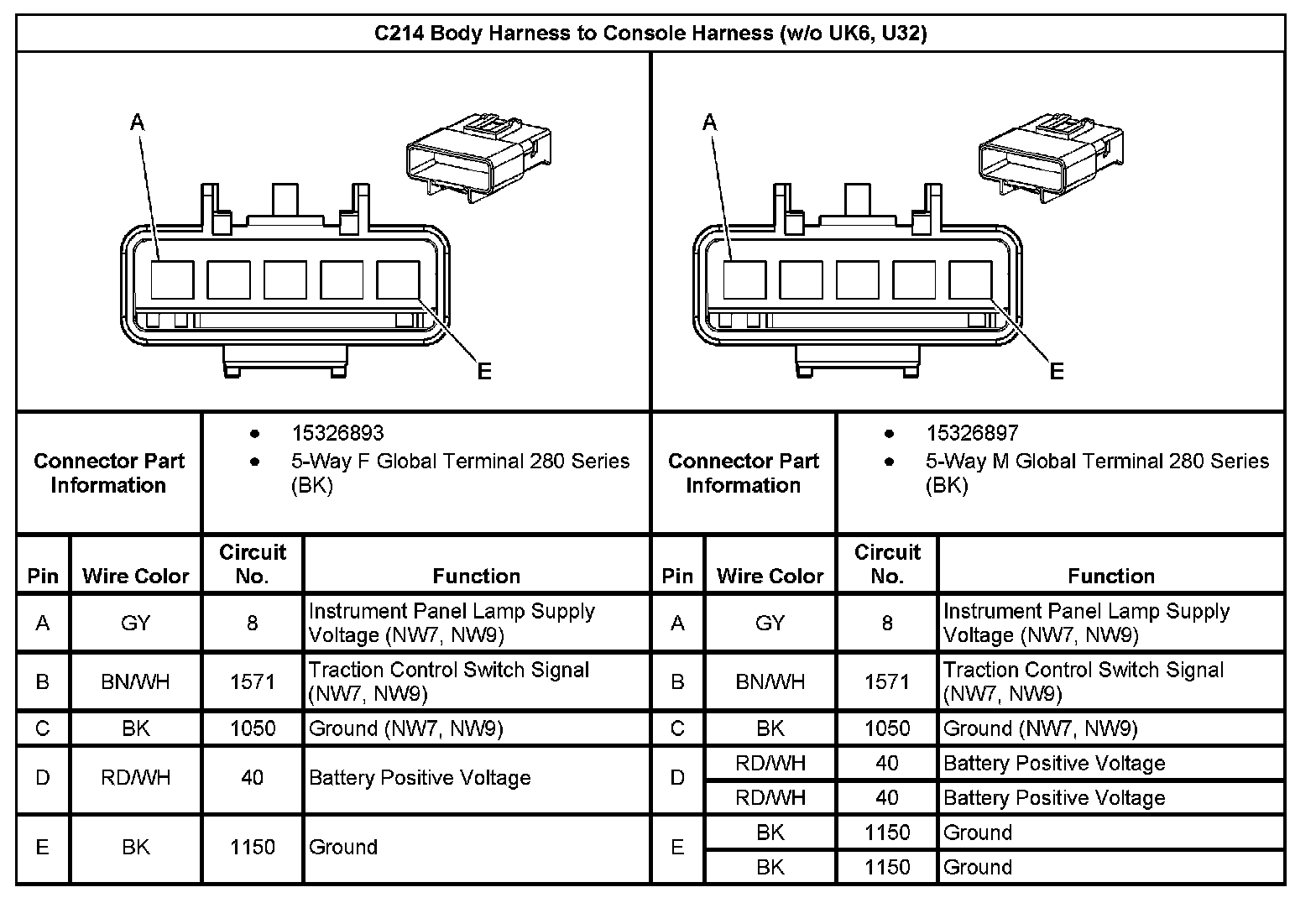

C214 Body Harness to Console Harness (Without RPO Code UK6,U32):

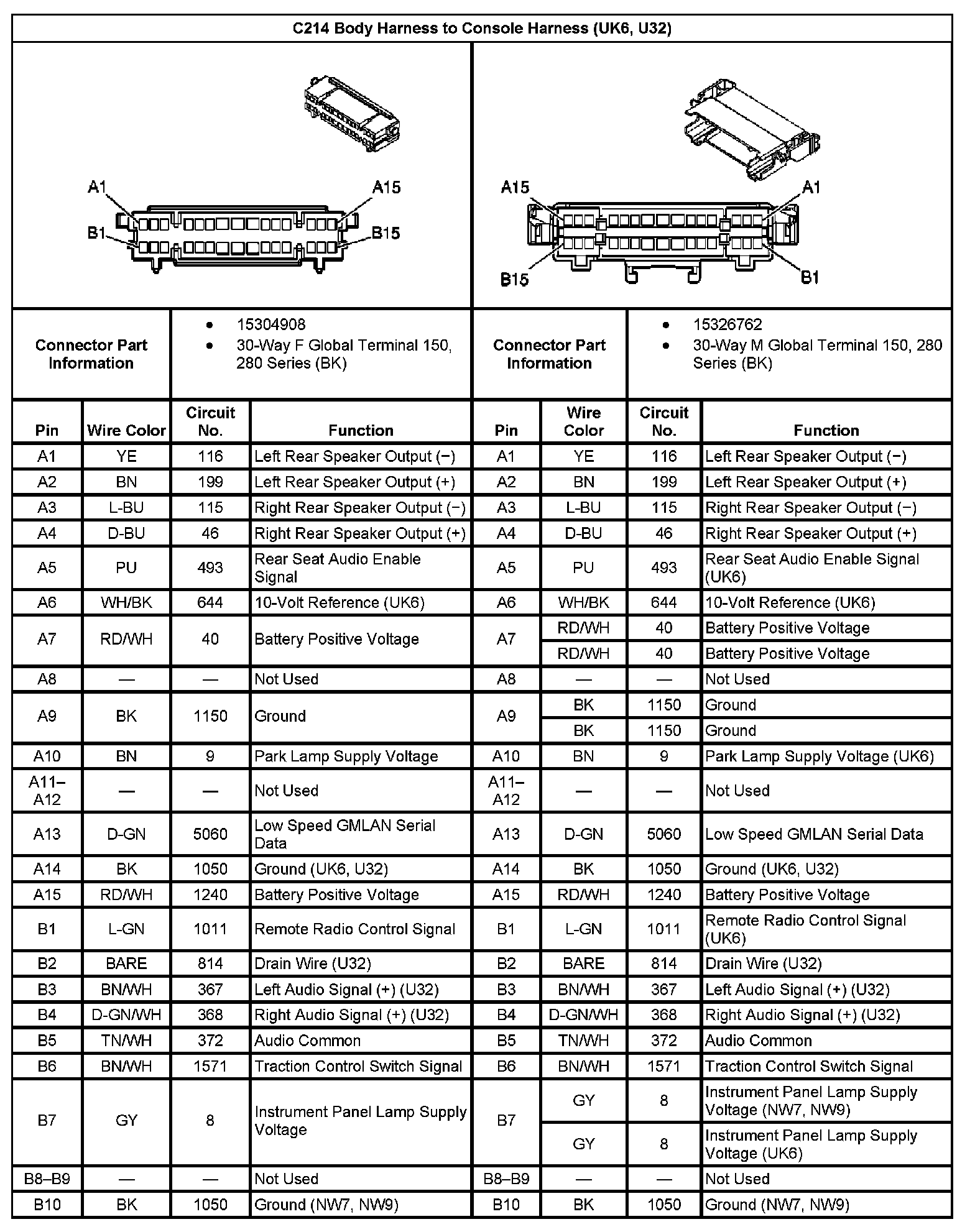

C214 Body Harness to Console Harness(With RPO Code UK6,U32) Part 1:

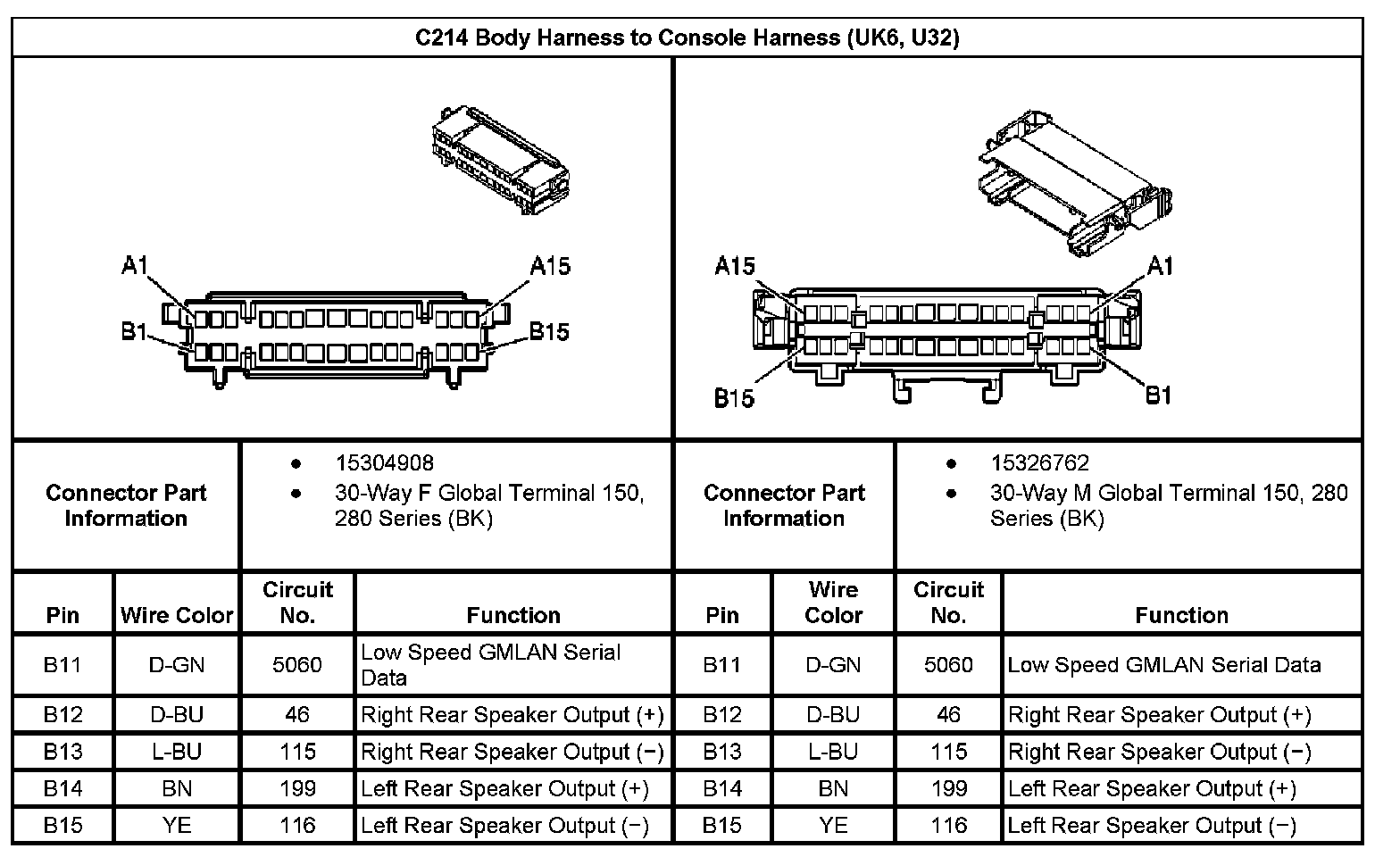

C214 Body Harness to Console Harness (With RPO Code UK6,U32) Part 2:
