Home
>>
Chevrolet
>>
2005
>>
Malibu L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Power Outlet
>>

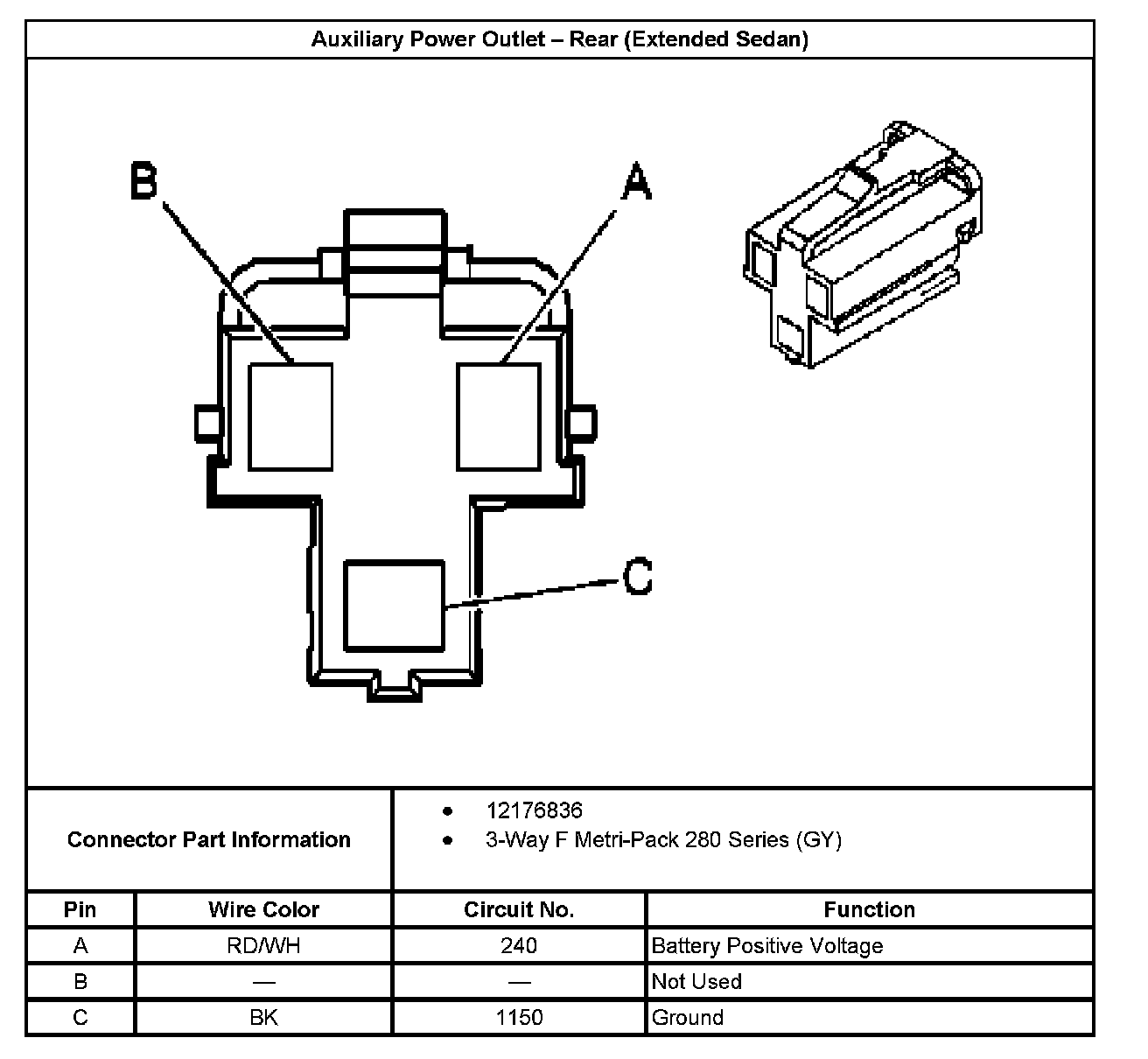

Auxiliary Power Outlet - Rear (Extended Sedan)
Auxiliary Power Outlet - Rear (Extended Sedan)
Auxiliary Power Outlet - Rear (Extended Sedan):
