Hydraulic System: Locations

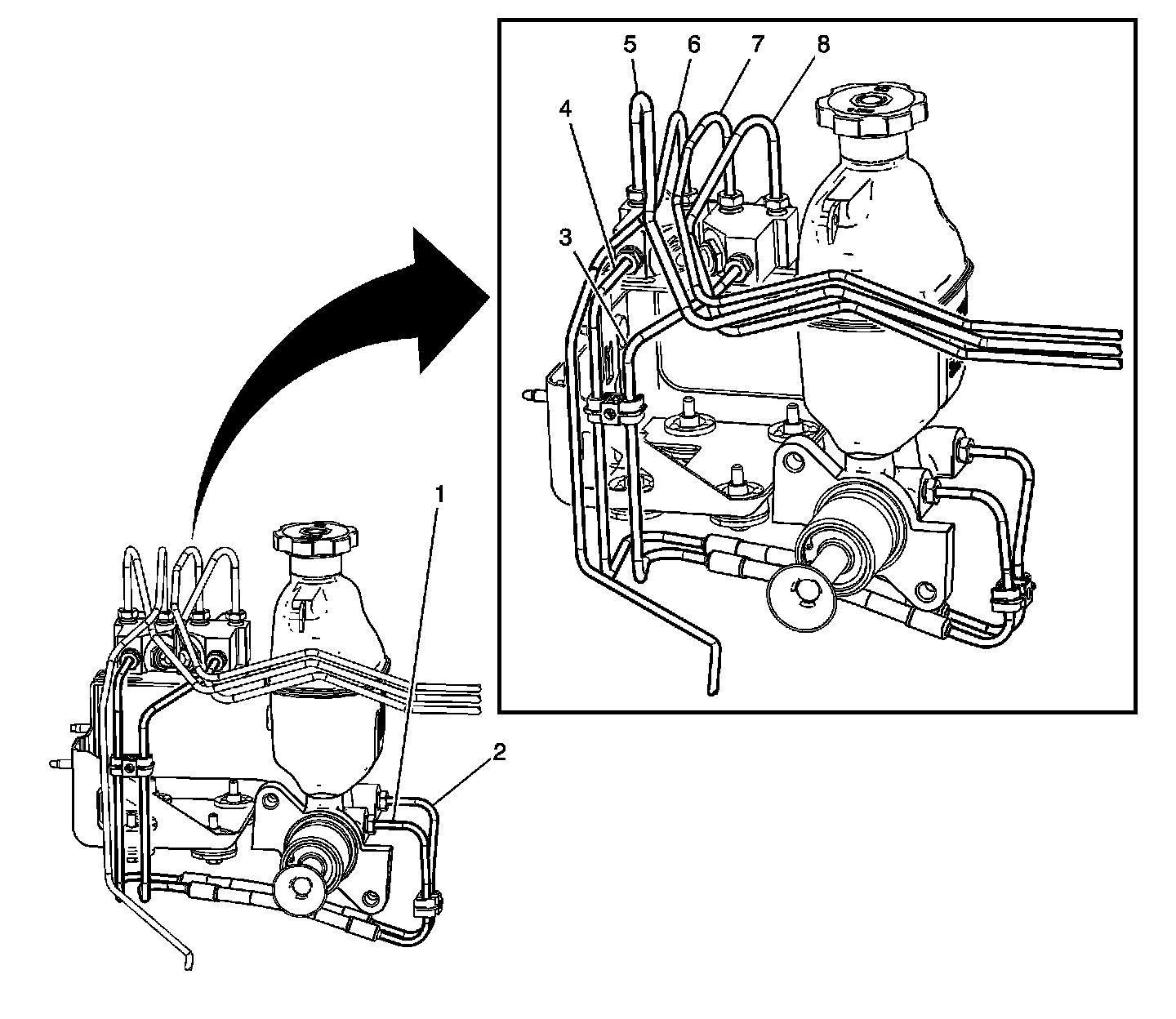

Hydraulic Brake Pipe Routing - Master Cylinder to ABS





1 - Master Cylinder Primary Brake Pipe
2 - Master Cylinder Secondary Brake Pipe
3 - Master Cylinder Primary Brake Pipe at BPMV
4 - Master Cylinder Secondary Brake Pipe at BPMV
5 - BPMV Brake Pipe to RR Brake Corner
6 - BPMV Brake Pipe to LF Brake Corner
7 - BPMV Brake Pipe to RF Brake Corner
8 - BPMV Brake Pipe to LR Brake Corner

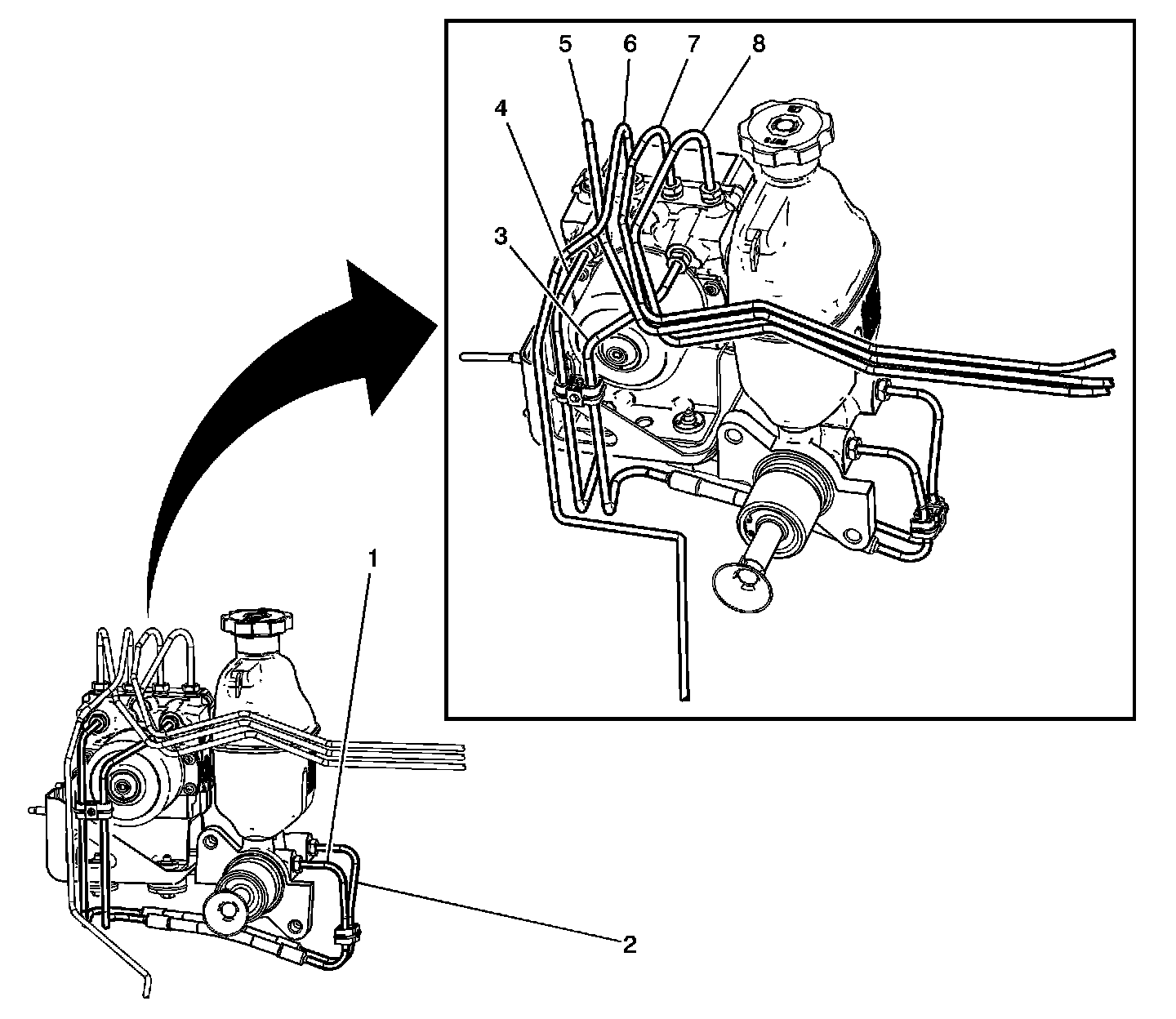

Hydraulic Brake Pipe Routing - Master Cylinder to Proportioning Valve Assembly





1 - Master Cylinder Primary Brake Pipe
2 - Master Cylinder Secondary Brake Pipe
3 - Master Cylinder Primary Brake Pipe at Proportioning Valve
4 - Master Cylinder Secondary Brake Pipe at Proportioning Valve
5 - Proportioning Valve Brake Pipe to RR Brake Corner
6 - Proportioning Valve Brake Pipe to LF Brake Corner
7 - Proportioning Valve Brake Pipe to RF Brake Corner
8 - Proportioning Valve Brake Pipe to LR Brake Corner



Hydraulic Brakes Component Views

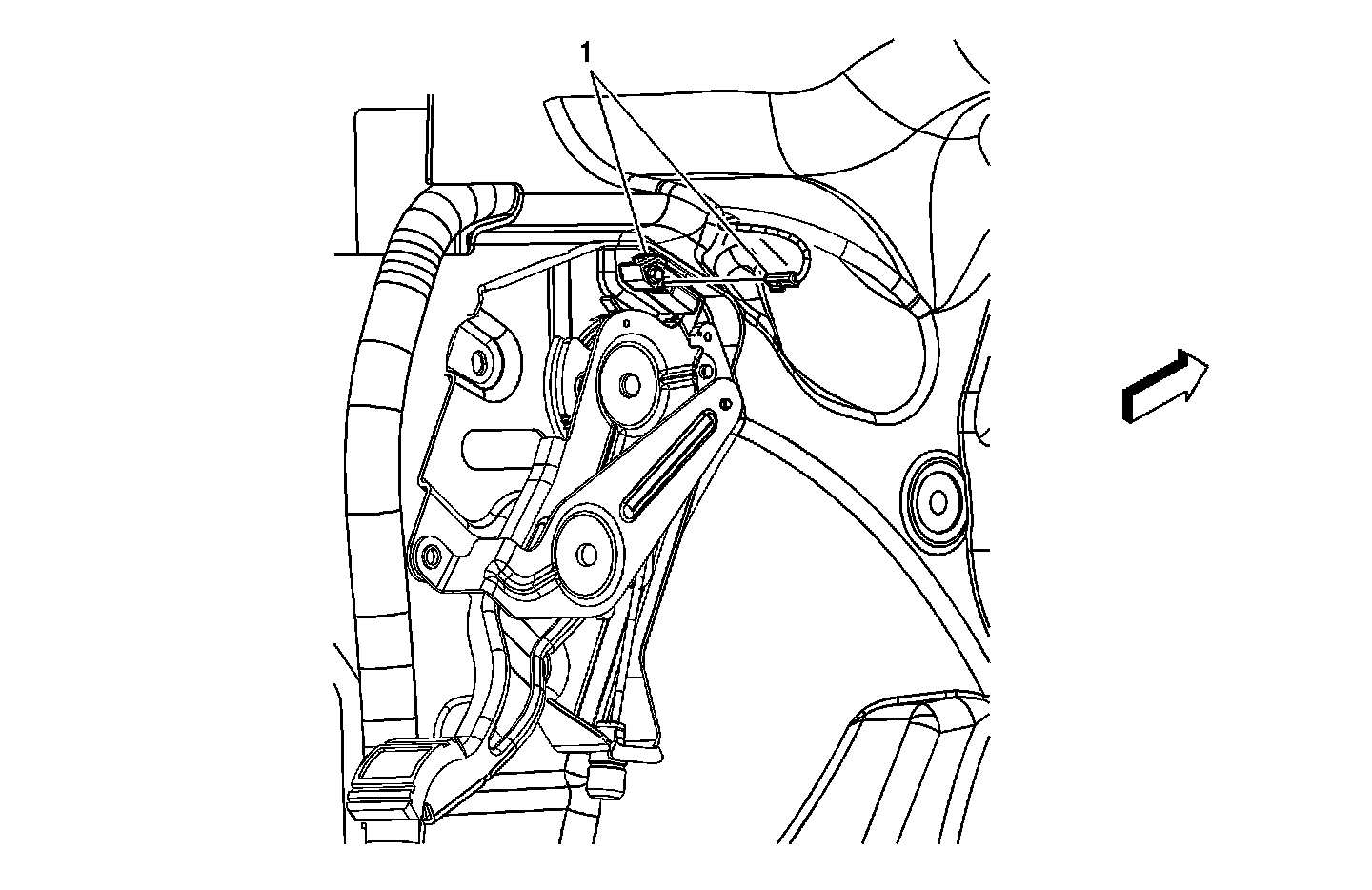

Park Brake Switch:

Under the Left Side of the Instrument Panel
1 - Park Brake Switch

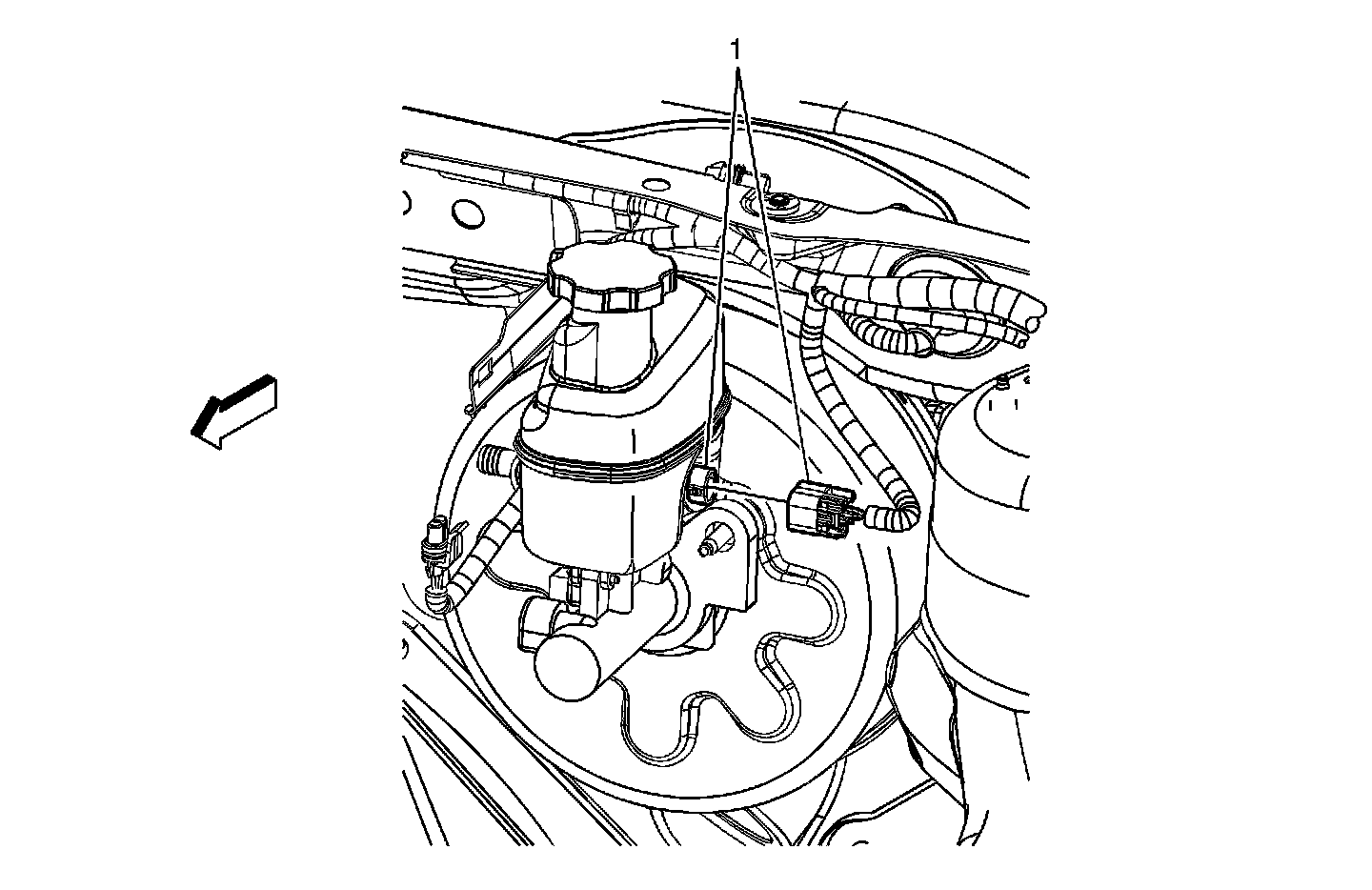

Brake Fluid Level Switch:

Upper Left Rear of Engine Compartment
1 - Brake Fluid Level Switch
