Weatherstrip Replacement - Front Door Opening

Weatherstrip Replacement - Front Door Opening

Removal Procedure




1. Remove the windshield garnish molding.
2. Remove the center pillar trim.

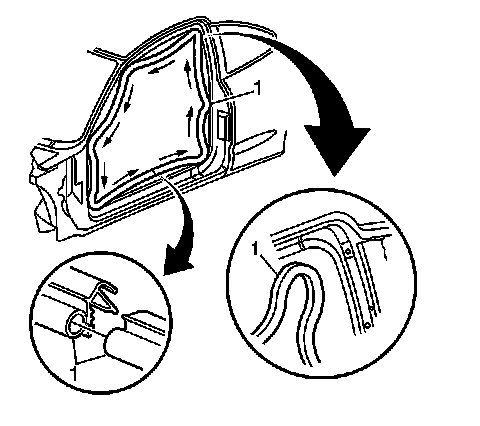

3. Pull the front door opening weatherstrip (1) loose and remove it from the vehicle.

Installation Procedure




1. Apply weatherstrip adhesive GM P/N 12345096 (Canadian P/N 993365), or equivalent, to the front door opening weatherstrip (1).
2. Install the front door opening weatherstrip (1) onto the front door pinch-weld, pressing into place until fully seated.
3. Install the windshield garnish molding.
4. Install the center pillar trim.
