Seat Cushion Inner Panel Replacement - Rear

SEAT CUSHION INNER PANEL REPLACEMENT - REAR

REMOVAL PROCEDURE
1. Remove the seat from the vehicle.
2. Remove the center seat belt buckles.

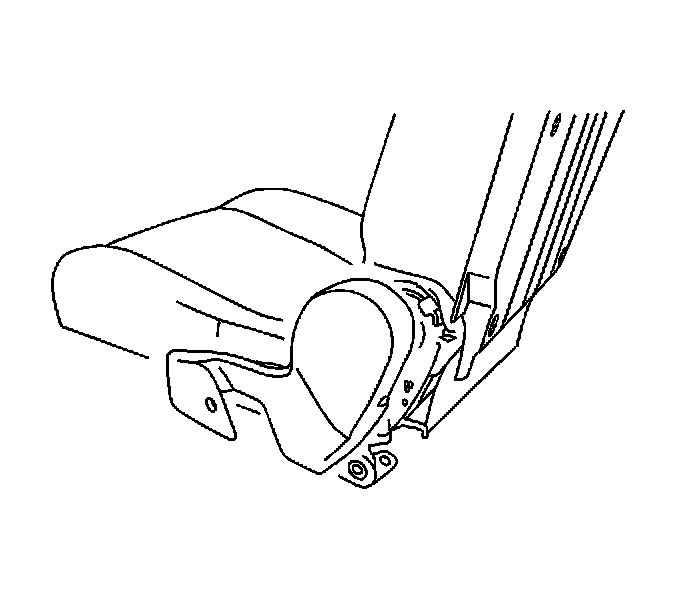

3. Remove the inner panel fasteners from the seat cushion.




4. Remove the inner panel by pulling straight off.

INSTALLATION PROCEDURE




1. Install the seat cushion inner panel.
2. Install the inner panel fasteners to the seat cushion.
3. Install the center seat belt buckles.
4. Install the seat to the vehicle.
