Seat Back Latch Release Cable Replacement - Rear

SEAT BACK LATCH RELEASE CABLE REPLACEMENT - REAR

REMOVAL PROCEDURE
1. Remove the seat back bolster assembly.

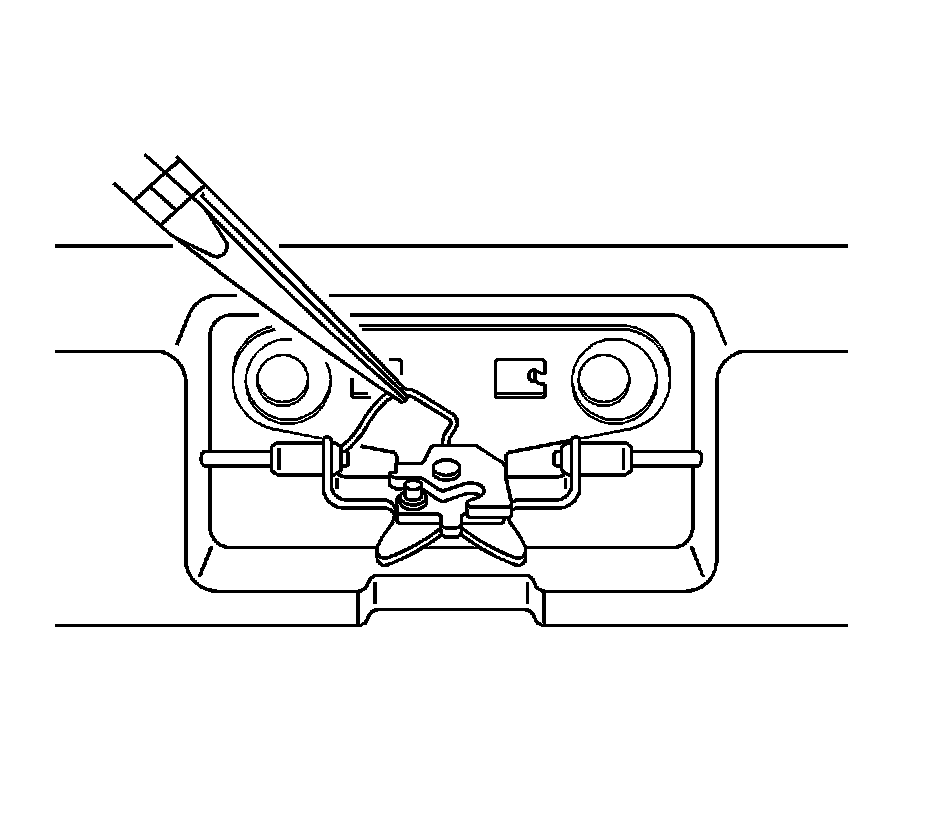

2. Remove the cable from the bolster assembly.




3. Remove the cable from the latch assembly.

INSTALLATION PROCEDURE




1. Install the cable to the latch assembly.




2. Install the cable to the seat back bolster assembly.
3. Install the bolster assembly.
