Seat Back Bolster Replacement - Rear Split Folding

SEAT BACK BOLSTER REPLACEMENT - REAR SPLIT FOLDING

REMOVAL PROCEDURE
1. Remove the rear seat cushion.
2. Remove the rear seat back.

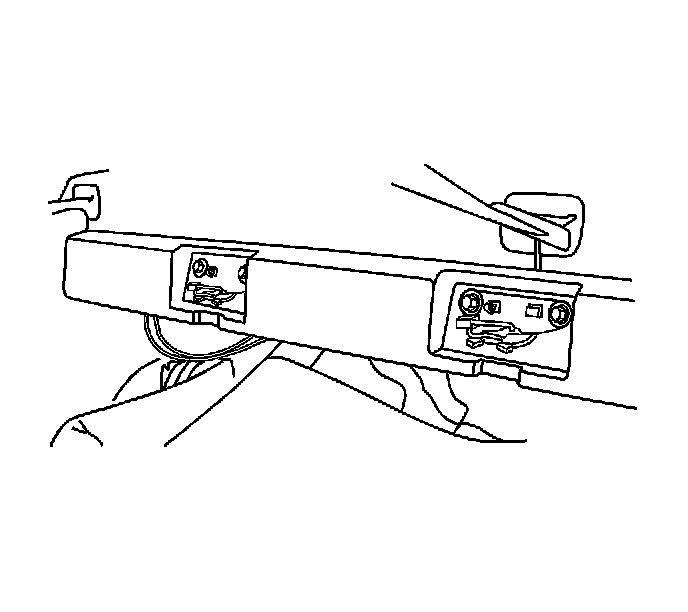

3. Remove the rear seat release cables from the shelf panel.




4. Remove the mounting fasteners from the upper seat back bolster.
5. Remove the mounting fasteners from the lower seat back bolster.
6. Remove the seat back bolster assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the seat back bolster assembly in the vehicle.
2. Install the mounting fasteners to the lower seat back bolster.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fasteners to 35 N.m (26 lb ft).

3. Install the mounting fasteners to the upper seat back bolster.

Tighten the fasteners to 28 N.m (20 lb ft).




4. Install the rear seat release cables to the shelf panel.
5. Install the rear seat back.
6. Install the rear seat cushion.
