Trim Panel Replacement - Rear Quarter Lower (Extended Sedan)

Trim Panel Replacement - Rear Quarter Lower (Extended Sedan)

Removal Procedure

1. Remove the rear window shelf panel.
2. Remove the rear carpet retainer.
3. Remove the upper rear quarter trim panel.
4. Move the rear seat forward and fold the seat forward.




5. Remove the seat belt anchor from the rear seat.




6. Remove the rear spare tire cover.
7. Remove the rear sill plate.

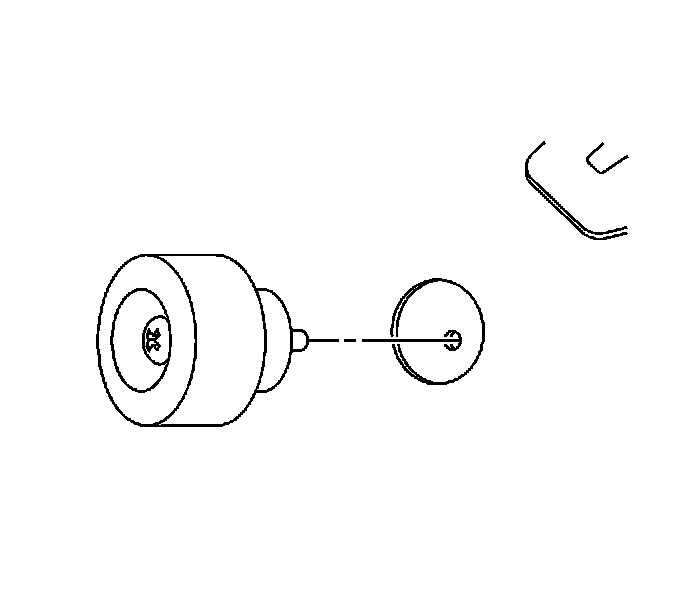

8. Remove the seat back bumper from the rear lower quarter trim panel.

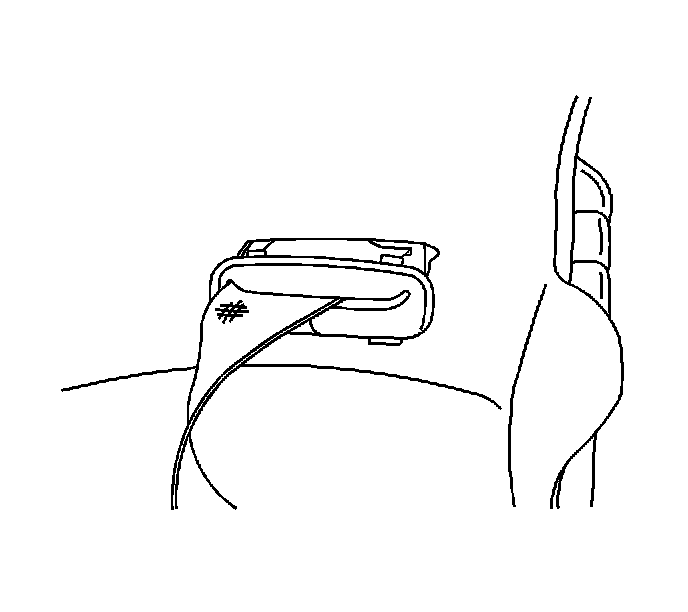

9. Remove the shoulder belt bezel from the quarter trim panel.

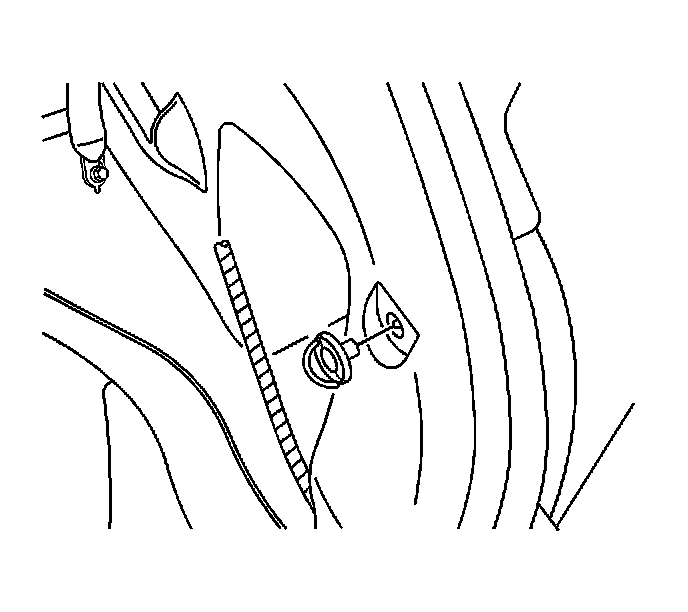

10. Remove the cargo net anchor from the quarter trim panel.

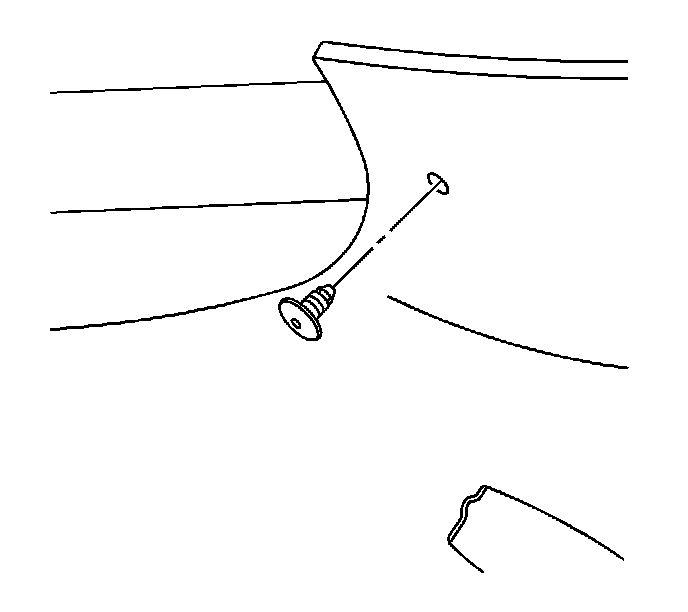

11. Remove the upper fastener from the quarter trim panel.

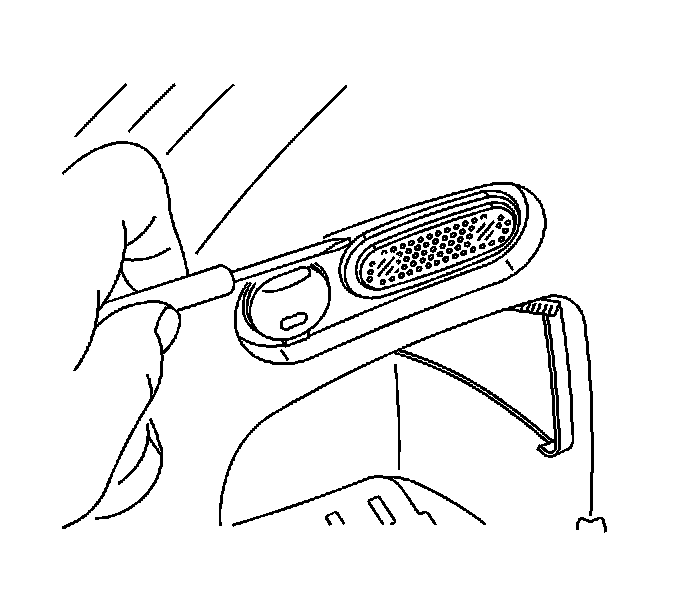

12. If you are removing the quarter trim panel from the driver side, remove the rear cargo light.




13. If you are removing the quarter trim panel from the driver side, disconnect the rear outlet accessory socket.
14. Starting at the top, remove the trim panel by pulling straight off.

Installation Procedure




1. Install the lower quarter trim panel to the vehicle.
2. Connect the rear outlet accessory socket.




3. Install the rear cargo light.




4. Install the upper fastener to the quarter trim panel.




5. Install the cargo net anchor to the quarter trim panel.




6. Install the shoulder belt bezel to the quarter trim panel.




7. Install the seat back bumper to the quarter trim panel.
8. Install the rear sill plate.
9. Install the spare tire cover.




10. Install the seat belt anchor to the rear seat.
11. Move the rear seat to the original position.
12. Install the quarter trim panel.
13. Install the rear carpet retainer.
14. Install the rear window shelf panel.
