Garnish Molding Replacement - Center Pillar Lower

Garnish Molding Replacement - Center Pillar Lower

Removal Procedure

1. Disable the roof rail SIR system, if equipped. Refer to SIR Disabling and Enabling Zone 8 in Restraint Systems.
2. Remove the upper center garnish molding.
3. Remove the front carpet retainer.
4. Remove the rear carpet retainer.

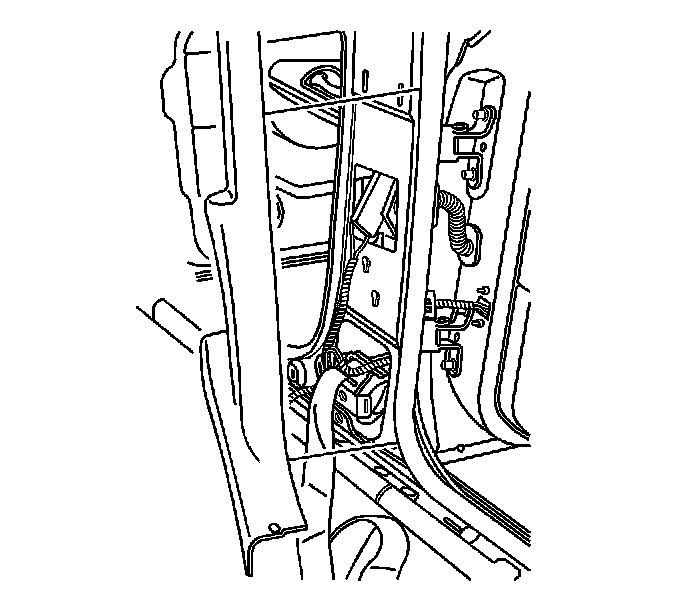

5. Beginning at the top, remove the garnish molding by pulling forward.

Installation Procedure




1. Beginning at the bottom, install the garnish molding.
2. Install the rear carpet retainer.
3. Install the front carpet retainer.
4. Install the upper center garnish molding.
5. Enable the roof rail SIR system. Refer to SIR Disabling and Enabling Zone 8 in Restraint Systems.
