Console Trim Plate Replacement - Console Rear (With RPO Code UK6)

TRIM PLATE REPLACEMENT - CONSOLE REAR (With RPO Code UK6)

REMOVAL PROCEDURE
1. Remove the console armrest.

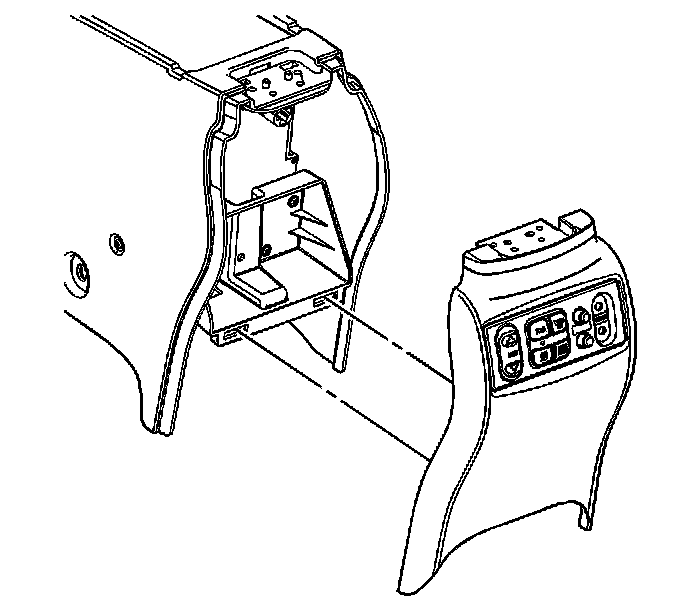

2. Remove the console rear trim plate.
3. Remove the rear seat audio control wire harness connector.
4. Remove the rear seat audio control.

INSTALLATION PROCEDURE
1. Install the rear seat audio control.
2. Install the rear seat audio control wire harness connector.




3. Install the console rear trim plate.
4. Install the console armrest.
