Bracket Replacement - Console Floor (UK6)

Bracket Replacement - Console Floor (UK6)

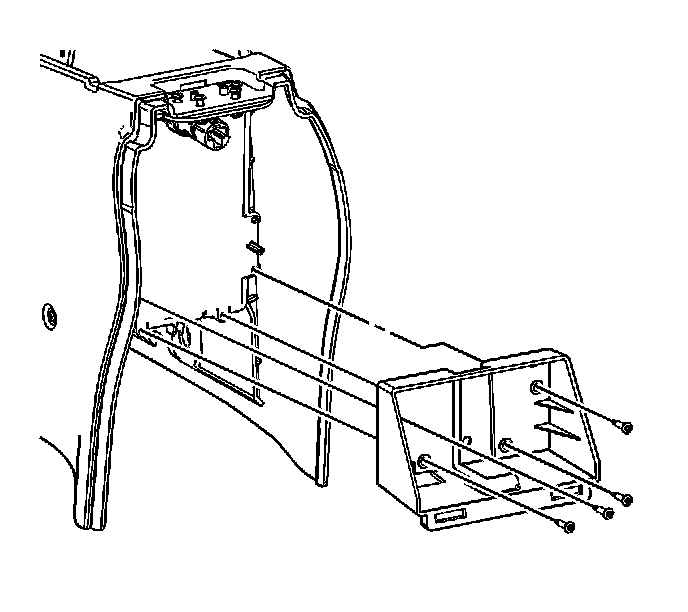

Removal Procedure

1. Remove the console rear trim plate.
2. Remove the console bracket screws.




3. Remove the console bracket.

Installation Procedure




1. Install the console bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the console bracket screws.

Tighten the screws to 1 N.m (10 lb in).

3. Install the console rear trim plate.
