Trunk / Liftgate Switch: Diagrams

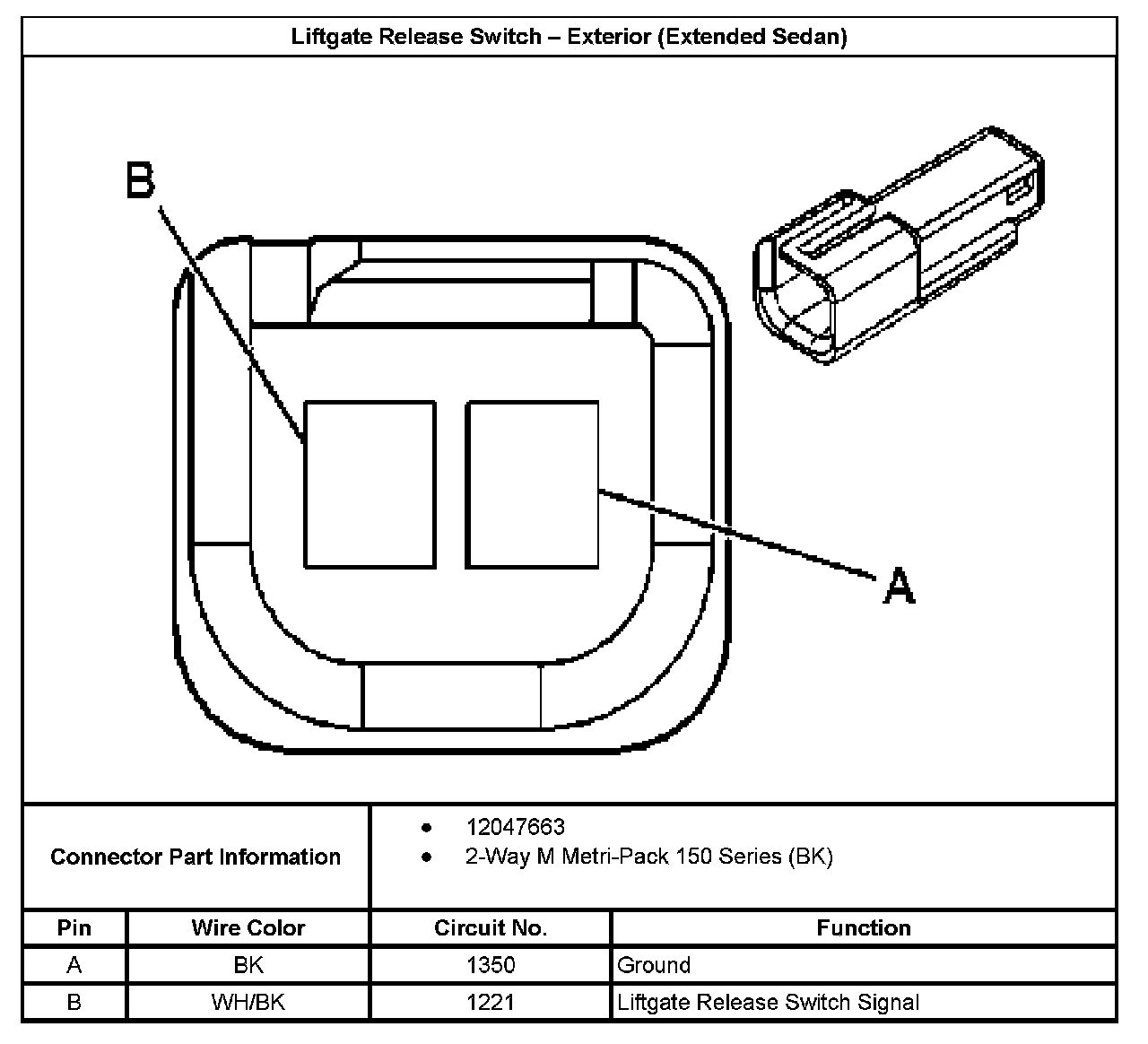

Liftgate Release Switch - Exterior (Extended Sedan):

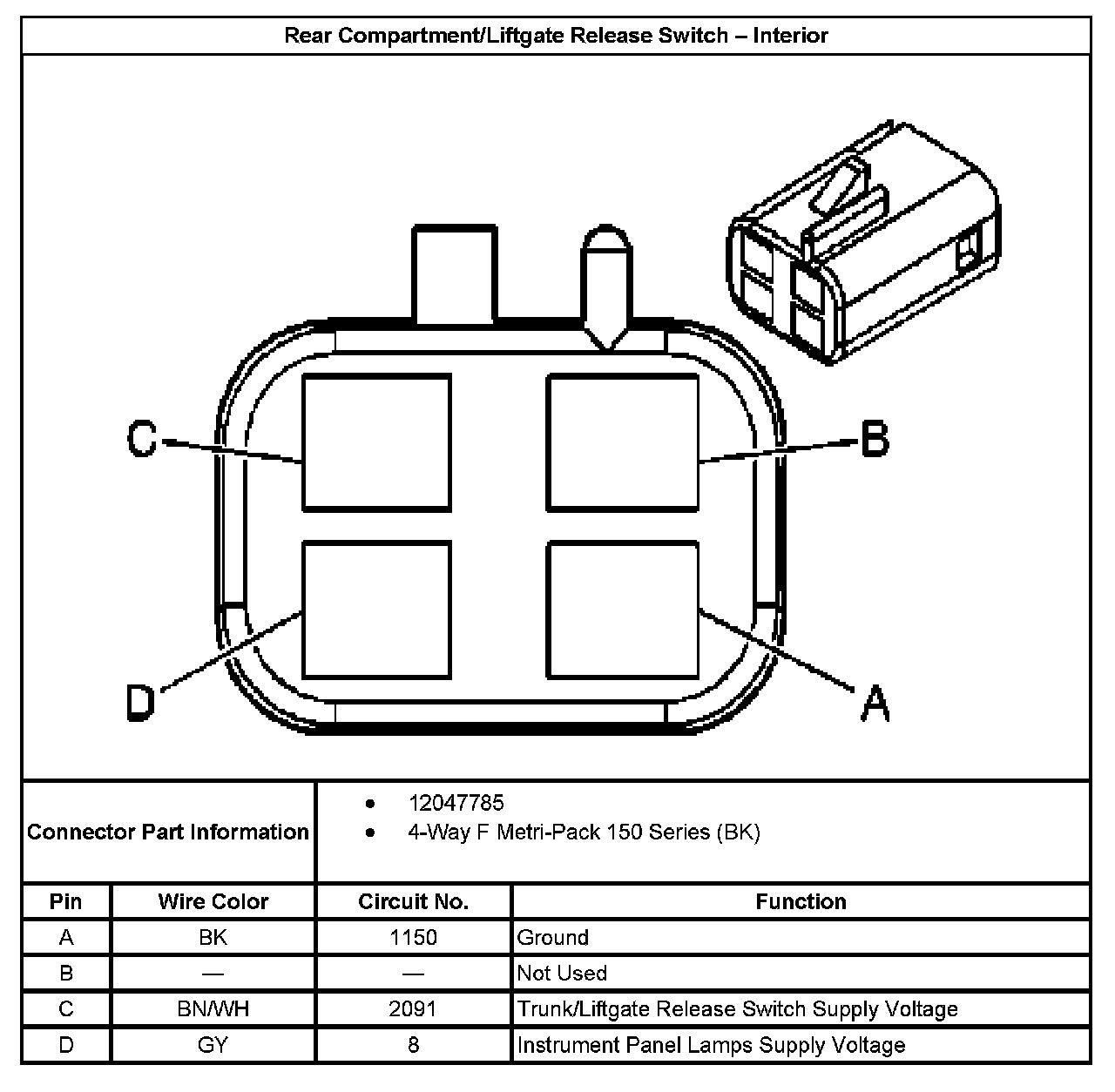

Rear Compartment/Liftgate Release Switch - Interior:
